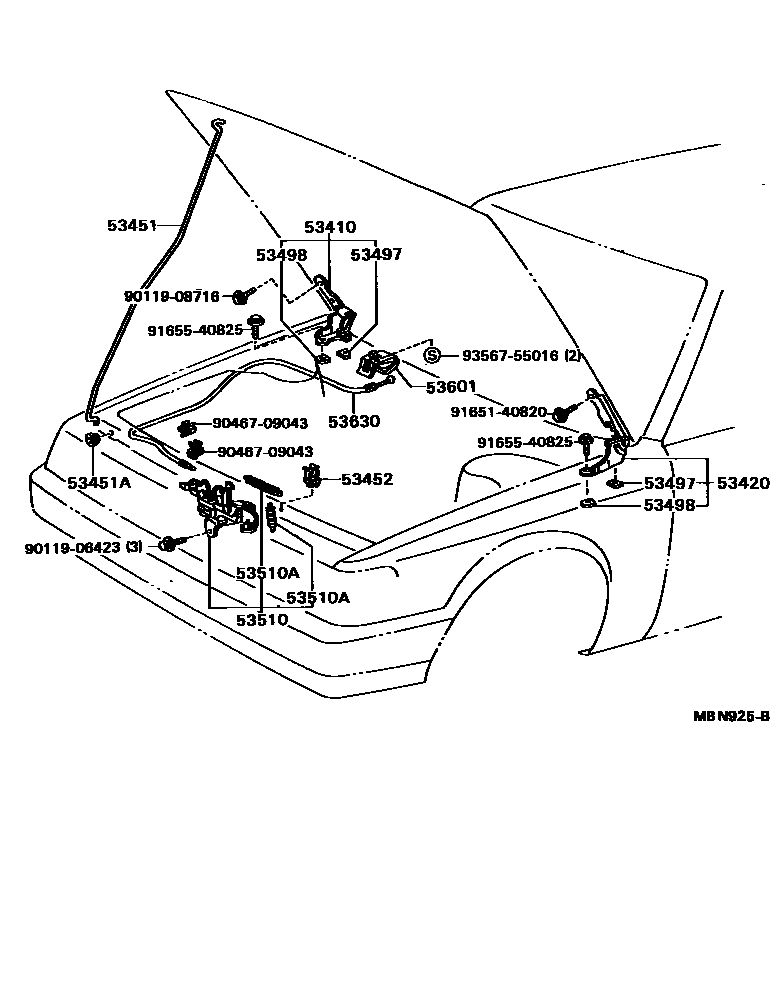

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32031iCV20,SV2#,VZV20198808-199007

53420HINGE ASSY, HOOD, LH

main53420-32031iCV20,SV2#,VZV20198808-199007

53451ROD, HOOD SUPPORT

main53451-32040iCV20,SV2#,VZV20198808-199007

sub53451-32030

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iCV20,SV2#,VZV20198808-199007

53452HOLDER, HOOD STAY

main53452-32010iCV20,SV2#,VZV20198808-199007

53497PAD, HOOD HINGE, NO.1

main53497-17011iCV20,SV2#,VZV20..SED198808-199007

53498PAD, HOOD HINGE, NO.2

main53498-12011×2iCV20,SV2#,VZV20..SED198808-199007

53510LOCK ASSY, HOOD

main53510-32040iCV20,SV2#,VZV20..SED198808-199007

main53510-32060iCV20,SV2#,VZV20..HT198808-199007

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iCV20,SV2#,VZV20198808-199007

main90506-20054iCV20,SV2#,VZV20198808-199007

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-12iCV20,SV2#,VZV20198808-198809

MAROON,TRIM3#

sub53601-20060

main53601-10020-13iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

sub53601-20060

main53601-10020-24iCV20,SV2#,VZV20198808-198809

DARK BLUE,TRIM8#

sub53601-20060

main53601-10020-D0iCV20,SV2#,VZV20198809-199007

MAROON,TRIM3#

sub53601-20060

main53601-10020-J0iCV20,SV2#,VZV20198809-199007

DARK BLUE,TRIM8#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32050iCV20,SV2#,VZV20198808-199007

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

9165140820

main91651-40820

9165540825

main91655-40825

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
