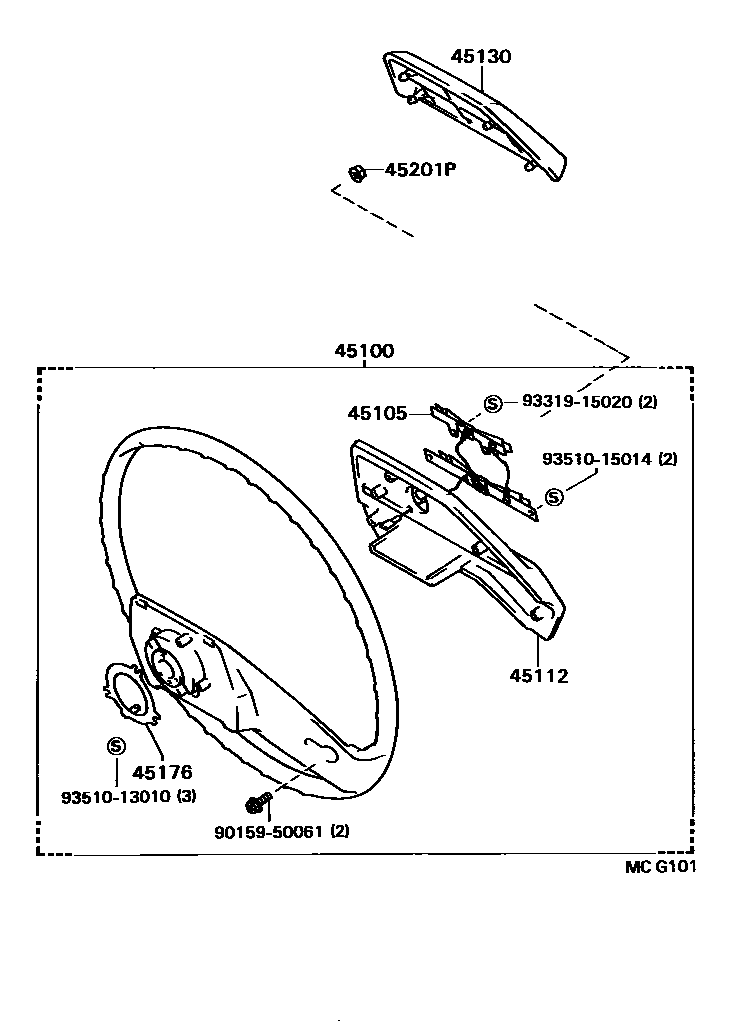

STEERING WHEEL

0001 1 0002 1 0003 1

45100WHEEL ASSY, STEERING

main45100-32030-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

main45100-32030-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

main45100-32030-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

main45100-32090-02iSV21..HT..VX199001-199003

main45100-32090-03iSV21..HT..VX198906-199007

main45100-32090-04iSV21..GT198808-199007

DARK BLUE,TRIM8#

main45100-32130-02iSV22..SED..VL198905-199007

main45100-32130-03iSV22..XT199001-199007

main45100-32130-04iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX198808-199007

DARK BLUE,TRIM8#

main45100-32140-02iVZV20198808-199007

MAROON,TRIM3#

main45100-32140-03iVZV20198808-199007

MEDIUM GRAY,TRIM1#

main45100-32140-04iVZV20198808-199007

DARK BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32040iSV22..SED..(LT,VC,VL,XT)198808-199007

main45105-32070iSV22..XT198808-199001

main45105-32080iSV21..GT198808-199007

45112PAD, STEERING WHEEL

main45112-32020-02iSV22..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

main45112-32020-03iSV22..SED..(LT,VC,VL,XT)198808-199007

MEDIUM GRAY,TRIM1#

main45112-32020-04iSV22..SED..(LT,VC,VL,XT)198808-199007

DARK BLUE,TRIM8#

45130BUTTON ASSY, HORN

main45130-32060-02iSV22..LT,XT198808-199007

MAROON,TRIM3#

main45130-32060-13iSV22..LT,XT198808-199007

MEDIUM GRAY,TRIM1#

main45130-32060-14iSV22..LT,XT198808-199007

DARK BLUE,TRIM8#

main45130-32070-02iSV22..SED..(VC,VL)198808-199007

MAROON,TRIM3#

main45130-32070-13iSV22..SED..(VC,VL)198808-199007

MEDIUM GRAY,TRIM1#

main45130-32070-14iSV22..SED..(VC,VL)198808-199007

DARK BLUE,TRIM8#

main45130-32130-02iSV21..GT198808-199007

MAROON,TRIM3#

main45130-32130-03iSV21..GT198808-199007

MEDIUM GRAY,TRIM1#

main45130-32130-04iSV21..GT198808-199007

DARK BLUE,TRIM8#

main45130-32170-02iSV22..XT198808-199001

main45130-32170-03iSV22..XT198808-199001

main45130-32170-04iSV22..XT198808-199001

main45130-32180-02iSV22..SED..VL198905-199007

main45130-32180-03iSV22..VE,VR;SV22..HT..VL;CV20,SV21,25..VE,VL,VR,VX198808-199007

MEDIUM GRAY,TRIM1#

main45130-32180-04iSV22..SED..VL198808-198905

main45130-32220-02iSV21..HT..VX198906-199007

main45130-32220-03iSV21..HT..VX198906-199007

main45130-32220-04iSV21..HT..VX198906-199007

main45130-32230-02iVZV20198808-199007

MAROON,TRIM3#

main45130-32230-03iVZV20198808-199007

MEDIUM GRAY,TRIM1#

main45130-32230-04iVZV20198808-199007

DARK BLUE,TRIM8#

45176RING, HORN CONTACT

main45176-32020iSV22..SED..(LT,VC,VL,XT)198808-199007

45201PNUT, STEERING WHEEL SET

main90179-12086iCV20,SV2#,VZV20198808-199007

9015950061

main90159-50061

9331915020

main93319-15020

9351013010

main93510-13010

9351015014

main93510-15014

10 parts on this diagram · 3 diagrams in section
