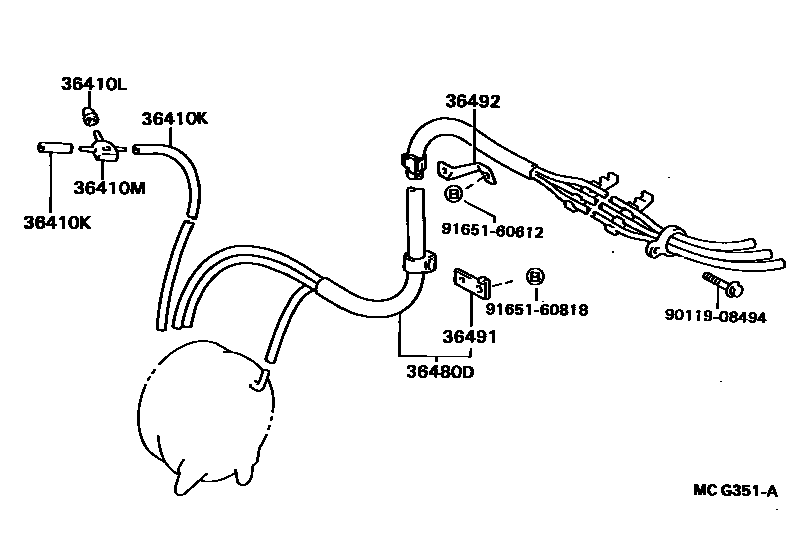

TRANSFER VACUUM PIPING

36410KHOSE, VACUUM (FOR TRANSFER VACUUM)

main90999-92002iSV25..5F198808-199007

main90999-92003iSV25..5F198808-199007

36410LPLUG (FOR TRANSFER VACUUM)

main90339-03005iSV25..5F198808-199007

36410MWAY, 3 (FOR TRANSFER VACUUM)

main90413-04005iSV25..5F198808-199007

36480DTUBE ASSY, TRANSFER VACUUM

main36480-32021iSV25..5F198808-199007

36491CLAMP, TRANSFER VACUUM TUBE, N0.1

main36491-32010iSV25..5F198808-199007

36492CLAMP, TRANSFER VACUM TUBE, NO.2

main36492-32010iSV25..5F198808-199007

9011908494

main90119-08494

9165160612

main91651-60612

9165160818

main91651-60818

9 parts on this diagram · 1 diagram in section
