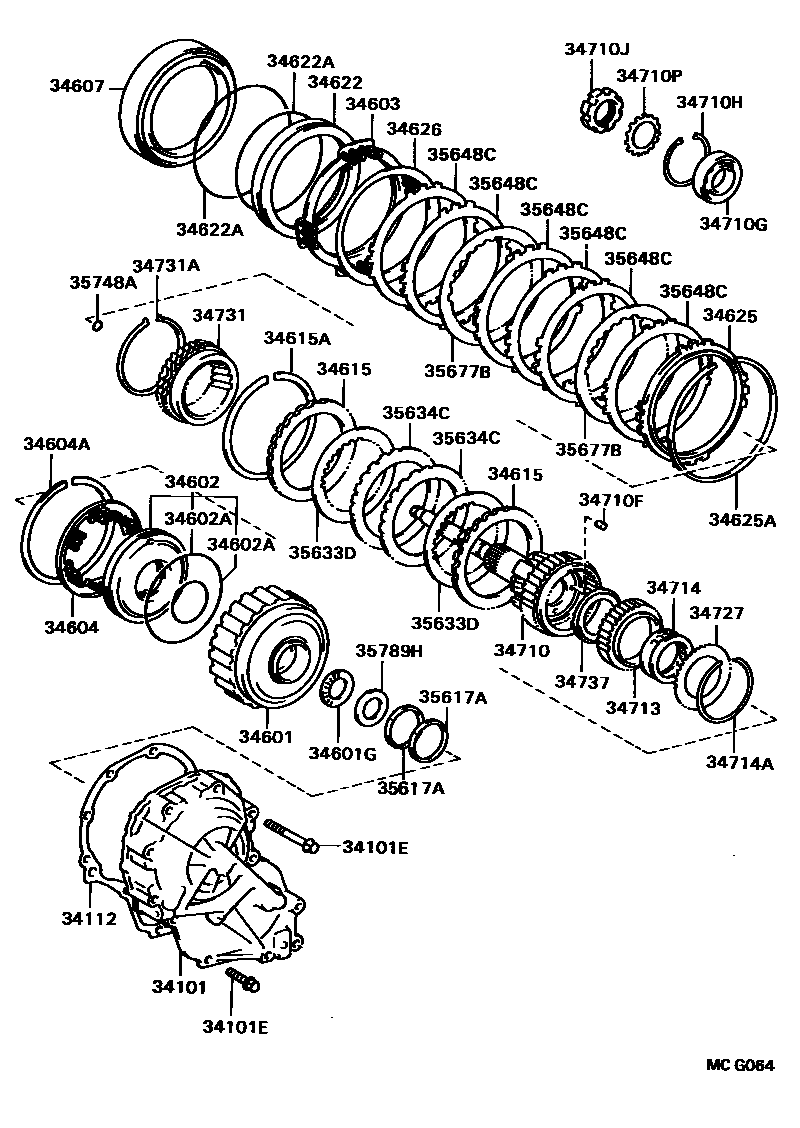

OVERDRIVE GEAR (ATM)

0001 1 0002 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-20021iCV20,SV21,22,VZV20..4FC198808-199007

main34101-32040iSV25..4FC198808-199007

sub34101-32041

sub34115-20021

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08055iCV20,SV21,22,VZV20..4FC198808-199007

main90105-08056iCV20,SV21,22,VZV20..4FC198808-199007

main90105-08103iCV20,SV2#,VZV20..4FC198808-199007

main90105-08167iSV25..4FC198808-199007

34112GASKET, OVERDRIVE CASE

main34112-20010iCV20,SV21,22,VZV20..4FC198808-199007

sub34112-32030

main34112-32020iSV25..4FC198808-199007

sub34112-32040

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-20010iCV20,SV21,22,VZV20..4FC198808-199007

main34601-32021iSV25..4FC198808-199007

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28009iCV20,SV2#,VZV20..4FC198808-199007

sub90374-28013

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-20010iCV20,SV21,22,VZV20..4FC198808-199007

main34602-32020iSV25..4FC198808-199007

main34602-32030iCV20,SV22..4FC198808-199005

sub34602-20010

sub35634-20010

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iCV20,SV2#,VZV20..4FC198808-199007

main90301-57188iSV21,25,VZV20..4FC..(GT,PRO,VL,VR,XT,ZE)198810-199005

INNER

main90301-99016iCV20,SV2#,VZV20..4FC198808-199007

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20010iSV21,25,VZV20..4FC..(GT,PRO,VL,VR,XT,ZE)198808-199007

main34603-32020iCV20,SV21,22..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-20010iCV20,SV21,22,VZV20..4FC198808-199007

main34604-32010iSV25..4FC198808-199007

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99051iCV20,SV21,22,VZV20..4FC198808-199007

main90521-99060iSV25..4FC198808-199007

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-20010iSV21,VZV20..4FC..(GT,PRO)198808-199007

main34607-32010iSV25..4FC198808-199007

main34607-32020iCV20,SV21,22..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

34615FLANGE, OVERDRIVE CLUTCH

main34615-20010iCV20,SV21,22,VZV20..4FC198808-199007

main34615-32010iSV25..4FC198808-199007

sub34615-33020

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iCV20,SV21,22,VZV20..4FC198808-199007

main90521-99058iSV25..4FC198808-199007

34622PISTON, OVERDRIVE BRAKE

main34622-20010iSV21,25,VZV20..4FC..(GT,PRO,VL,VR,XT,ZE)198808-199007

main34622-32020iCV20,SV21,22..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043iCV20,SV2#,VZV20..4FC198808-199007

main90301-99044iSV21,25,VZV20..4FC..(GT,PRO,VL,VR,XT,ZE)198808-199007

main90301-99057iCV20,SV21,22..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-20010iCV20,SV21,22,VZV20..4FC198808-199007

main34625-32020iSV25..4FC198808-199007

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99050iCV20,SV21,22,VZV20..4FC198808-199007

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-20011iCV20,SV2#,VZV20..4FC198808-199007

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-20011iSV21..4FC198808-198908

sub34710-20021

sub35432-20081

sub35432-20091

sub35432-20141

sub35432-32051

main34710-20021iCV20,SV21,22,VZV20..4FC198908-199007

sub34710-20022

main34710-32030iSV25..4FC198808-199001

sub34710-32031

main34710-32031iSV25..4FC199001-199007

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40024iCV20,SV21,22,VZV20..4FC198808-199007

main90363-40039iSV25..4FC198808-199007

sub90363-40053

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-76003iCV20,SV21,22,VZV20..4FC198808-199007

main90521-78003iSV25..4FC198808-199007

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40002iCV20,SV21,22,VZV20..4FC198808-198906

sub90179-40005

main90179-40005iSV25..4FC198808-199007

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001iCV20,SV2#,VZV20..4FC198808-199007

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iCV20,SV2#,VZV20..4FC198808-199007

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32010iCV20,SV21,22,VZV20..4FC198808-199007

main34714-32021iSV25..4FC198808-199007

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002iCV20,SV2#,VZV20..4FC198808-199007

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iCV20,SV21,22,VZV20..4FC198808-199007

main34727-32020iSV25..4FC198808-199007

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32010iCV20,SV21,22,VZV20..4FC198808-199007

main34731-32021iSV25..4FC198808-199007

sub34731-32022

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99008iCV20,SV21,22,VZV20..4FC198808-199007

main90521-99059iSV25..4FC198808-199007

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-20011iCV20,SV21,22,VZV20..4FC198808-199007

main34737-32020iSV25..4FC198808-199007

sub34737-33010

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iCV20,SV2#,VZV20..4FC198808-199007

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010iCV20,SV2#,VZV20..4FC198808-199007

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34615-20010iSV25..4FC198808-199007

main35634-20010iSV21,VZV20..4FC..(GT,PRO)198808-199007

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-20010iCV20,SV21,22..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main35648-32040iSV25..4FC198808-199007

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-20010iCV20,SV21,22,VZV20..4FC198808-199007

sub35677-33070

main35677-32070iSV25..4FC198808-199007

sub35677-33010

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010iCV20,SV2#,VZV20..4FC198808-199007

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020iCV20,SV2#,VZV20..4FC198808-199007

38 parts on this diagram · 2 diagrams in section
