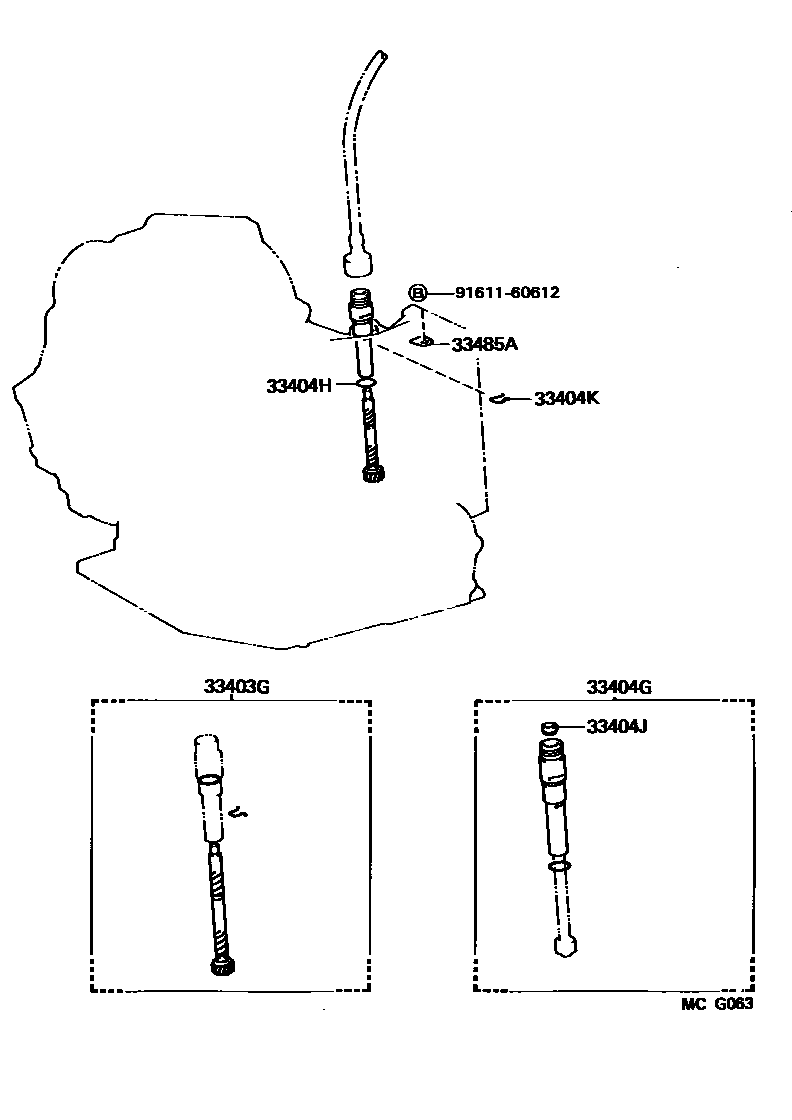

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39096iCV20,SV22..4FC198808-199007

main33403-39155iSV21..4FC198808-199007

main33403-39156iVZV20..4FC198808-199007

main33403-39225iSV25..4FC198808-199007

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iSV25..4FC198808-199007

main33404-32010iCV20,SV21,22..4FC198808-199007

main33404-32020iVZV20..4FC198808-199007

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iCV20,SV21,22,VZV20..4FC198808-199007

main96711-24030iSV25..4FC198808-199007

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCV20,SV2#,VZV20..4FC198808-199007

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCV20,SV2#,VZV20..4FC198808-199007

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iCV20,SV21,22..4FC198808-199007

main33485-30020iSV25..4FC198808-199007

main33485-32010iVZV20..4FC198808-199007

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
