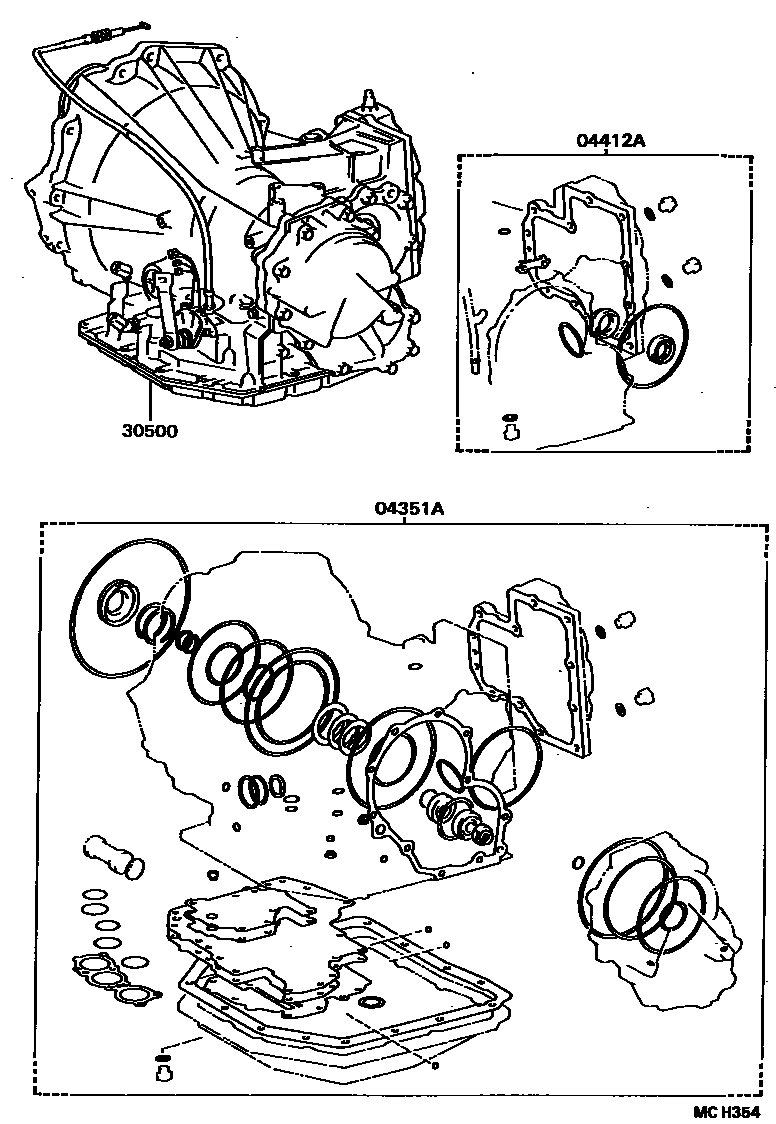

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iCV20,SV22..4FC198808-199007

main04351-20090iSV21,VZV20..4FC198808-199007

main04351-32060iSV25..4FC198808-199007

sub04351-32061

04412AGASKET KIT, DIFFERENTIAL CARRIER(ATM)

main04412-16020iCV20,SV21,22..4FC198808-199007

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32251iSV21..4FC..GT198808-199007

sub30500-32252

sub90105-10203

sub91642-H0822

main30500-32261iVZV20..4FC198808-199007

sub30500-32262

sub90105-10203

sub91642-H0822

main30500-32320iSV21..4FC..(LUM,VE,VX,ZX)198808-199007

sub30500-32321

sub90105-10203

sub91642-H0822

main30500-32480iSV25..4FC198808-199007

sub30500-32481

main30500-32490iSV22..4FC198808-199007

sub30500-32491

sub90105-10203

sub91642-H0822

main30500-32500iCV20..4FC198808-199007

sub30500-32501

sub90105-10203

sub91642-H0822

3 parts on this diagram · 2 diagrams in section
