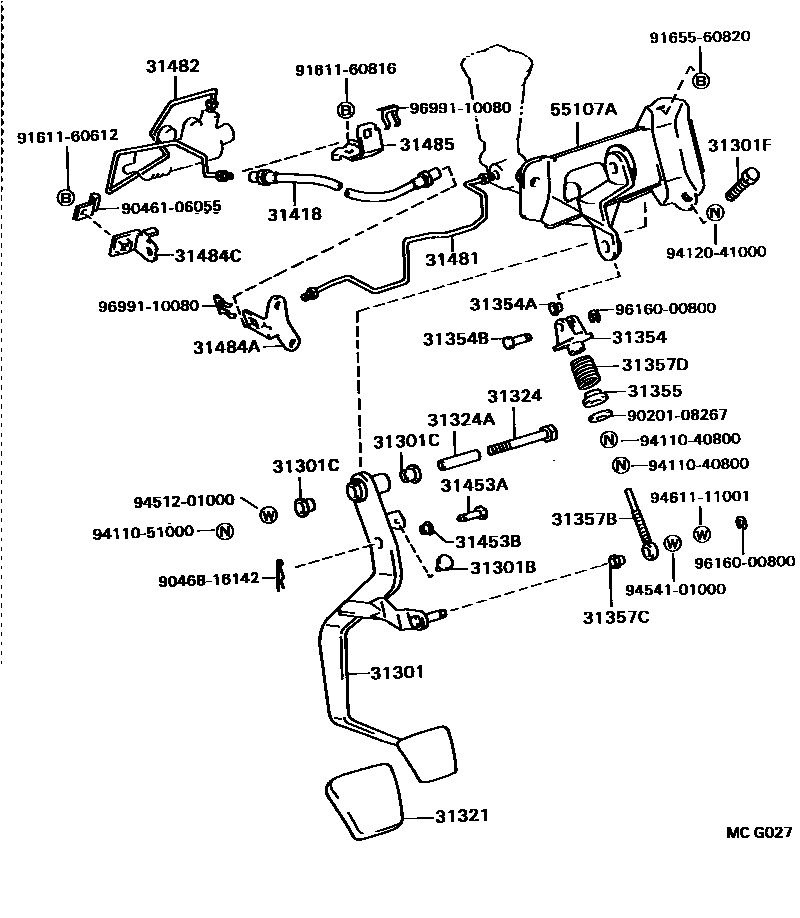

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-32050iSV22..5F198808-199007

main31301-32060iCV20,SV21,25,VZV20..5F198808-199007

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iSV22..5F198808-199007

main90541-07020iCV20,SV21,25,VZV20..5F198808-199007

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCV20,SV2#,VZV20..5F198808-199007

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCV20,SV2#,VZV20..5F198808-199007

31321PAD, CLUTCH PEDAL

main31321-14020iCV20,SV2#,VZV20..5F198808-199007

31324SHAFT, CLUTCH PEDAL

main90101-10039iSV22..5F198808-199007

main90101-10273iCV20,SV21,25,VZV20..5F198808-199007

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCV20,SV2#,VZV20..5F198808-199007

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-12010iCV20,SV21,25,VZV20..5F198808-199007

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iCV20,SV21,25,VZV20..5F198808-199007

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iCV20,SV21,25,VZV20..5F198808-199007

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20020iCV20,SV21,25,VZV20..5F198808-199007

31357BROD, OVER CENTER ADJUSTING

main31357-32020iCV20,SV21,25,VZV20..5F198808-199007

31357CBUSH(FOR OVER CENTER ADJUSTING ROD)

main90386-10019iCV20,SV21,25,VZV20..5F198808-199007

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-40015iCV20,SV21,25,VZV20..5F198808-199007

31418HOSE, CLUTCH

main90931-01048iCV20..5F198808-199007

main90931-01049iSV22..5F198808-199007

main90931-01050iSV21..5F..GT198808-199007

main90931-01055iSV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iCV20,SV2#,VZV20..5F198808-199007

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iCV20,SV2#,VZV20..5F198808-199007

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-32100iCV20,VZV20..5F198808-199007

main31481-32110iCV20,SV2#..5F198808-199007

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-32070iCV20..5F;SV21..5F..GT198808-199007

main31482-32081iSV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main31482-32090iSV22..5F198808-199007

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

main31484-32080iCV20,SV2#,VZV20..5F198808-199007

31484CBRACKET, CLUTCH TUBE, NO.1

main31484-20320iSV25,VZV20..5F198808-199007

main31484-32050iCV20,SV21,22..5F198808-199007

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31484-32090iSV21..5F..GT;CV20,SV22..5F198808-199007

main31484-32101iSV21,25,VZV20..5F..(LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-32050iSV22..5F198808-199007

main55107-32060iCV20,SV21,25,VZV20..5F198808-199007

9020108267

main90201-08267

9046106055

main90461-06055

9046816142

main90468-16142

9161160612

main91611-60612

9161160816

main91611-60816

9165560820

main91655-60820

9411040800

main94110-40800

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9454101000

main94541-01000

9461111001

main94611-11001

9616000800

main96160-00800

9699110080

main96991-10080

37 parts on this diagram · 3 diagrams in section
