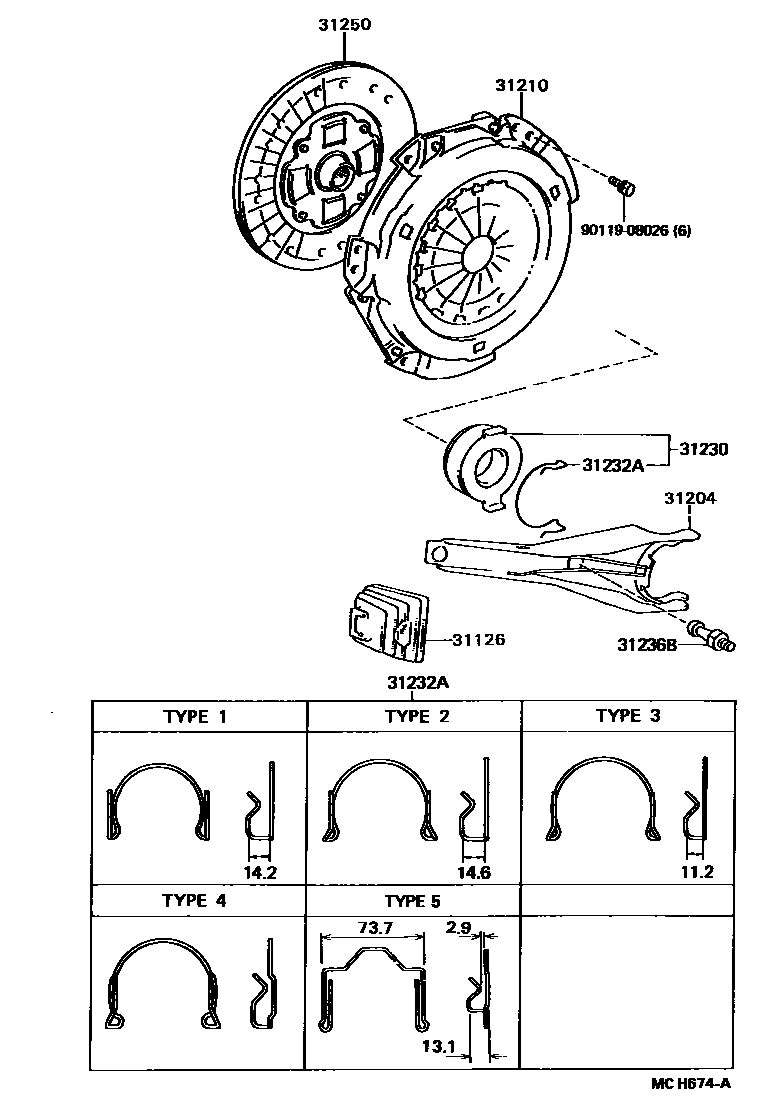

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iCV20,SV2#,VZV20..5F198808-199007

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSV25,VZV20..5F198808-199007

main31204-32010iCV20,SV21,22..5F198808-199006

31210COVER ASSY, CLUTCH

main31210-32072iCV20,SV21,VZV20..5F198808-198906

sub31210-32073

main31210-32073iCV20,SV21,VZV20..5F198906-199007

sub31210-32074

main31210-32100iSV25..5F198808-198906

sub31210-32101

main31210-32101iSV25..5F198906-199007

sub31210-32102

main31210-32120iSV22..5F198808-198906

sub31210-32121

main31210-32121iSV22..5F198906-199007

sub31210-12320

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iSV25,VZV20..5F198809-199007

main31230-32020iCV20,SV21,22..5F198808-199005

sub31230-32100

main31230-32060iCV20,SV21,22..5F199005-199007

31232ACLIP, RELEASE BEARING HUB

main31232-20020iCV20,SV21,22..5F199005-199007

main31232-20020iVZV20..5F198809-199007

TYPE 4

main31232-32010iCV20,SV21,22..5F198808-199005

main31232-32020iCV20,SV21,22..5F198808-199005

main31232-32030iCV20,SV21,22..5F198808-199007

31236BSUPPORT, RELEASE FORK

main31236-20060iSV25,VZV20..5F198808-199007

main31236-30030iCV20,SV21,22..5F198808-199005

main31236-32010iCV20,SV21,22..5F199005-199007

31250DISC ASSY, CLUTCH

main31250-20140iSV25..5F198808-199007

sub31250-20141

main31250-32026iSV22..5F198808-199007

sub31250-32027

main31250-32041iSV21..5F198808-199007

sub31250-32042

main31250-32070iVZV20..5F198808-199007

sub31250-32110

main31250-32080iCV20..5F198808-199005

sub31250-32100

main31250-32100iCV20..5F199005-199007

sub31250-32101

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
