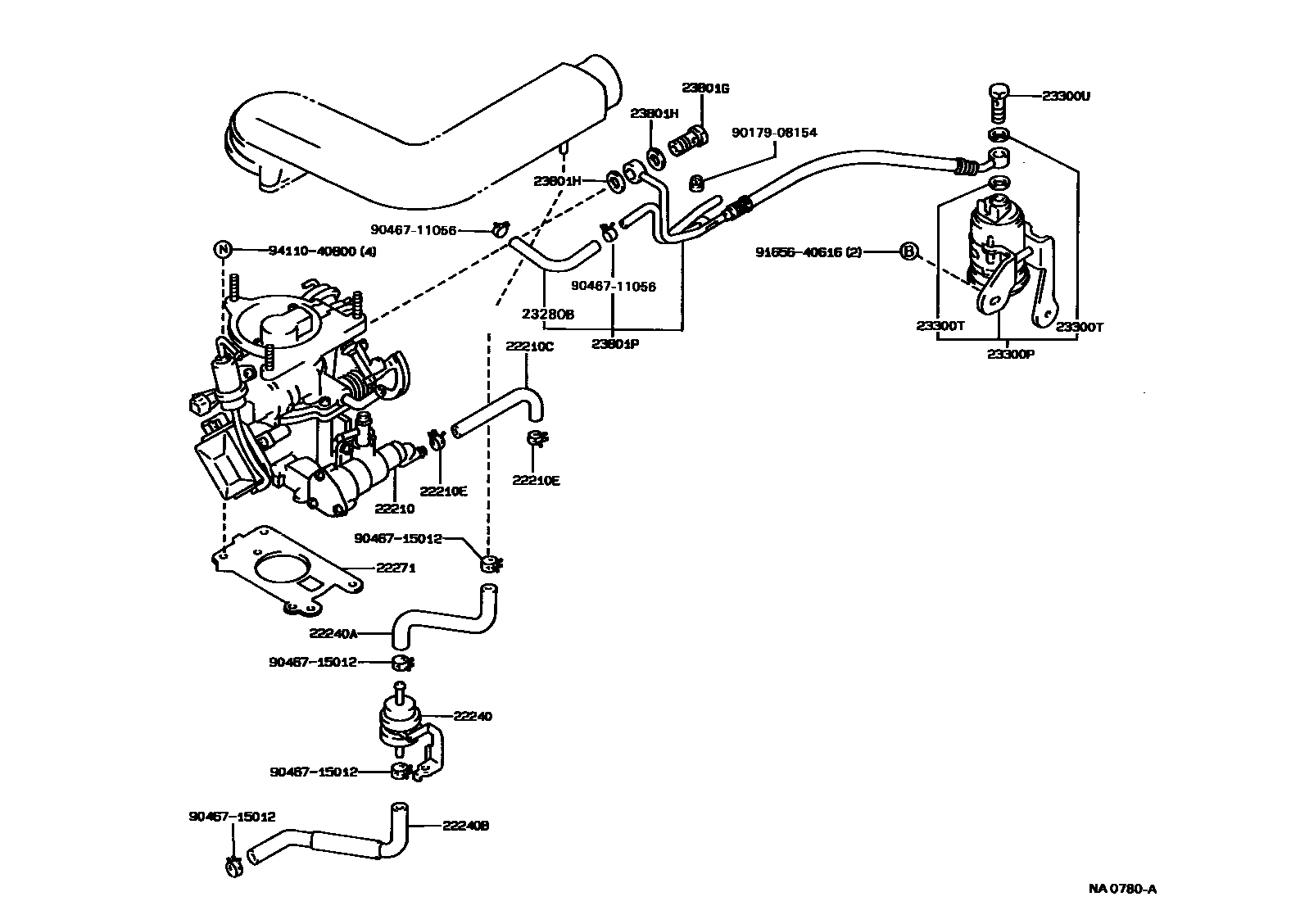

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22210BODY ASSY, THROTTLE

main22200-74010i4SFI..SV22198808-198810

sub22200-74013

main22200-74013i4SFI..SV22198810-198902

sub22200-74014

main22200-74014i4SFI..SV22198902-198904

sub22200-74015

main22200-74016i4SFI..SV22198904-199007

main22200-74020i4SFI..SV22198808-198810

sub22200-74023

main22200-74023i4SFI..SV22198810-198902

sub22200-74024

main22200-74024i4SFI..SV22198902-198904

sub22200-74025

main22200-74026i4SFI..SV22198904-199007

main22210-62040i1VZFE..VZV20198808-199007

main22210-74110i3SGE..SV21198808-199007

main22210-74190i3SFE..SV21,25..5F198808-199007

main22210-74201i3SFE..SV21..4FC198808-199007

main22210-74370i3SFE..SV25..4FC198808-199007

22210CHOSE, WATER BY-PASS, NO.1

main16264-88360i3SGE..SV21198808-199007

main16282-74030i3SFE..SV21,25198808-198911

sub16283-74010

main16283-74010i3SFE..SV21,25198911-199007

main99555-10220i4SFI..SV22198808-199007

sub99555-10300

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001i3SGE..SV21198808-199007

sub96135-51300

main90467-13050i4SFI..SV22198808-199007

sub96135-51300

22240LIMITER ASSY, VACUUM

main22240-74020i4SFI..SV22..5F198808-199007

22240AHOSE, VACUUM LIMITER, NO.1

main17345-74020i4SFI..SV22..5F198808-199007

22240BHOSE, VACUUM LIMITER, NO.2

main17346-74021i4SFI..SV22..5F198808-199007

22271GASKET, THROTTLE BODY

main22271-62020i1VZFE..VZV20198808-199007

sub22271-62030

main22271-74020i3SFE..SV21,25198808-198907

sub22271-74021

main22271-74021i3SFE..SV21,25198907-199007

sub22271-74022

main22271-74040i4SFI..SV22198808-198907

sub22271-74041

main22271-74041i4SFI..SV22198907-199007

main22271-88360i3SGE..SV21198808-199007

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62020i1VZFE..VZV20198808-199007

main23280-74020i3SGE..SV21198808-199007

main23280-74031i3SFE..SV21,25198808-199007

main23280-74060i4SFI..SV22198808-199007

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main90447-12051i3SGE..SV21198808-199007

main95333-06020i4SFI..SV22198808-199007

sub95337-06020

23300PFILTER, FUEL(FOR EFI)

main23030-79025i3S#,4SFI..SV2#198808-199007

23300TGASKET(FOR FUEL FILTER)

main90430-12005i3S#,4SFI..SV2#198808-199007

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3S#,4SFI..SV2#198808-199007

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i3S#..SV21,25198808-199007

main90401-08004i3SFE..SV21,25198909-199007

main90401-12097i4SFI..SV22198901-199007

23801HGASKET(FOR FUEL PIPE)

main90430-08005i3SGE..SV21198808-199007

*54

main90430-08009i3S#..SV21,25198808-199007

*53

sub90430-08014

main90430-12005i4SFI..SV22198808-199007

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-74021i3SFE..SV21,25198808-199007

main23801-74040i4SFI..SV22198808-199007

main23801-88360i3SGE..SV21198808-199007

9017908154

main90179-08154

9046711056

main90467-11056

9046715012

main90467-15012

9165640616

main91656-40616

9411040800

main94110-40800

20 parts on this diagram · 6 diagrams in section
