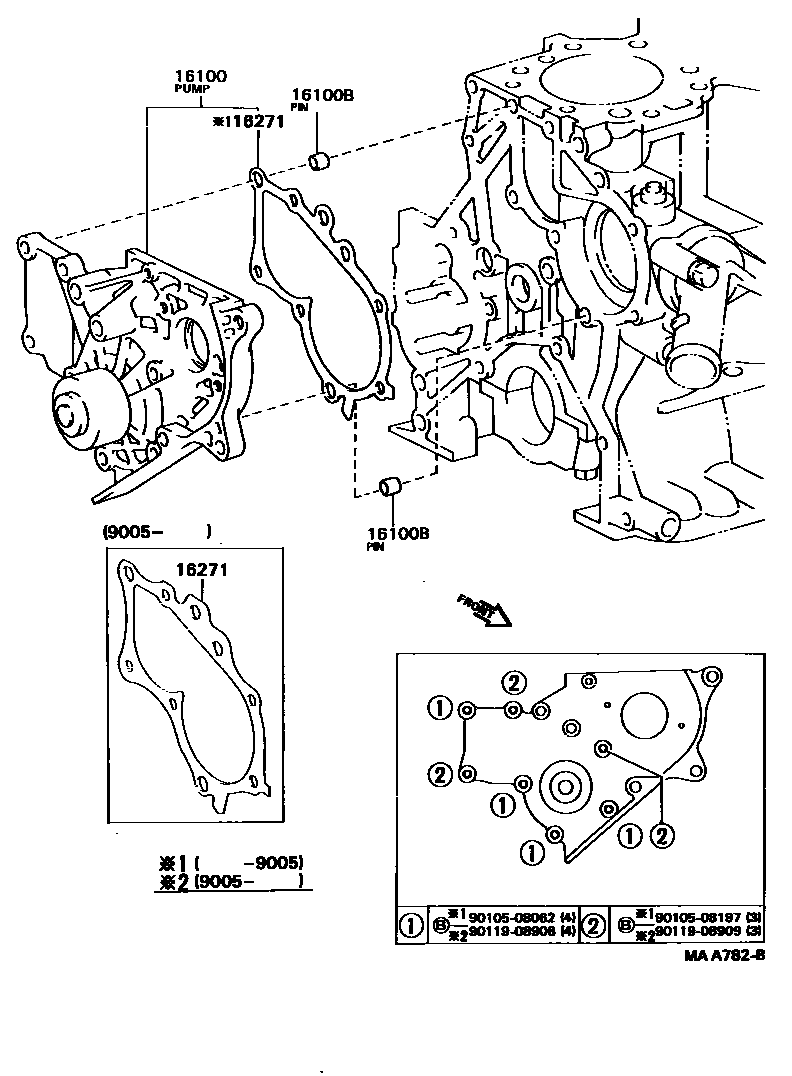

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-69085i2CT..CV20198808-198912

main16100-69206i1VZFE..VZV20198808-199007

sub16100-69305

main16100-69275i2CT..CV20198912-199005

sub16100-64H00

sub16100-64H01

main16100-69295i2CT..CV20199005-199007

sub16100-69296

main16100-79075i3SFE,4SFI..SV2#198808-199007

sub16100-79185

main16100-79095i3SGE..SV21198808-199007

sub16100-79096

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2CT..CV20198808-199007

16271GASKET, WATER PUMP

main16271-64010i2CT..CV20198808-198912

main16271-64020i2CT..CV20198912-199005

main16271-64030i2CT..CV20199005-199007

sub16271-64031

9010508062

main90105-08062

9010508197

main90105-08197

9011908908

main90119-08908

9011908909

main90119-08909

7 parts on this diagram · 4 diagrams in section
