CRANKSHAFT & PISTON

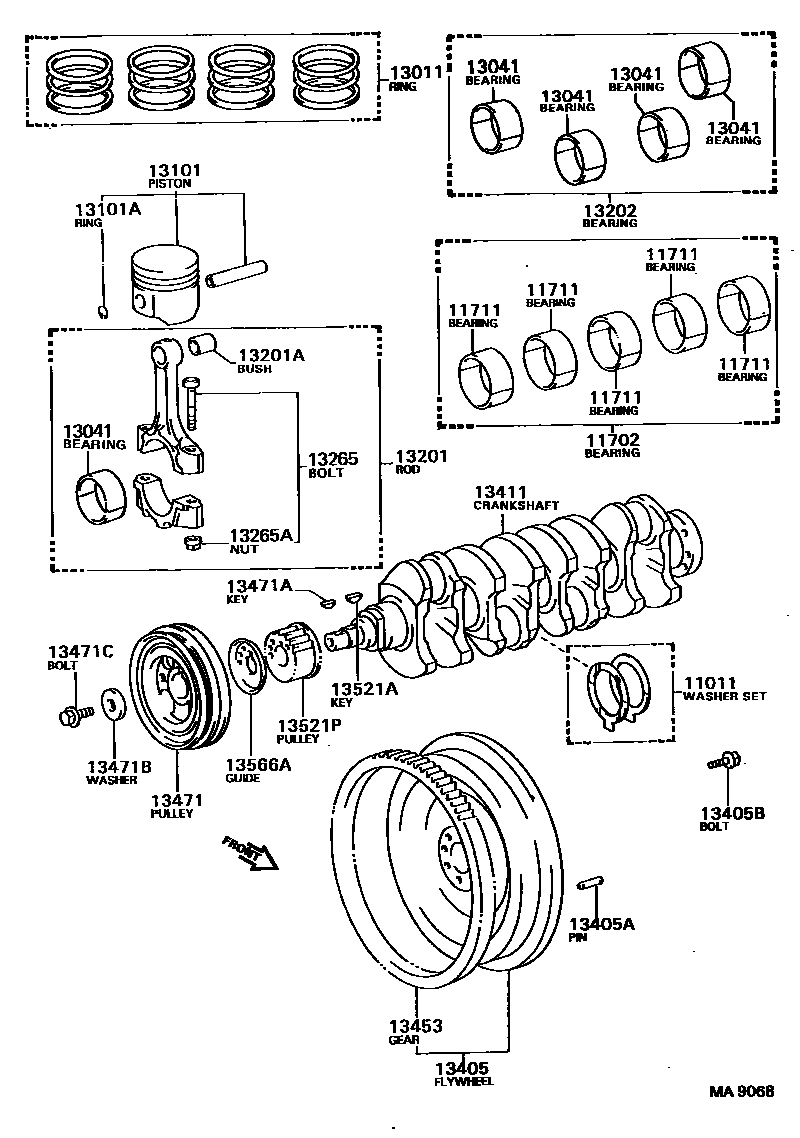

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-25010i198808-199007
main11011-62010i198808-199007
main11011-64010i198808-199007
main11012-64010i198808-199007
main11013-64010i198808-199007
11702BEARING SET, CRANKSHAFT
main11704-62010i198808-199007
sub11704-62020
main11704-63021i198808-199007
sub11704-63022
main11704-64040i198808-199007
sub11704-64070
11711BEARING, CRANKSHAFT
main11071-62010-01i198808-199007
sub11071-62020
main11071-62010-02i198808-199007
sub11071-62020
main11071-62010-03i198808-199007
sub11071-62020
main11071-62010-04i198808-199007
sub11071-62020
main11071-62010-05i198808-199007
sub11071-62020
main11071-63020-01i198808-199007
MARK 1,*53,NO.3
sub11071-63021
main11071-63020-01i198808-199007
MARK 1,NO.3 JURNAL
sub11071-63021
main11071-63020-02i198808-199007
MARK 2,*53,NO.3
sub11071-63021
main11071-63020-02i198808-199007
MARK 2,NO.3 JURNAL
sub11071-63021
main11071-63020-03i198808-199007
MARK 3,NO.3 JURNAL
sub11071-63021
main11071-63020-03i198808-199007
MARK 3,*53,NO.3
sub11071-63021
main11071-63020-04i198808-199007
MARK 4,*53,NO.3
sub11071-63021
main11071-63020-04i198808-199007
MARK 4,NO.3 JURNAL
sub11071-63021
main11071-63020-05i198808-199007
MARK 5,*53,NO.3
sub11071-63021
main11071-63020-05i198808-199007
MARK 5,NO.3 JURNAL
sub11071-63021
main11071-88360-01i198808-199007
MARK 1,*54,NO.3,MARK 1
sub11071-88570
main11071-88360-02i198808-199007
MARK 2,*54,NO.3,MARK 2
sub11071-88570
main11071-88360-03i198808-199007
MARK 3,*54,NO.3,MARK 3
sub11071-88570
main11071-88360-04i198808-199007
MARK 4,*54,NO.3,MARK 4
sub11071-88570
main11071-88360-05i198808-199007
MARK 5,*54,NO.3,MARK 5
sub11071-88570
main11701-62010-01i198808-199007
sub11701-62020
main11701-62010-02i198808-199007
sub11701-62020
main11701-62010-03i198808-199007
sub11701-62020
main11701-62010-04i198808-199007
sub11701-62020
main11701-62010-05i198808-199007
sub11701-62020
main11701-63021-01i198808-199007
MARK 1,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-01i198808-199007
MARK 1,*53,NO.1,2,4,5,MARK 1
sub11701-63022
main11701-63021-02i198808-199007
MARK 2,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-02i198808-199007
MARK 2,*53,NO.1,2,4,5,MARK 2
sub11701-63022
main11701-63021-03i198808-199007
MARK 3,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-03i198808-199007
MARK 3,*53,NO.1,2,4,5,MARK 3
sub11701-63022
main11701-63021-04i198808-199007
MARK 4,*53,NO.1,2,4,5,MARK 4
sub11701-63022
main11701-63021-04i198808-199007
MARK 4,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-05i198808-199007
MARK 5,*53,NO.1,2,4,5,MARK 5
sub11701-63022
main11701-63021-05i198808-199007
MARK 5,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-64040-01i198808-199007
MARK 1
sub11701-64070
main11701-64040-02i198808-199007
MARK 2
sub11701-64070
main11701-64040-03i198808-199007
MARK 3
sub11701-64070
main11701-88342-01i198909-199007
MARK 1,*54,NO.1,2,4,5
main11701-88342-02i198909-199007
MARK 2,*54,NO.1,2,4,5
main11701-88342-03i198909-199007
MARK 3,*54,NO.1,2,4,5
main11701-88342-04i198909-199007
MARK 4,*54,NO.1,2,4,5
main11701-88342-05i198909-199007
MARK 5,*54,NO.1,2,4,5
main11701-88360-01i198808-198909
MARK 1,*54,NO.1,2,4,5
main11701-88360-02i198808-198909
MARK 2,*54,NO.1,2,4,5
main11701-88360-03i198808-198909
MARK 3,*54,NO.1,2,4,5
main11701-88360-04i198808-198909
MARK 4,*54,NO.1,2,4,5
main11701-88360-05i198808-198909
MARK 5,*54,NO.1,2,4,5
13011RING SET, PISTON
main13011-62010i198808-199007
main13011-64210i198808-199007
main13011-74071i198808-199007
sub13011-74072
main13011-74110i198808-199007
sub13011-74120
main13011-88363i198808-199007
main13013-62010i198808-199007
main13013-64210i198808-199007
main13013-74071i198808-199007
sub13013-74072
main13013-74110i198808-199007
sub13013-74120
main13014-74110i198808-199007
sub13014-74120
13041BEARING, CONNECTING ROD
main13041-62010-01i198808-199007
MARK 1
main13041-62010-02i198808-199007
MARK 2
main13041-62010-03i198808-199007
MARK 3
main13041-63020-01i198808-199007
MARK 1
main13041-63020-02i198808-199007
MARK 2
main13041-63020-03i198808-199007
MARK 3
main13041-64041-01i198808-199007
MARK 1
sub13041-64070
main13041-64041-02i198808-199007
MARK 2
sub13041-64070
main13041-64041-03i198808-199007
MARK 3
sub13041-64070
main13041-88360-01i198808-199007
MARK 1
main13041-88360-02i198808-199007
MARK 2
main13041-88360-03i198808-199007
MARK 3
13101PISTON SUB-ASSY, W/PIN
main13101-62010-01i198808-199007
sub13101-62010
main13101-62010-02i198808-199007
sub13101-62010
main13101-62010-03i198808-199007
sub13101-62010
main13101-64120-01i198808-199007
sub13101-64121
main13101-64120-02i198808-199007
sub13101-64121
main13101-64120-03i198808-199007
sub13101-64121
main13101-74032-01i198808-199007
sub13101-74032
main13101-74032-02i198808-199007
sub13101-74032
main13101-74032-03i198808-199007
sub13101-74032
main13101-74040-01i198808-199005
sub13101-74040
main13101-74040-02i198808-199005
sub13101-74040
main13101-74040-03i198808-199005
sub13101-74040
main13101-74040-04i199002-199005
sub13101-74040
main13101-74071-01i198808-199007
sub13101-74071
main13101-74071-02i198808-199007
sub13101-74071
main13101-74071-03i198808-199007
sub13101-74071
main13101-74110-01i199005-199007
sub13101-74111
main13101-74110-02i199005-199007
sub13101-74111
main13101-74110-03i199005-199007
sub13101-74111
main13101-88361-01i198808-199007
sub13101-88361
main13101-88361-02i198808-199007
sub13101-88361
main13101-88361-03i198808-199007
sub13101-88361
main13103-62010i198808-199007
main13103-64120i198808-199007
sub13103-64121
main13103-74040i198808-199005
main13103-74071i198808-199007
main13103-74110i199005-199007
sub13103-74111
main13104-74071i198808-199007
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-25004i198808-199007
sub90520-22025
main90521-29003i198808-199007
13201ROD SUB-ASSY, CONNECTING
main13201-69055i198808-199007
main13201-69075i198808-199007
sub13201-69076
main13201-69085i198808-199007
main13201-79096i198808-199007
sub13201-79195
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73102i198808-199007
sub90999-73138
main90999-73112i198808-199007
13202BEARING SET, CONNECTING ROD
main13204-62010i198808-199007
main13204-63020i198808-199007
main13204-64041i198808-199007
sub13204-64070
13265BOLT, CONNECTING ROD
main13265-49015i198808-199007
main13265-62010i198808-199007
main13265-63010i198808-199007
main13265-74010i198808-199007
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90179-08118i198808-199007
main90179-09001i198808-199007
main90179-10042i198808-199007
main90179-10107i198808-199007
13405FLYWHEEL SUB-ASSY
main13405-62010i198808-199007
main13405-64060i198808-199007
main13405-74011i198808-198907
main13405-74020i198808-198905
sub13405-74021
main13405-74031i198905-199007
sub13405-74120
main13405-74050i198808-198905
main13405-74051i198905-199007
main13405-74110i198907-199007
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198808-199007
main90250-08120i198808-199007
13405BBOLT, FLYWHEEL SETTING
main90105-10071i198808-199007
main90105-10138i198808-199007
main90105-12187i198907-199007
13411CRANKSHAFT
main13411-62900i198808-199007
main13411-64900i198808-199007
sub13411-64901
sub13521-64011
main13411-74901i198808-198905
main13411-74903i198907-199007
sub13411-74909
main13411-74904i198905-199007
main13411-74907i198808-198907
13453GEAR, FLYWHEEL RING
main13453-20010i198808-199007
main13453-64011i198808-199007
main13453-74010i198808-198907
sub13453-74011
main13453-74011i198907-199007
13471PULLEY, CRANKSHAFT
main13407-74020i198908-199007
*53
main13407-88360i198808-198910
*54
sub13407-88380
main13407-88380i198808-198908
*53
main13407-88380i198910-199007
*54
main13408-62010i198808-199007
main13408-64031i198808-198906
main13408-64060i198906-199007
main13408-74020i198808-199007
sub13408-74010
main13408-74040i198808-199007
sub13408-74041
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05010i198808-199007
main95161-20516i198808-199007
main95161-20519i198808-199007
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
main90201-14007i198808-199007
sub90201-14030
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-14011i198812-199007
main90105-14057i198808-198812
sub90105-14011
main90105-16031i198808-199007
main90119-14015i198808-199007
main90119-14027i198811-199007
main91511-61435i198808-199007
sub90105-14089
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main95161-20519i198808-199007
main95161-20622i198808-199007
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-62020i198808-199007
main13521-64010i198808-199007
sub13521-64011
main13521-74020i198808-199007
sub13521-74040
main13521-88360i198808-199007
13566AGUIDE, TIMING BELT
main13566-64010i198808-199007
sub13566-64011
main13566-88360i198808-199007
main13567-62010i198808-199007
main13567-74010i198808-199007
