PARTIAL ENGINE ASSEMBLY

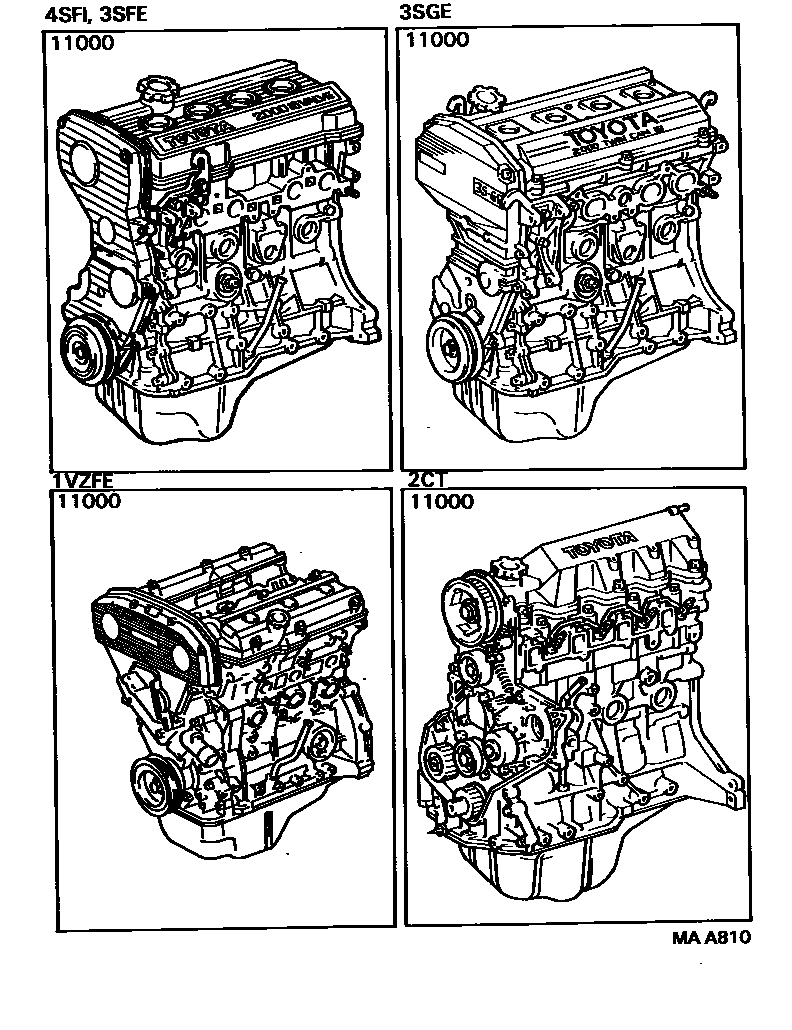

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-62040i198808-199007

main19000-64440i198808-199007

main19000-74091i198808-198905

main19000-74093i198905-198906

main19000-74095i198906-199005

main19000-74097i199005-199007

main19000-74140i198808-198905

main19000-74142i198905-198906

main19000-74143i198906-199005

main19000-74145i199005-199007

main19000-74220i198808-198905

main19000-74221i198905-199007

main19000-88364i198808-198906

main19000-88371i198906-198907

main19000-88375i198907-199007

1 parts on this diagram · 1 diagram in section
