STANDARD TOOL

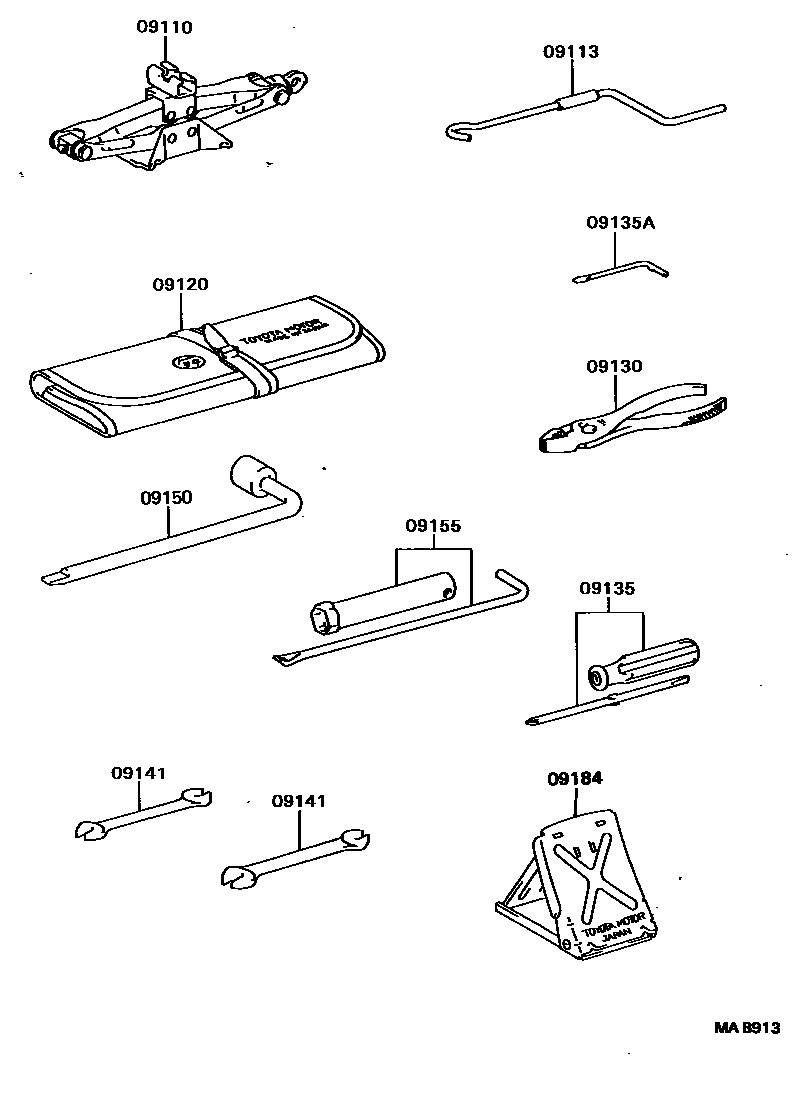

Parts diagram

09110JACK ASSY

main09111-20060i198808-199007

main09111-20070i198808-199007

09113HANDLE, JACK

main09113-32010i198808-199007

09120BAG, TOOL

main09120-10030i198808-199007

09130PLIERS

main99913-11500i198808-199007

09135DRIVER, SCREW

main99915-10700i198808-199007

09135ABIT, SCREW DRIVER

main09135-00012i198808-199007

09141SPANNER

main99914-10810i198808-199007

main99914-11214i198808-199007

09150WRENCH, HUB NUT BOX

main09150-40010i198808-199007

09155WRENCH, SPARK PLUG

main09155-32020i198808-199007

main09155-74010i198808-199007

09184STOPPER, WHEEL

main09184-00010i198808-199007

10 parts on this diagram · 1 diagram in section
