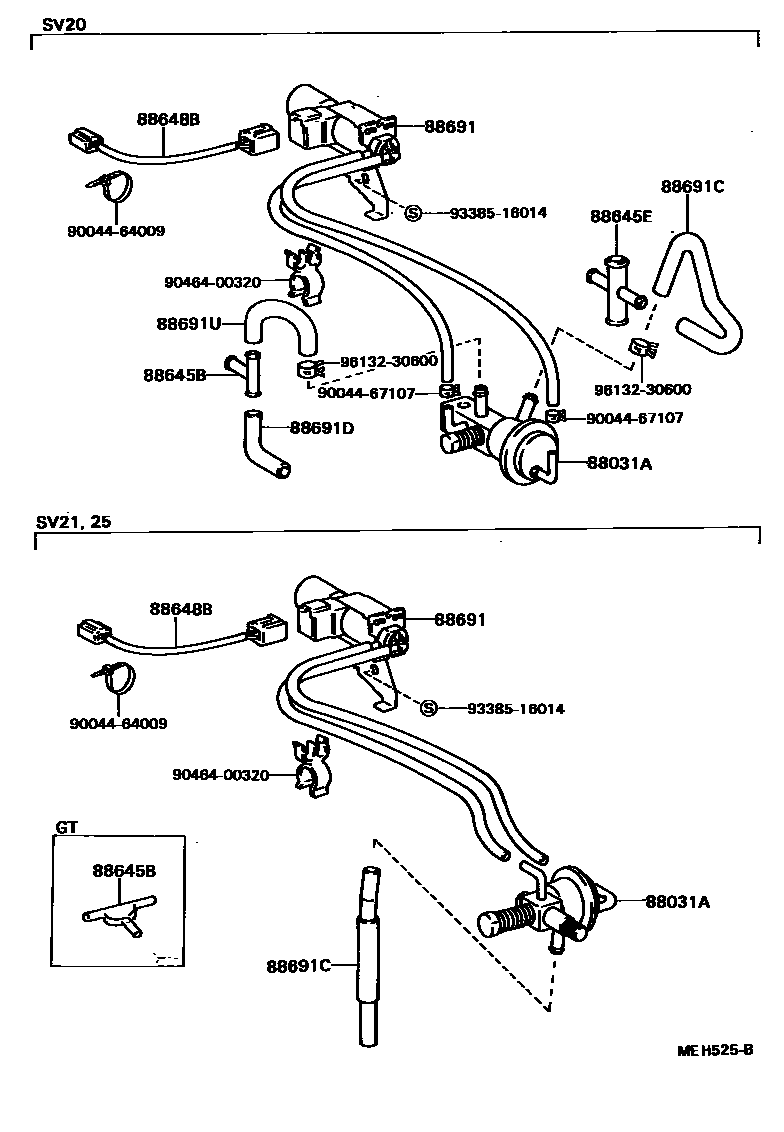

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-12150iCV20..5F..ZT198705-198808

main88031-12150iCV20198608-198705

*HIU

main88031-30070iCV20198608-198705

*CIU

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-20050iSV20198608-198808

main88606-24020iSV21..GT198608-198808

main88606-32010iSV21..ZT198608-198808

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main88892-20250iSV20..ZT198608-198808

main90413-04001iSV21..GT198608-198808

88645EJOINT, NO.2 (FOR IDLE UP DEVICE)

main88892-20260iSV20..ZT198608-198808

88648BWIRING, COOLER, NO.1

main88648-32070iCV20..5F..(VE,VL,XT)198710-198808

main88648-32070iCV20,SV2#198608-198710

*CIU

main88648-32070iSV20..LT,VC198710-198808

main88648-32080iCV20198608-198710

*HIU

main88648-32080iCV20198710-198808

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32250iCV20198710-198808

main88690-32250iCV20198608-198710

*HIU

main88690-32300iSV21..GT198608-198808

main88690-32310iSV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main88690-32320iCV20..4FC..ZT198710-198808

main88690-32320iCV20198608-198710

*CIU

main88690-32330iSV20..LT,VC198608-198808

main88691-32070iVZV20198710-198808

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-20160iSV20198608-198808

main88689-32050iSV21,25..VE,VL,VR,VX,XT,ZE,ZX198608-198808

main88689-40030iSV21..GT198608-198808

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main88689-20170iSV20..SED..(VL,XT)198608-198808

88691UWAY(FOR VACUUM HOSE)

main88689-20180iSV20..HT..VL;SV20..VE,VR,ZE198608-198808

9004464009

main90044-64009

9004467107

main90044-67107

9046400320

main90464-00320

9338516014

main93385-16014

9613230600

main96132-30600

14 parts on this diagram · 2 diagrams in section
