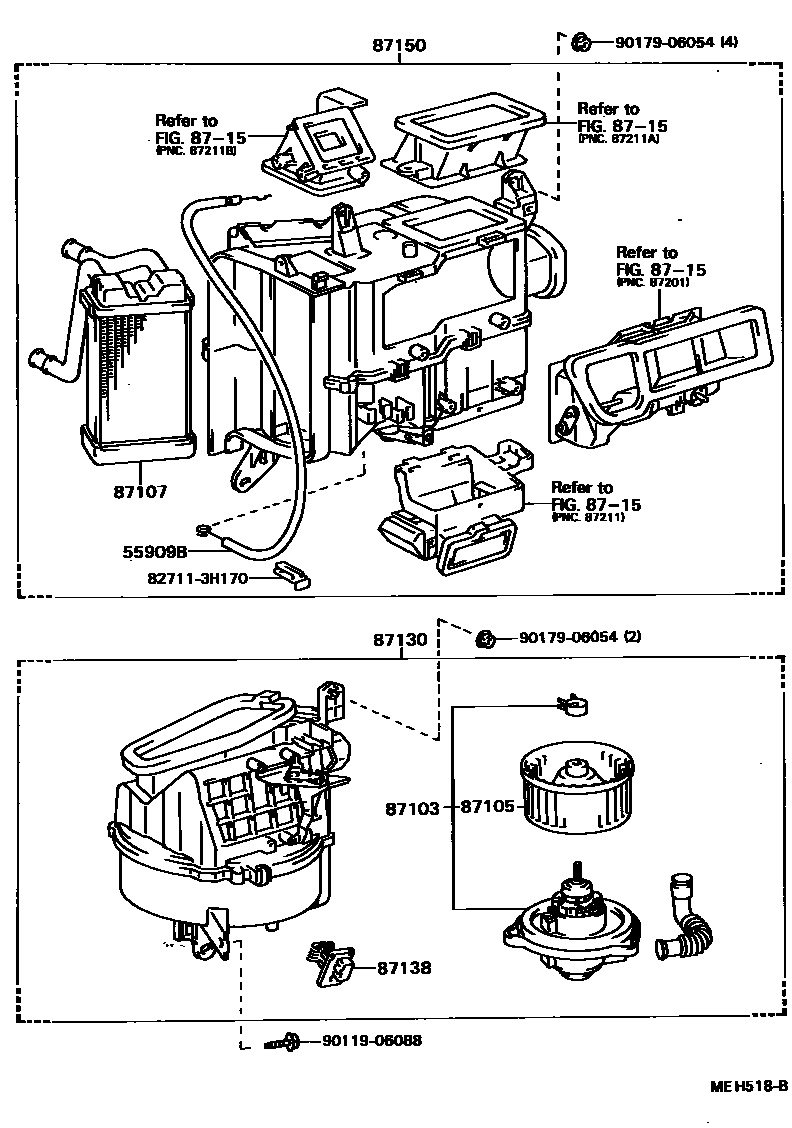

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1LEVER HEATER 0002 1PUSH HEATER 0003 1 0004 1AUTO AIR CONDITIONER

55909BCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-32100iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-32010iCV20,SV2#,VZV20198608-198808

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iCV20,SV2#,VZV20198608-198808

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-32050iSV2#,VZV20198608-198808

main87107-32060iSV20,21..ZT198710-198808

main87107-32060iSV2#,VZV20198608-198710

COLD SPEC

main87107-32060iCV20198608-198808

87130BLOWER ASSY, HEATER, FRONT

main87130-32070iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

main87130-32080iSV2#..GT,VR,VX,ZE,ZX198608-198808

main87130-32080iCV20,SV20,21..ZT198712-198808

main87130-32120iVZV20198704-198808

87138RESISTOR, HEATER BLOWER

main87138-32030iSV2#..GT,VR,VX,ZE,ZX198608-198808

main87138-32030iCV20,SV20,21..ZT198712-198808

main87138-32040iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

main88635-32020iSV20,21..ZT198710-198808

main88635-32020iCV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198710

W/*AAC

main88635-32020iVZV20198710-198808

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-32070iSV2#..LT,VC,VE,VL,XT,ZT198608-198808

main87150-32080iSV2#..LT,VC,VE,VL,XT,ZT198608-198710

COLD SPEC

main87150-32080iCV20198608-198808

main87150-32080iSV2#..LT,VC,VE,VL,XT,ZT198710-198808

main87150-32090iSV2#..GT,VR,VX,ZE,ZX198608-198710

main87150-32100iSV2#..GT,VR,VX,ZE,ZX198608-198710

COLD SPEC

main87150-32140iVZV20198704-198710

main87150-32150iVZV20198704-198710

COLD SPEC

827113H170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H170

9011906088

main90119-06088

9017906054

main90179-06054

11 parts on this diagram · 4 diagrams in section
