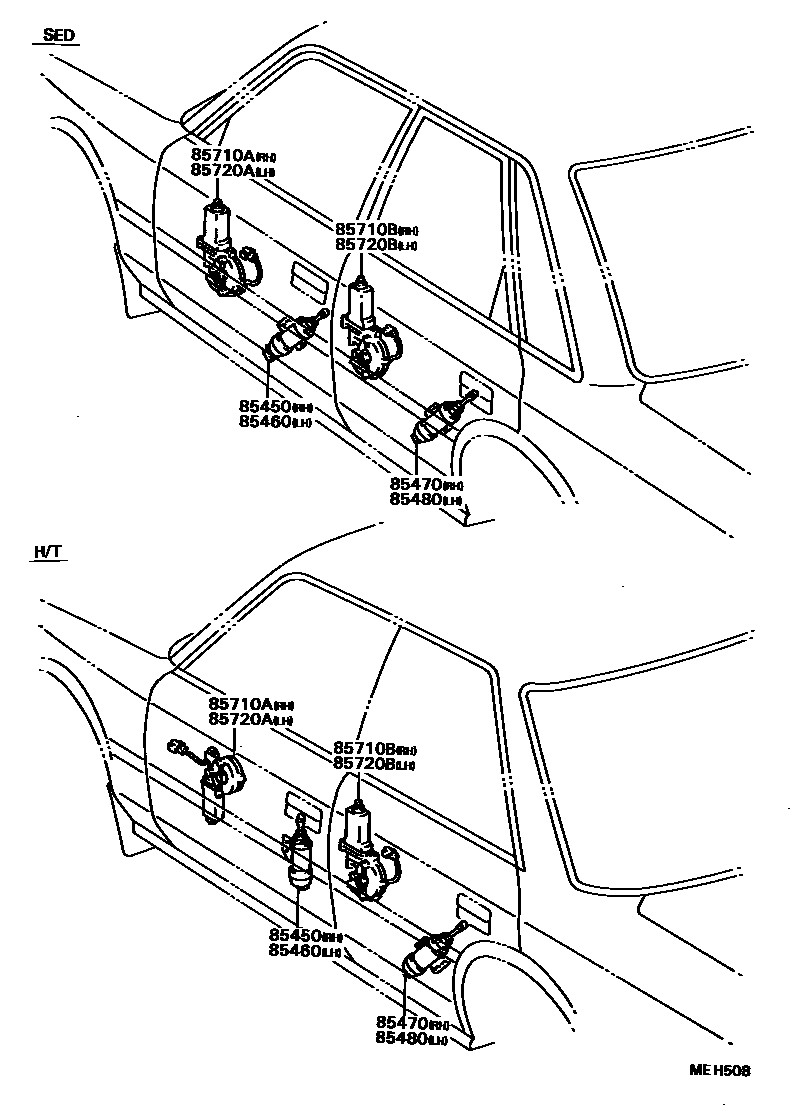

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-17010iCV20,SV20..SED..VL198710-198712

main85450-17030iCV20,SV20,21..ZT198712-198808

main85450-32110iSV2#..HT..(GT,VE,VR,VX)198710-198808

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-17020iCV20,SV20..SED..VL198710-198712

sub85450-17040

main85450-32100iSV2#..HT..(GT,VE,VR,VX)198710-198808

sub85450-32090

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-22540iSV2#..HT..(GT,VE,VR,VX)198710-198808

sub85450-32140

main85450-30530iCV20,SV20..SED..VL198708-198710

ETOILE PACK

sub85450-30610

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-22550iSV2#..HT..(GT,VE,VR,VX)198710-198808

sub85450-32150

main85450-30540iCV20,SV20..SED..VL198710-198712

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-32040iCV20,SV20..SED..VL198710-198712

main85720-32060iSV2#..HT..(GT,VE,VR,VX)198710-198808

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-32050iCV20,SV20..VL198708-198710

ETOILE PACK

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85710-32060iSV2#..HT..(GT,VE,VR,VX)198608-198710

main85720-32040iCV20,SV20..SED..VL198708-198710

ETOILE PACK

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-32050iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198808

8 parts on this diagram · 1 diagram in section
