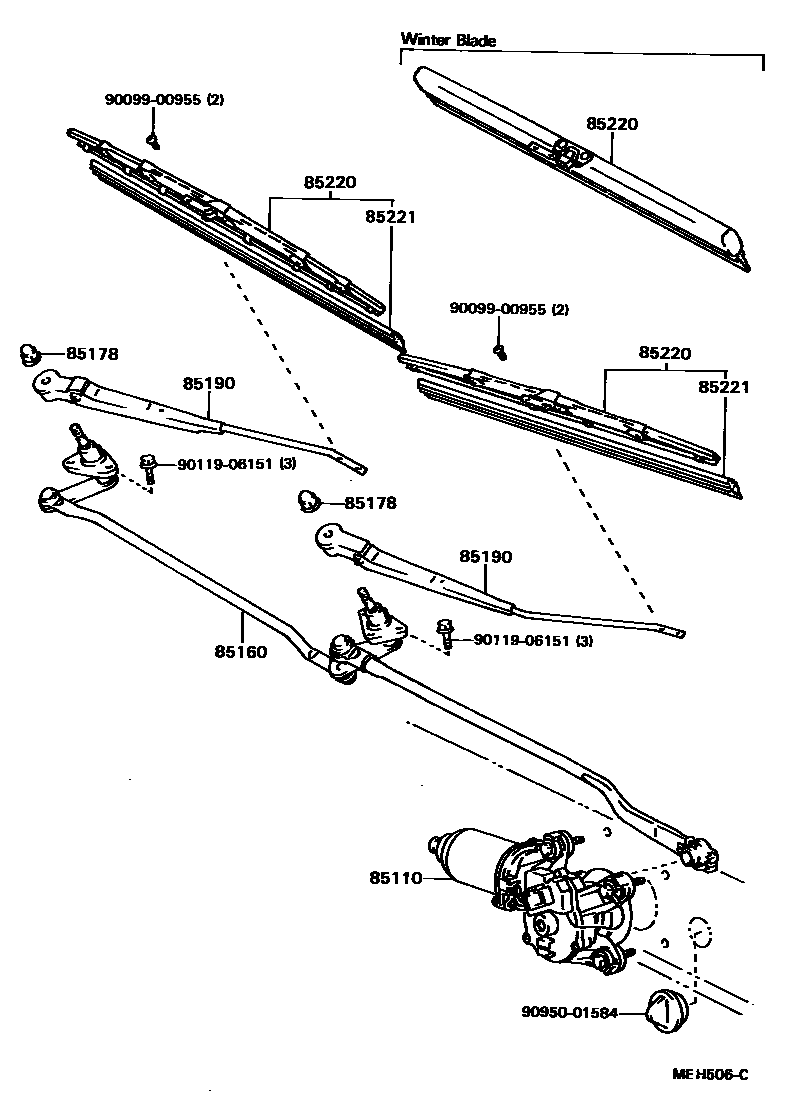

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32180iCV20,SV20..LT,VC,VL,XT198608-198702

sub85110-32181

main85110-32181iCV20,SV20,25..LT,VC,VL,XT198702-198808

sub85110-32183

main85110-32190iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198702

sub85110-32191

main85110-32191iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198702-198808

sub85110-32192

main85110-32220iCV20,SV20..LT,VC,VL,XT198608-198702

COLD SPEC

sub85110-32221

main85110-32221iCV20,SV20..LT,VC,VL,XT198702-198710

COLD SPEC

sub85110-32222

main85110-32221iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85110-32222

85160LINK ASSY, WINDSHIELD WIPER

main85160-32080iCV20,SV20..LT,VC,VL,XT198608-198808

main85160-32090iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198808

main85160-32120iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

COLD SPEC

main85160-32120iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033iCV20,SV2#,VZV20198608-198807

main90176-08040iCV20,SV2#,VZV20198807-198808

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-32230iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

RH,WINTER BLADE,LOCK BACK

sub85190-32231

main85190-32230iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85190-32231

main85190-32230iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85190-32231

main85190-32230iCV20,SV20..LT,VC,VL,XT198608-198710

RH

sub85190-32231

main85190-32240iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

RH

sub85190-32241

main85190-32240iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85190-32241

main85190-32270iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

RH,COLD SPEC

sub85190-32271

main85190-32270iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85190-32271

main85210-32170iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85210-32171

main85210-32170iCV20,SV20..LT,VC,VL,XT198608-198710

LH

sub85210-32171

main85210-32170iCV20,SV20..LT,VC,VL,XT198608-198710

LH,WINTER BLADE,LOCK BACK

sub85210-32171

main85210-32170iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85210-32171

main85210-32180iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

LH

sub85210-32181

main85210-32180iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85210-32181

main85210-32200iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

LH,COLD SPEC

sub85210-32201

main85210-32200iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85210-32201

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320iCV20,SV20..LT,VC,VL,XT198608-198710

LH

sub85220-16321

main85220-16320iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85220-16321

main85220-16330iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

LH

sub85222-24050

main85220-16330iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85222-24050

main85220-16580iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85291-16010

main85220-16580iCV20,SV2#,VZV20198608-198710

LH,WINTER BLADE

sub85291-16010

main85220-16580iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85291-16010

main85220-32540iCV20,SV2#,VZV20198608-198710

RH

sub85212-24050

main85220-32540iCV20,SV2#,VZV20198710-198808

sub85212-24050

main85220-32550iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198710-198808

sub85291-32030

main85220-32550iCV20,SV20,25..LT,VC,VL,XT198710-198808

sub85291-32030

main85220-32550iCV20,SV2#,VZV20198608-198710

RH,WINTER BLADE

sub85291-32030

85221BLADE, WINDSHIELD WIPER

main85221-24040iCV20,SV2#,VZV20198608-198710

RH

sub85214-24H90

main85221-24040iCV20,SV2#,VZV20198710-198808

sub85214-24H90

main85221-30120iCV20,SV2#,VZV20198608-198710

LH

sub85221-40040

main85221-30120iCV20,SV2#,VZV20198710-198808

sub85221-40040

9009900955

main90099-00955

9011906151

main90119-06151

9095001584

main90950-01584

9 parts on this diagram · 1 diagram in section
