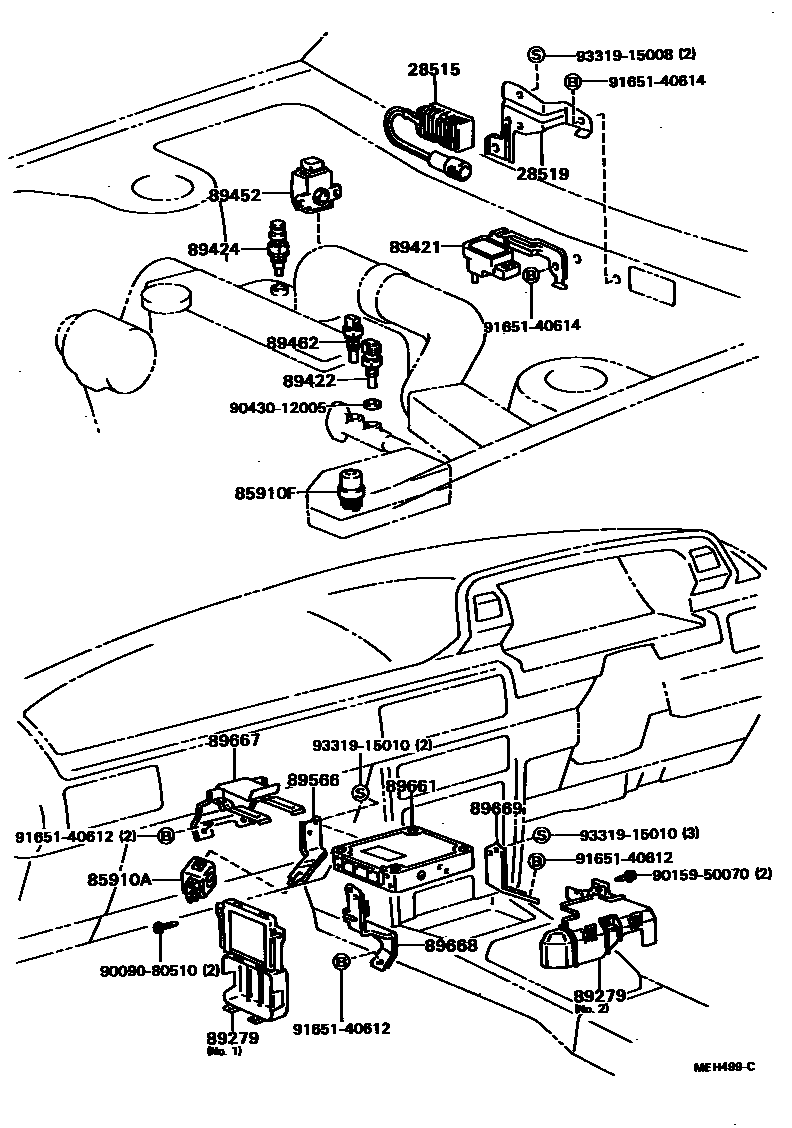

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-11010i3SFE..SV21198608-198708

main28515-62010i1VZFE..VZV20198704-198808

main28515-63040i1SI..SV20198608-198808

28519BRACKET, SOLENOID RESISTOR

main28519-62010i1VZFE..VZV20198704-198808

main28519-63030i3SFE..SV21198608-198708

main28519-63040i1SI..SV20198608-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSV2#,VZV20198608-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iSV2#,VZV20198608-198808

89279COVER, ENGINE CONTROL COMPUTER

main89279-32070iSV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198710

NO.1

main89279-32080iSV2#,VZV20198608-198710

NO.2

main89279-32090iSV21..GT198608-198710

NO.1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-32010iSV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iSV2#,VZV20198608-198808

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iSV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198710

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20030iSV20198608-198808

main89452-20050iSV21..GT198608-198808

main89452-28030iVZV20198704-198808

main89452-32020iSV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198808

main89452-32030iSV21..4FC..(VE,VX,ZT,ZX)198608-198808

sub89452-14040

89462SWITCH, START INJECTOR TIME

main89462-40010iSV2#,VZV20198608-198808

89566BRACKET, FUEL INJECTION COMPUTER

main89566-32020iVZV20198704-198706

89661COMPUTER, ENGINE CONTROL

main89661-20230iSV20198608-198808

main89661-20430iSV21..VE,VX,ZT,ZX198708-198710

main89661-32040iSV21..GT198702-198808

sub89661-32041

main89661-32050iSV21..VE,VX,ZT,ZX198608-198708

DENSO

main89661-32060iSV21..VE,VX,ZT,ZX198608-198704

TEN

main89661-32061iSV21..VE,VX,ZT,ZX198704-198708

TEN

sub89661-32062

main89661-32130iSV21..GT198608-198702

main89661-32140iVZV20198704-198808

sub89661-32141

main89661-32170iSV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX198710-198808

sub89661-32730

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-32020iSV2#,VZV20198608-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-32010iSV2#,VZV20198608-198808

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-32030iSV2#,VZV20198608-198808

9009080510

main90090-80510

9015950070

main90159-50070

9043012005

main90430-12005

9165140612

main91651-40612

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

22 parts on this diagram · 2 diagrams in section
