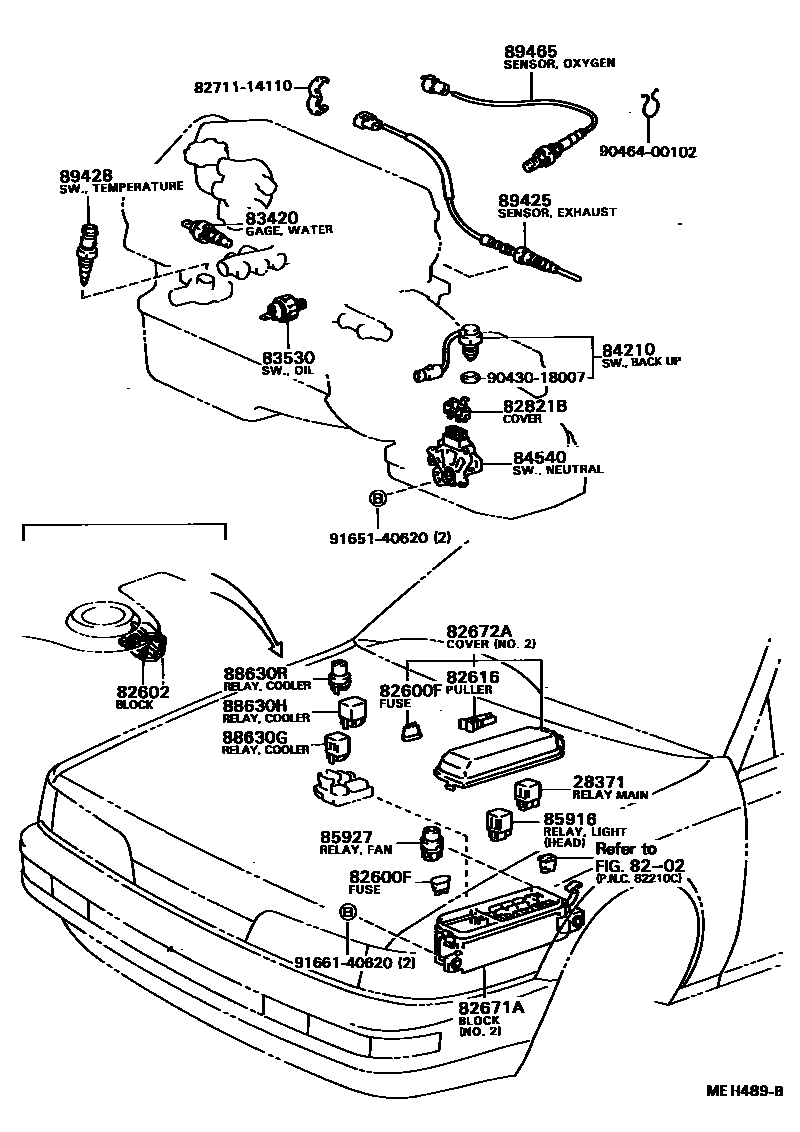

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.2
82672ACOVER, JUNCTION BLOCK
NO.1
NO.2
NO.2,UPR
NO.2,UPPER
NO.2,LOW
NO.2,LOWER
NO.1
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
sub84540-16040
85916RELAY, LIGHT CONTROL
TAIL LAMP,DENSO
HEAD LAMP
HEADLAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89428SWITCH, TEMPERATURE DETECT, NO.2
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9043018007
main90430-18007
9046400102
main90464-00102
9165140620
main91651-40620
9166140620
main91661-40620
25 parts on this diagram · 11 diagrams in section
