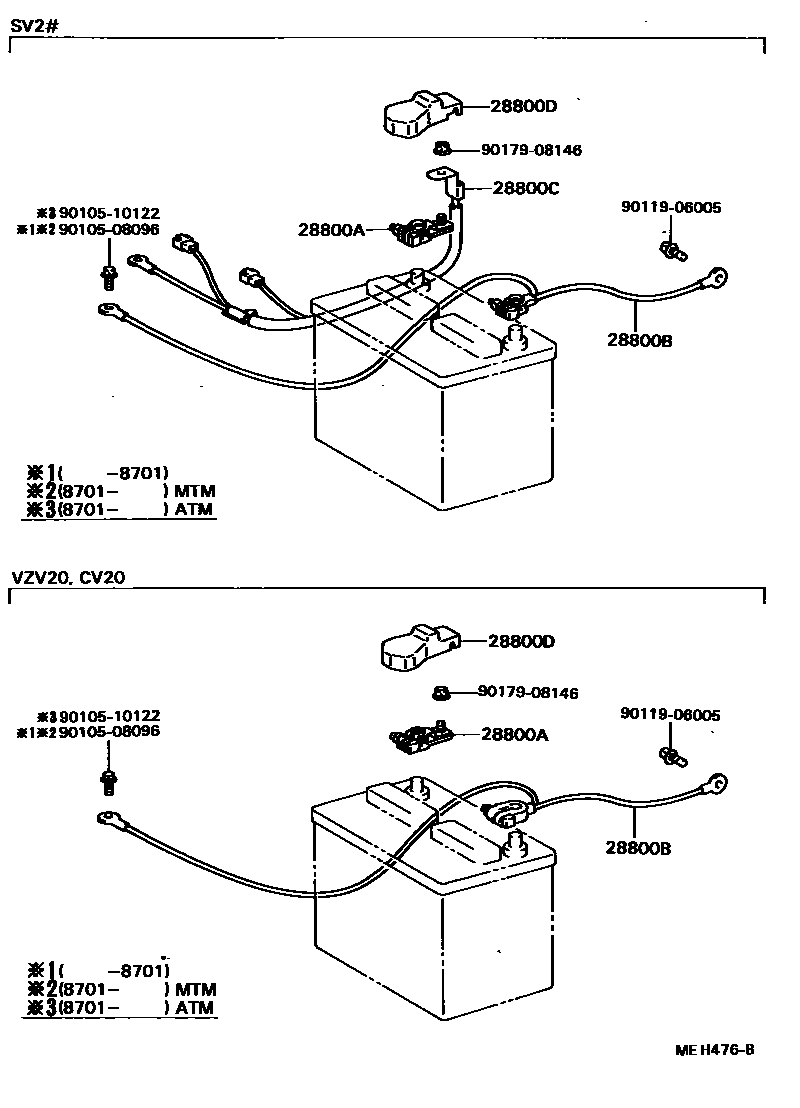

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05027i1SI,3SFE..SV2#198608-198610

main90982-05028i3SGE..SV21..HT..5F198608-198710

sub90982-05057

main90982-05029i2CT..CV20198608-198610

main90982-05030i1VZFE..VZV20..5F198710-198808

main90982-05034i1SI,3SFE..SV2#;1VZFE..VZV20..5F198710-198808

main90982-05036i3SGE..SV21..SED;3SGE..SV21..HT..5F198710-198808

28800BCABLE, BATTERY TO GROUND

main82123-32040i3SGE..SV21..HT..5F198608-198701

main82123-32041i3SGE..SV21..HT..5F198701-198710

main82123-32050i3SGE..SV21..HT..4FC198608-198701

main82123-32051i3SGE..SV21..HT..4FC198701-198710

main82123-32060i2CT..CV20198608-198701

main82123-32061i2CT..CV20198701-198808

main82123-32090i1VZFE..VZV20..5F198710-198808

main82123-32100i1VZFE..VZV20..4FC198710-198808

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-32200i3SGE..SV21198608-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-32030i2CT,1SI,1VZFE..CV20,SV20,VZV20198608-198708

main82821-32040i3SGE..SV21198608-198808

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
