Toyota 281120 — INTERIOR LAMP

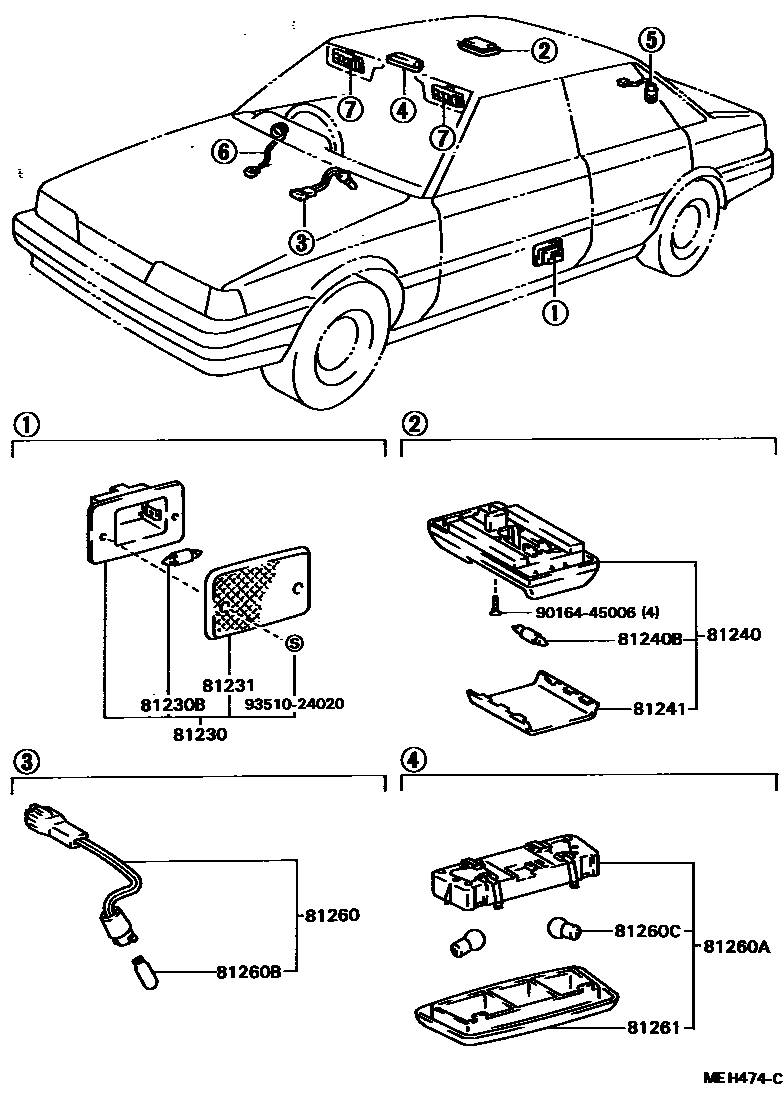

Parts diagram

81230LAMP ASSY, COURTESY

81230BBULB(FOR COURTESY LAMP)

81231LENS, COURTESY LAMP

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81241LENS, ROOM LAMP, NO.1

81260LAMP ASSY, GLOVE BOX

81260ALAMP ASSY, MAP

81260BBULB(FOR GLOVE BOX)

81260CBULB(FOR MAP LAMP)

81261LENS AND COVER, MAP LAMP

9016445006

9351024020

13 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota 281120

This section contains 24 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 281120. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
