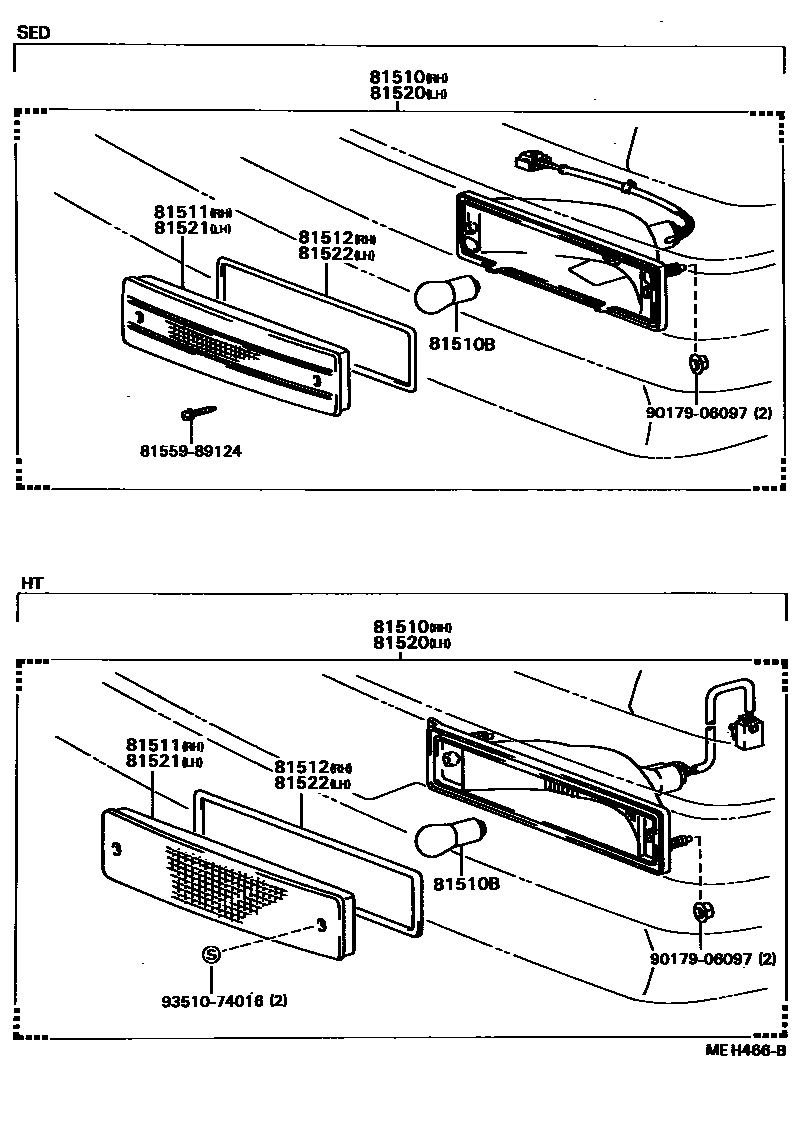

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39595iSV2#..HT198608-198808

main81510-39605iCV20,SV2#..SED198608-198808

main81510-39635iVZV20198704-198808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iVZV20198710-198808

main99132-11230×2iCV20,SV2#198710-198808

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iVZV20198704-198808

main81511-32050iCV20,SV2#..SED198608-198808

main81511-32080iSV2#..HT198608-198808

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iVZV20198704-198808

main81512-32050iCV20,SV2#..SED198608-198808

main81512-32080iSV2#..HT198608-198808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39595iSV2#..HT198608-198808

main81520-39605iCV20,SV2#..SED198608-198808

main81520-39635iVZV20198704-198808

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iVZV20198704-198808

main81521-32050iCV20,SV2#..SED198608-198808

main81521-32080iSV2#..HT198608-198808

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iVZV20198704-198808

main81512-32050iCV20,SV2#..SED198608-198808

main81512-32080iSV2#..HT198608-198808

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

9017906097

main90179-06097

9351074016

main93510-74016

10 parts on this diagram · 2 diagrams in section
