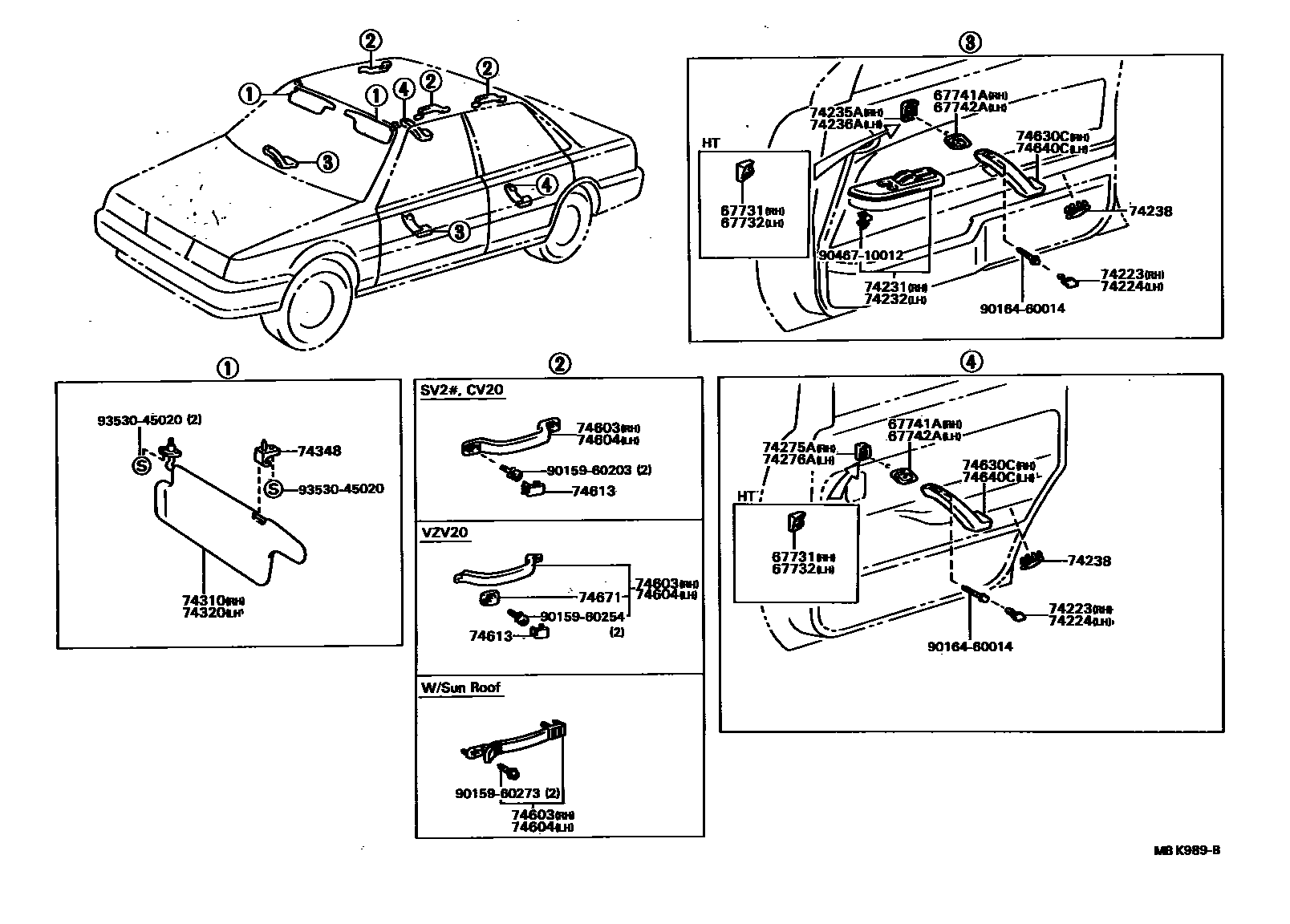

ARMREST & VISOR

67731SPACER, SIDE TRIM, NO.1

main67731-32010iSV2#..HT198608-198808

67732SPACER, SIDE TRIM, NO.2

main67732-32010iSV2#..HT198608-198808

67741AMOULDING, FRONT DOOR TRIM, RH

main67741-32050iCV20,SV2#,VZV20198608-198808

67742AMOULDING, FRONT DOOR TRIM, LH

main67742-32020iCV20,SV2#,VZV20..SED198608-198808

74223CAP, DOOR ARMREST, RH

main74223-32020-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

sub74223-32020

main74223-32020-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

sub74223-32020

main74223-32020-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

sub74223-32020

main74223-32020-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

sub74223-32020

main74223-32020-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub74223-32020

main74223-32020-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

sub74223-32020

74224CAP, DOOR ARMREST, LH

main74224-32010-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

sub74224-32010

main74224-32010-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

sub74224-32010

main74224-32010-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

sub74224-32010

main74224-32010-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

sub74224-32010

main74224-32010-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub74224-32010

main74224-32010-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

sub74224-32010

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-32050-02iCV20,SV20..VL198708-198710

ETOILE,MAROON,MAROON,TRIM3#

main74231-32050-02iSV25..SED;SV25..HT..VR;CV20,SV20,21..GT,VE,VR,VX,ZE,ZT,ZX198710-198808

MAROON,TRIM3#

main74231-32050-02iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

MAROON,MAROON,TRIM3#

main74231-32050-04iCV20,SV20..VL198710-198808

DARK BLUE,TRIM8#

main74231-32050-04iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BLUE,DARK BLUE,TRIM8#

main74231-32050-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198710-198808

DARK BEIGE,TRIM4#

main74231-32050-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

main74231-32110iSV21..HT..VX198804-198808

main74231-32110iVZV20198710-198808

main74231-32110-02iVZV20198704-198710

MAROON,MAROON,TRIM3#

sub74231-32110

main74231-32110-04iVZV20198704-198710

BLUE,DARK BLUE,TRIM8#

sub74231-32110

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-32050-02iCV20,SV20..VL198710-198808

MAROON,TRIM3#

main74232-32050-02iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

MAROON,MAROON,TRIM3#

main74232-32050-02iCV20,SV20..VL198708-198710

ETOILE,MAROON,MAROON,TRIM3#

main74232-32050-04iSV25..SED;SV25..HT..VR;CV20,SV20,21..GT,VE,VR,VX,ZE,ZT,ZX198710-198808

DARK BLUE,TRIM8#

main74232-32050-04iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BLUE,DARK BLUE,TRIM8#

main74232-32050-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198710-198808

DARK BEIGE,TRIM4#

main74232-32050-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

main74232-32090iVZV20198710-198808

main74232-32090iSV21..HT..VX198804-198808

main74232-32090-02iVZV20198704-198710

MAROON,MAROON,TRIM3#

sub74232-32090

main74232-32090-04iVZV20198704-198710

BLUE,DARK BLUE,TRIM8#

sub74232-32090

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74235-32010iCV20,SV2#,VZV20..SED198608-198808

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74236-32010iCV20,SV2#,VZV20..SED198608-198808

74238CAP, DOOR ARMREST BASE

main74237-32010-02iCV20,SV2#,VZV20..SED198710-198808

sub74237-32010

main74237-32010-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub74237-32010

main74237-32010-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub74237-32010

main74237-32010-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub74237-32010

main74237-32010-04iCV20,SV2#,VZV20..SED198710-198808

sub74237-32010

main74237-32010-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub74237-32010

main74237-32010-05iCV20,SV2#..SED198710-198808

sub74237-32010

main74237-32010-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub74237-32010

main74237-32010-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub74237-32010

main74237-32020-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main74237-32020-02iSV2#..HT198710-198808

MAROON,TRIM3#

main74237-32020-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main74237-32020-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main74237-32020-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main74237-32020-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-32010iCV20,SV2#,VZV20..SED198608-198808

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-32010iCV20,SV2#,VZV20..SED198608-198808

74310VISOR ASSY, RH

main74310-32260-03iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

LIGHT GRAY,TRIM8#

sub74310-32330

main74310-32260-03iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

GRAY,LIGHT GRAY,TRIM8#

sub74310-32330

main74310-32260-05iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

LIGHT BEIGE,TRIM3#,4#

sub74310-32330

main74310-32260-05iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74310-32330

main74310-32270-03iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198710-198808

LIGHT GRAY,TRIM8#

sub74310-32340

main74310-32270-03iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198608-198710

GRAY,LIGHT GRAY,TRIM8#

sub74310-32340

main74310-32270-05iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74310-32340

main74310-32270-05iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198710-198808

LIGHT BEIGE,TRIM3#,4#

sub74310-32340

main74310-32360-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main74310-32360-02iSV2#..HT198710-198808

MAROON,TRIM3#

main74310-32360-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main74310-32360-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main74310-32360-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main74310-32360-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main74310-32380-03iVZV20198704-198710

GRAY,LIGHT GRAY,TRIM8#

main74310-32380-03iVZV20198710-198808

LIGHT GRAY,TRIM8#

main74310-32380-05iVZV20198704-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main74310-32380-05iVZV20198710-198808

LIGHT BEIGE,TRIM3#

74320VISOR ASSY, LH

main74320-32230-03iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

GRAY,LIGHT GRAY,TRIM8#

main74320-32230-03iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

LIGHT GRAY,TRIM8#

main74320-32230-05iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

LIGHT BEIGE,TRIM3#,4#

main74320-32230-05iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main74320-32240-03iCV20,SV2#..SED..(VE,ZT)198608-198710

GRAY,LIGHT GRAY,TRIM8#

main74320-32240-03iCV20,SV20,21..SED..(VE,ZT)198710-198808

LIGHT GRAY,TRIM8#

main74320-32240-05iCV20,SV20,21..SED..(VE,ZT)198710-198808

LIGHT BEIGE,TRIM3#,4#

main74320-32240-05iCV20,SV2#..SED..(VE,ZT)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main74320-32250-03iCV20,SV20,21..ZT198712-198808

main74320-32250-03iSV2#..SED..(GT,VR,VX,ZE,ZX)198608-198710

GRAY,LIGHT GRAY,TRIM8#

main74320-32250-03iSV2#..SED..(GT,VR,VX,ZE,ZX)198710-198808

LIGHT GRAY,TRIM8#

main74320-32250-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main74320-32250-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198710-198808

LIGHT BEIGE,TRIM3#,4#

main74320-32250-05iCV20,SV20,21..ZT198712-198808

main74320-32330-02iSV2#..HT..(VE,VL)198710-198808

MAROON,TRIM3#

sub74320-32340

main74320-32330-02iSV2#..HT..(VE,VL)198608-198710

MAROON,MAROON,TRIM3#

sub74320-32340

main74320-32330-04iSV2#..HT..(VE,VL)198710-198808

DARK BLUE,TRIM8#

sub74320-32340

main74320-32330-04iSV2#..HT..(VE,VL)198608-198710

BLUE,DARK BLUE,TRIM8#

sub74320-32340

main74320-32330-05iSV2#..HT..(VE,VL)198710-198808

DARK BEIGE,TRIM4#

sub74320-32340

main74320-32330-05iSV2#..HT..(VE,VL)198608-198710

BEIGE,LIGHT BEIGE,TRIM4#

sub74320-32340

main74320-32340-02iSV2#..HT..(GT,VR,VX)198710-198808

MAROON,TRIM3#

main74320-32340-02iSV2#..HT..(GT,VR,VX)198608-198710

MAROON,MAROON,TRIM3#

main74320-32340-04iSV2#..HT..(GT,VR,VX)198710-198808

DARK BLUE,TRIM8#

main74320-32340-04iSV2#..HT..(GT,VR,VX)198608-198710

BLUE,DARK BLUE,TRIM8#

main74320-32340-05iSV2#..HT..(GT,VR,VX)198710-198808

DARK BEIGE,TRIM4#

main74320-32340-05iSV2#..HT..(GT,VR,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main74320-32360-03iVZV20198704-198710

GRAY,LIGHT GRAY,TRIM8#

main74320-32360-03iVZV20198710-198808

LIGHT GRAY,TRIM8#

main74320-32360-05iVZV20198704-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main74320-32360-05iVZV20198710-198808

LIGHT BEIGE,TRIM3#

74348HOLDER, VISOR

main74348-32010-22iSV2#..HT198710-198808

MAROON,TRIM3#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-22iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-34iSV2#..HT198710-198808

DARK BLUE,TRIM8#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-34iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-45iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-45iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub74348-12020

main74348-32020-03iCV20,SV2#,VZV20..SED198608-198710

GRAY,LIGHT GRAY

sub74348-12020

main74348-32020-04iCV20,SV2#,VZV20..SED198710-198808

LIGHT BLUE,TRIM8#

sub74348-12020

main74348-32020-05iCV20,SV2#,VZV20..SED198608-198710

BEIGE,LIGHT BEIGE,TRIM4#

sub74348-12020

main74348-32020-05iCV20,SV2#..SED198710-198808

LIGHT BEIGE,TRIM4#

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-32020-03iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

sub74610-32020

sub74610-35012

main74610-32020-03iCV20,SV2#,VZV20..SED198710-198808

LIGHT GRAY,TRIM8#

sub74610-32020

sub74610-35012

main74610-32020-05iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32020

sub74610-35012

main74610-32020-05iCV20,SV2#,VZV20..SED198710-198808

LIGHT BEIGE,TRIM3#,4#

sub74610-32020

sub74610-35012

main74610-32030-02iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

W/SUN ROOF,MAROON,MAROON,TRIM3#

sub74610-32030

main74610-32030-02iSV2#..HT198710-198808

MAROON,TRIM3#

sub74610-32030

main74610-32030-03iSV2#..HT198608-198710

GRAY,LIGHT GRAY,TRIM8#

sub74610-32030

main74610-32030-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/SUN ROOF,GRAY,LIGHT GRAY,TRIM3#,4#

sub74610-32030

main74610-32030-04iSV2#..HT198710-198808

LIGHT BLUE,TRIM8#

sub74610-32030

main74610-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

W/SUN ROOF,LIGHT BLUE,LIGHT BLUE,TRIM8#

sub74610-32030

main74610-32030-05iSV2#..HT198710-198808

LIGHT BEIGE,TRIM4#

sub74610-32030

main74610-32030-05iSV2#..HT198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

main74610-32030-05iSV2#..HT198608-198710

W/SUN ROOF,BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

main74610-32030-05iSV2#..HT198710-198808

W/SUN ROOF,LIGHT BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-32020-03iCV20,SV2#,VZV20..SED198710-198808

LIGHT GRAY,TRIM8#

sub74610-32020

sub74610-35012

main74610-32020-03iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

sub74610-32020

sub74610-35012

main74610-32020-05iCV20,SV2#,VZV20..SED198710-198808

LIGHT BEIGE,TRIM3#,4#

sub74610-32020

sub74610-35012

main74610-32020-05iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32020

sub74610-35012

main74610-32030-02iSV2#..HT198710-198808

MAROON,TRIM3#

sub74610-32030

main74610-32030-03iSV2#..HT198608-198710

GRAY,LIGHT GRAY,TRIM8#

sub74610-32030

main74610-32030-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

sub74610-32030

main74610-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

W/SUN ROOF,LIGHT BLUE,LIGHT BLUE,TRIM8#

sub74610-32030

main74610-32030-04iSV2#..HT198710-198808

LIGHT BLUE,TRIM8#

sub74610-32030

main74610-32030-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/SUN ROOF,BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

main74610-32030-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

main74610-32030-05iSV2#..HT198710-198808

LIGHT BEIGE,TRIM4#

sub74610-32030

main74610-32030-05iSV2#..HT198710-198808

W/SUN ROOF,LIGHT BEIGE,LIGHT BEIGE,TRIM3#,4#

sub74610-32030

74613PLUG, ASSIST GRIP

main74617-16010-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub74617-16010

main74617-16010-23iCV20,SV2#,VZV20..SED198608-198710

GRAY,GRAY,TRIM8#

sub74617-16010

main74617-16010-24iCV20,SV2#,VZV20..SED198710-198808

DEEP BLUE,TRIM8#

sub74617-16010

main74617-16010-26iCV20,SV2#,VZV20..SED198608-198710

BEIGE,BROWN,TRIM3#,4#

sub74617-16010

main74617-16010-55iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub74617-16010

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-32010-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

main74630-32010-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

main74630-32010-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

main74630-32010-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

main74630-32010-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

main74630-32010-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-32010-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

main74640-32010-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

main74640-32010-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

main74640-32010-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

main74640-32010-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

main74640-32010-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

74671SUPPORT, ASSIST GRIP

main74671-30010iVZV20198704-198710

9015960203

main90159-60203

9015960254

main90159-60254

9015960273

main90159-60273

9016460014

main90164-60014

9046710012

main90467-10012

9353045020

main93530-45020

28 parts on this diagram · 1 diagram in section
