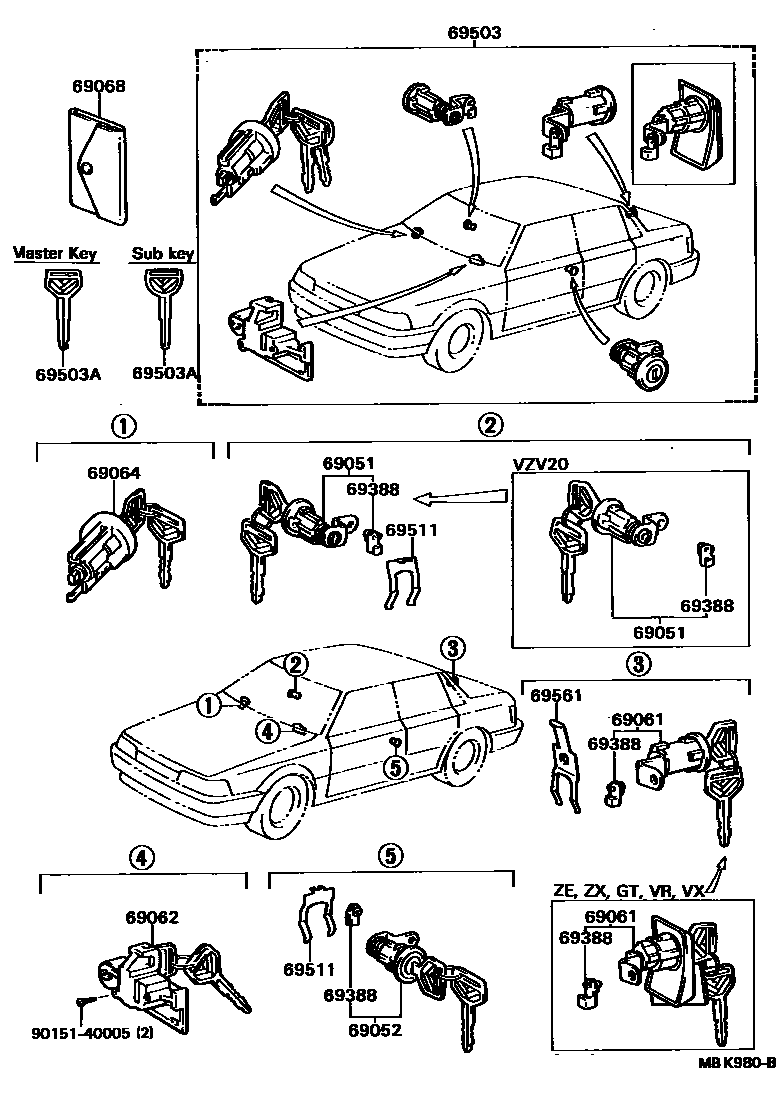

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32050iSV2#..HT198608-198808

main69051-32060iCV20,SV2#..SED198608-198808

sub69051-32061

main69051-32080iVZV20198704-198808

sub69051-32081

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32050iSV2#..HT198608-198808

main69052-32060iCV20,SV2#,VZV20..SED198608-198808

sub69052-32061

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-32100iSV2#..HT..(VE,VL)198608-198808

main69055-32110iSV2#..HT..(GT,VR,VX)198608-198808

sub69055-32230

main69055-32120iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198808

sub69055-32121

main69055-32130iSV2#,VZV20..SED..(GT,PRO,ZE,ZX)198608-198808

sub69055-32131

main69055-32140iSV2#..SED..(VR,VX)198608-198808

sub69055-32200

main69055-32230iSV21..HT..VX198804-198808

sub69055-32270

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32050iCV20,SV2#,VZV20198608-198808

sub69056-32060

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32060iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

sub69057-32070

main69057-32070iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198608-198808

sub69057-32121

69068COVER SUB-ASSY, KEY

main69555-20010iCV20,SV2#,VZV20198608-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iCV20,SV2#,VZV20..SED198608-198808

LUGGAGE DOOR

main69759-32070iCV20,SV2#,VZV20198608-198808

FR DOOR,RH

sub69759-45010

main69759-32080iCV20,SV2#,VZV20198608-198808

FR DOOR,LH

sub69759-45020

69503CYLINDER SET, LOCK

main69005-32200iSV2#..SED..(VR,VX)198608-198808

sub69005-32430

main69005-32210iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198808

main69005-32220iCV20,SV20,21..ZT198711-198808

main69005-32220iSV2#..SED..(GT,ZE,ZX)198608-198808

main69005-32370iSV2#..HT..(VE,VL)198608-198808

main69005-32380iSV2#..HT..(GT,VR,VX)198608-198808

sub69005-32480

main69005-32420iVZV20198704-198808

69503AKEY, BLANK

main90999-00099iCV20,SV2#,VZV20198608-198710

main90999-00099iCV20,SV2#,VZV20198710-198808

main90999-00100iCV20,SV2#,VZV20198710-198808

main90999-00100iCV20,SV2#,VZV20198608-198710

main90999-00118iCV20,SV2#,VZV20198710-198808

main90999-00118iCV20,SV2#,VZV20198608-198710

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32020iCV20,SV2#,VZV20..SED198608-198808

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-32020iCV20,SV2#,VZV20..SED198608-198808

main69561-32030iSV2#..HT198608-198808

9015140005

main90151-40005

12 parts on this diagram · 2 diagrams in section
