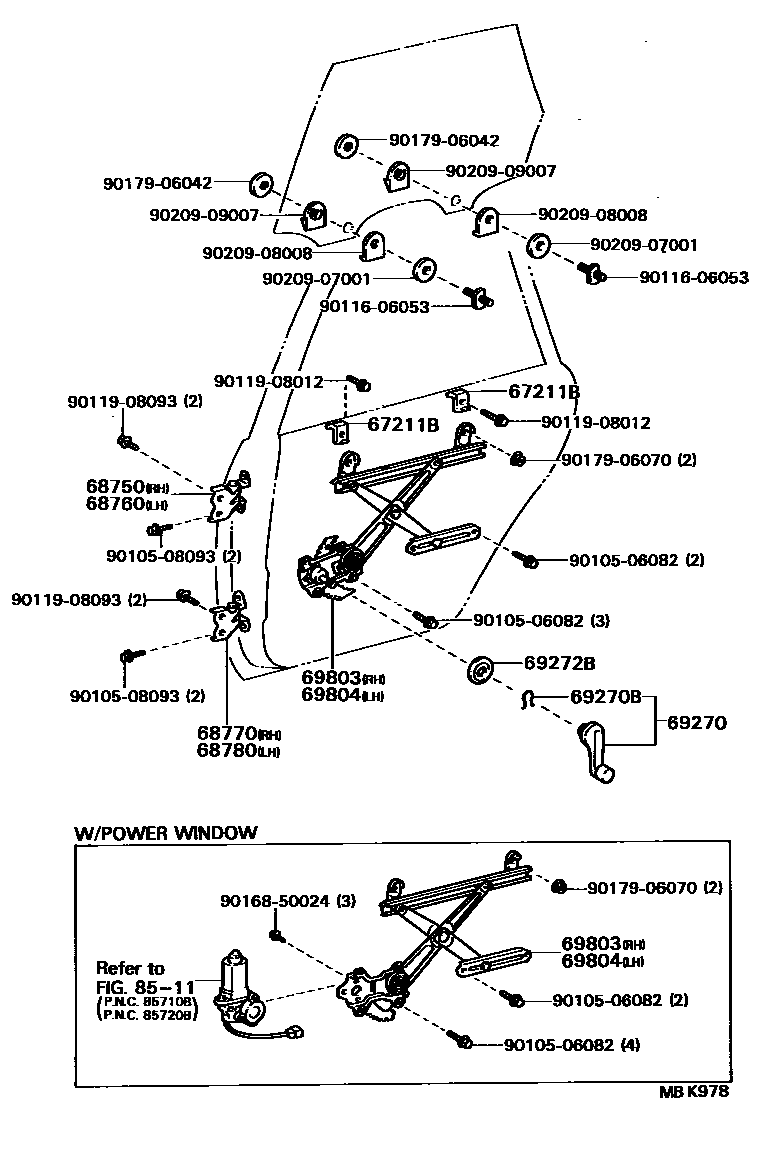

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32010×4iCV20,SV2#,VZV20..SED198608-198808

main67211-32020×4iSV2#..HT198608-198808

sub67211-32030

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32020iCV20,SV2#,VZV20198608-198808

sub68750-32030

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32020iCV20,SV2#,VZV20198608-198808

sub68760-32030

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32020iCV20,SV2#,VZV20198608-198808

sub68770-32030

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32020iCV20,SV2#,VZV20198608-198808

sub68780-32030

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-14×2iCV20,SV20,25..LT,VC,VL,XT198710-198808

DARK BLUE,TRIM8#

main69260-22030-15×2iCV20,SV20..LT,VC,VL,XT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main69260-22030-22×2iCV20,SV20..LT,VC,VL,XT198608-198710

MAROON,MAROON,TRIM3#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iCV20,SV20..LT,VC,VL,XT198608-198710

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iCV20,SV20..LT,VC,VL,XT198608-198710

NATURAL WHITE

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32020iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main69803-32030iSV2#..HT..(GT,VE,VR,VX)198608-198710

sub69803-32040

main69830-32030iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

main69830-32050iSV20..HT..VL198608-198710

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32020iCV20,SV20..SED..VL198712-198808

main69804-32030iSV20..HT..VL198708-198710

ETOILE

sub69804-32040

main69840-32030iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

main69840-32050iSV20,25..HT..VL198710-198808

8511

9010506082

main90105-06082

9010508093

main90105-08093

9011606053

main90116-06053

9011908012

main90119-08012

9011908093

main90119-08093

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

22 parts on this diagram · 2 diagrams in section
