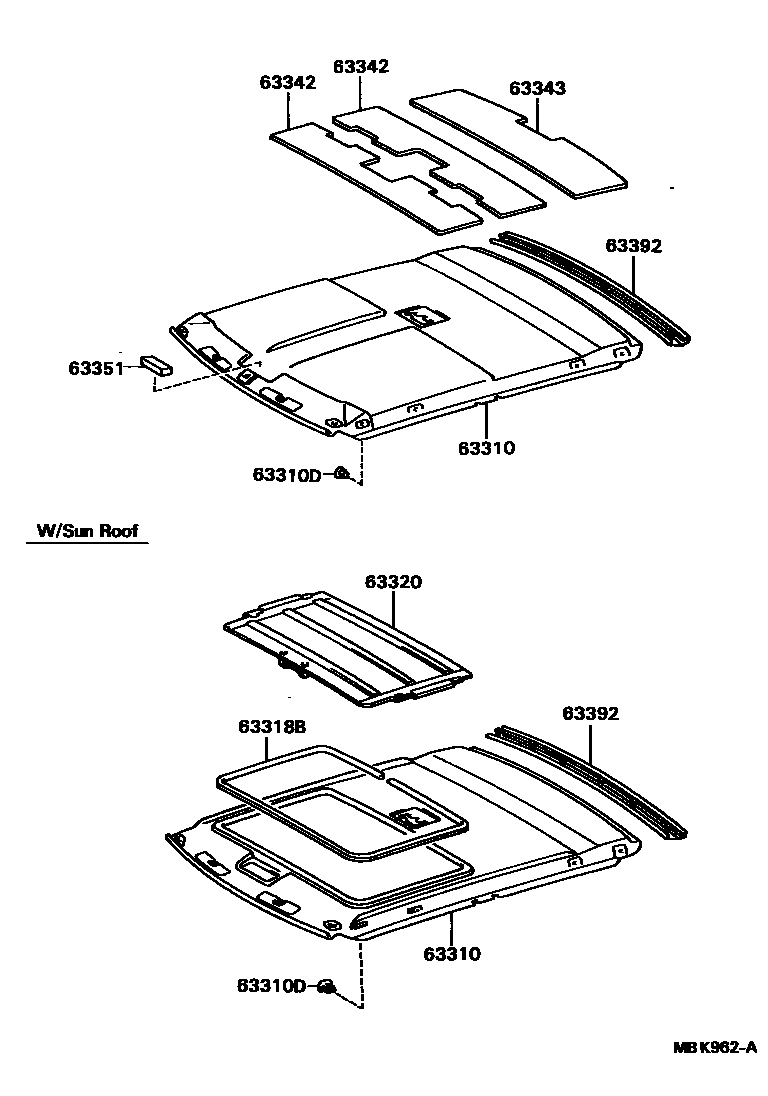

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-32170-03iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

GRAY,LIGHT GRAY,TRIM8#

main63310-32170-05iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

LIGHT BEIGE,TRIM3#,4#

main63310-32180-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/O SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

main63310-32180-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

LIGHT BEIGE,TRIM3#,4#

main63310-32190-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

main63310-32190-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

main63310-32370-02iSV20,25..HT..VL198710-198808

MAROON,TRIM3#

main63310-32370-04iSV20,25..HT..VL198710-198808

DARK BLUE,TRIM8#

main63310-32370-05iSV20,25..HT..VL198710-198808

DARK BEIGE,TRIM4#

main63310-32380-02iSV2#..HT..(GT,VE,VR,VX)198710-198808

MAROON,TRIM3#

sub63310-32360

main63310-32380-04iSV2#..HT..(GT,VE,VR,VX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub63310-32360

main63310-32380-05iSV2#..HT..(GT,VE,VR,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub63310-32360

63310DCLIP, ROOF HEADLINING

main90467-06048-02×2iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

main90467-06048-15×2iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,BEIGE,LIGHT BEIGE,TRIM3#,4#

main90467-06048-23×2iCV20,SV2#,VZV20..SED198608-198710

W/O SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

main90467-06048-34×2iCV20,SV2#,VZV20..SED198710-198808

LIGHT BLUE,TRIM8#

main90467-06072-02×2iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198807

main90467-06072-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

W/SUN ROOF,GRAY,LIGHT GRAY,TRIM8#

main90467-06072-04×2iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

DARK BLUE,TRIM8#

main90467-06072-05×2iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198710-198808

63318BMOULDING, ROOF HEADLINING SET, NO.1

main63318-32010-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

LIGHT GRAY,TRIM8#

sub63318-32030

main63318-32010-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub63318-32030

63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF

main63320-32010-03iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

GRAY,LIGHT GRAY,TRIM8#

sub63320-32011

main63320-32010-05iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

sub63320-32011

63342PAD, ROOF SILENCER, NO.2

main63342-32010×2iCV20,SV2#,VZV20198608-198808

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63341-32020iCV20,SV2#,VZV20..SED198608-198808

sub63341-22H92

main63343-32030iSV2#..HT198608-198808

sub63341-22H92

63351SILENCER, ROOF SIDE

main63351-32010iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

63392TRIM, ROOF HEADLINING, REAR

main63305-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main63305-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main63305-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main63305-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main63305-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main63305-32060-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main63305-32090-02iSV2#..HT198710-198808

MAROON,TRIM3#

main63305-32090-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main63305-32090-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

8 parts on this diagram · 2 diagrams in section
