MAT & CARPET

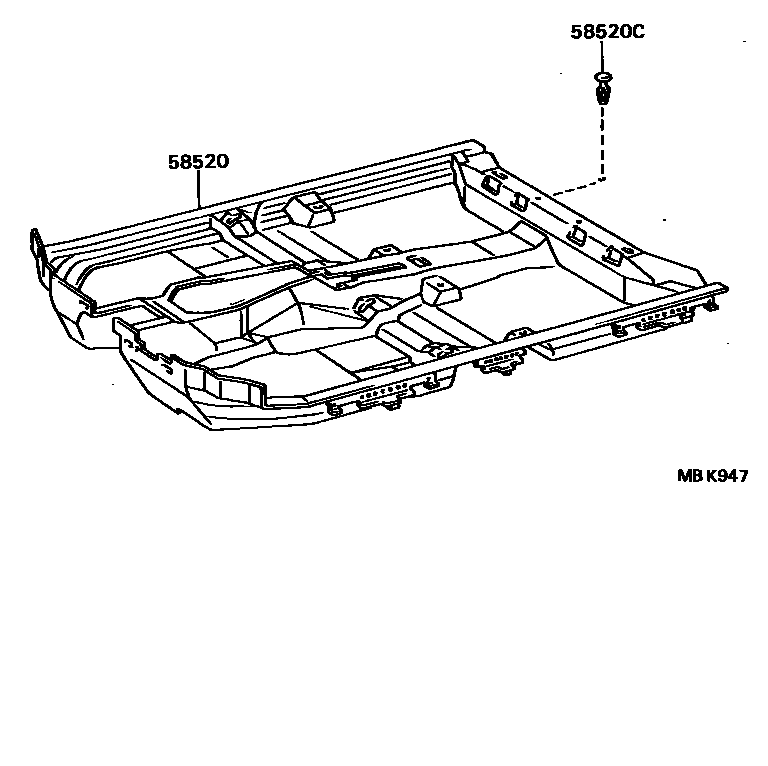

58520CARPET ASSY, FRONT FLOOR

main58510-32120-02iCV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

MAROON,TRIM3#

main58510-32120-04iCV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

DARK BLUE,TRIM8#

main58510-32120-05iCV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

DARK BEIGE,TRIM4#

main58510-32130-02iSV21,VZV20..GT,PRO,VX,ZX198608-198710

MAROON,MAROON,TRIM3#

sub58510-32340

main58510-32130-04iSV21,VZV20..GT,PRO,VX,ZX198710-198808

DARK BLUE,TRIM8#

sub58510-32340

main58510-32130-05iSV21..GT,VX,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58510-32340

main58510-32230-02iSV25198710-198808

MAROON,TRIM3#

sub58510-32290

main58510-32230-04iSV25198710-198808

DARK BLUE,TRIM8#

sub58510-32290

main58510-32230-05iSV25198710-198808

DARK BEIGE,TRIM4#

sub58510-32290

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×2iCV20,SV2#,VZV20198608-198710

BLACK,BLACK

sub90467-07049

2 parts on this diagram · 1 diagram in section
