BRAKE MAINTENANCE KIT

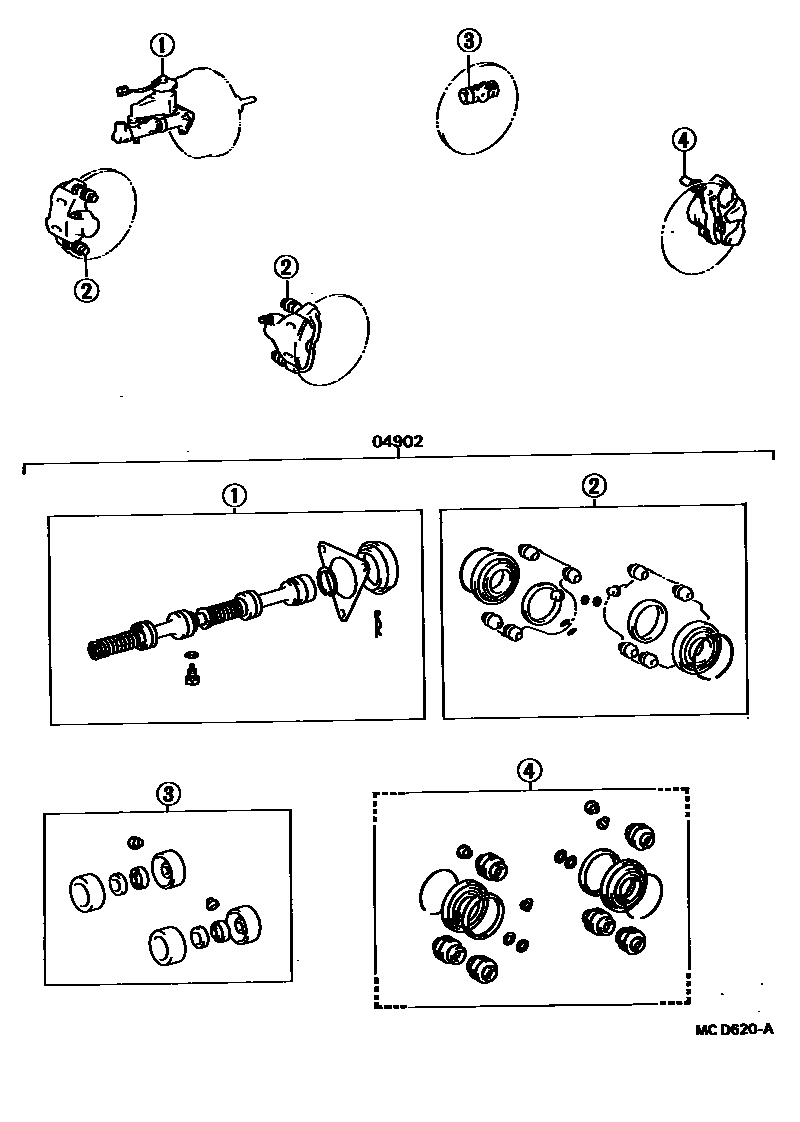

Parts diagram

04902MAINTENACE KIT, BRAKE

main04902-32020i198608-198808

main04902-32030i198608-198808

main04902-32040i198710-198808

main04902-32040i198608-198710

main04902-32050i198704-198710

W/ESC

main04902-32050i198710-198801

main04902-32051i198801-198808

1 parts on this diagram · 1 diagram in section
