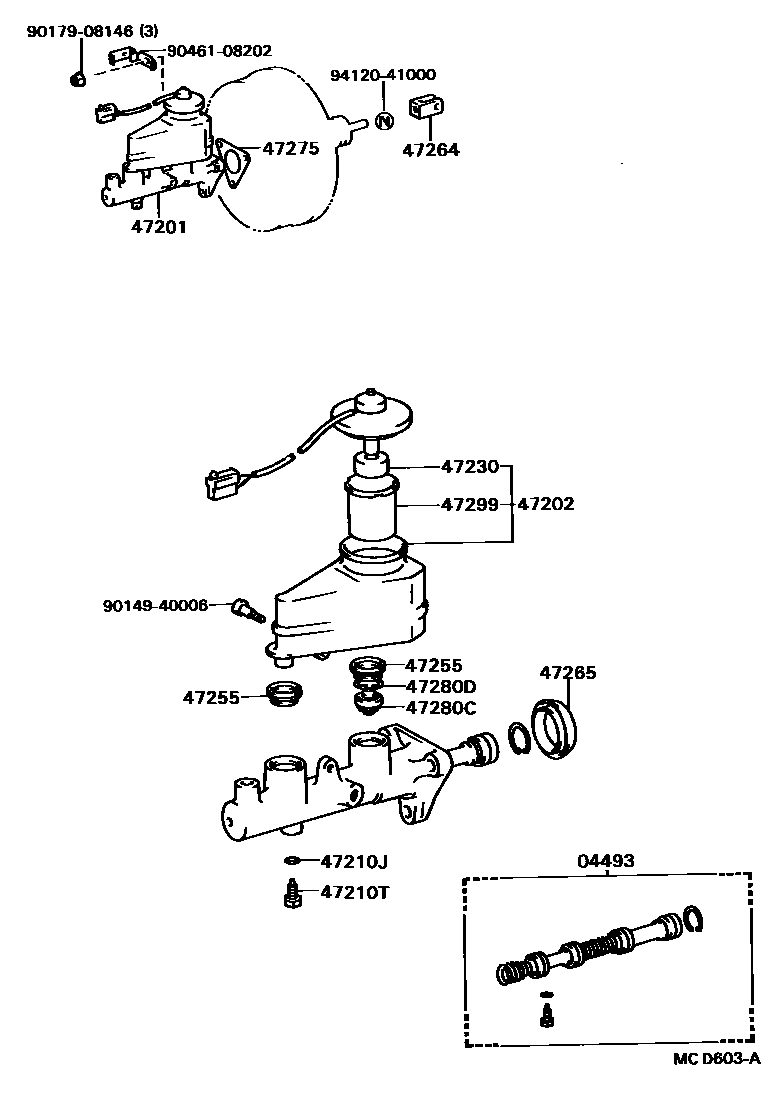

BRAKE MASTER CYLINDER

0001 1 0002 1W/ESC

04493CYLINDER KIT, BRAKE MASTER

main04493-32030iCV20,SV20198608-198808

main04493-32040iSV21,25,VZV20198608-198808

sub04493-33030

main04493-32060iSV21,VZV20..GT,PRO198710-198801

W(ESC)

sub04493-32061

main04493-32060iSV21,VZV20..GT,PRO198704-198710

W/ESC

sub04493-32061

main04493-32061iSV25,VZV20198710-198808

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-32130iCV20,SV20198608-198808

main47201-32140iSV21,25,VZV20198608-198808

main47201-32200iSV21,VZV20..GT,PRO198704-198710

W/ESC

main47201-32200iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-32070iSV21..VE,VX,ZT,ZX198608-198808

main47202-32080iCV20,SV20198608-198808

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198608-198808

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iSV21,VZV20..GT,PRO198704-198710

W/ESC

main90109-06008iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

main90109-06077iCV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20110iCV20,SV2#,VZV20198608-198808

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iCV20,SV20198608-198808

main47255-16010iSV21..VE,VX,ZT,ZX198608-198808

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main47264-20040iSV21,VZV20..GT,PRO198608-198808

47265BOOT, MASTER CYLINDER

main47265-20050iSV21..VE,VX,ZT,ZX198608-198808

main47265-32010iCV20,SV20198608-198808

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iCV20,SV2#,VZV20198608-198808

47280CVALVE ASSY, FAST FILL

main47280-32010iCV20,SV20198608-198808

47280DRING, SNAP(FOR FAST FILL VALVE)

main96151-02000iCV20,SV20198608-198808

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iCV20,SV2#,VZV20198608-198808

9014940006

main90149-40006

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

17 parts on this diagram · 2 diagrams in section
