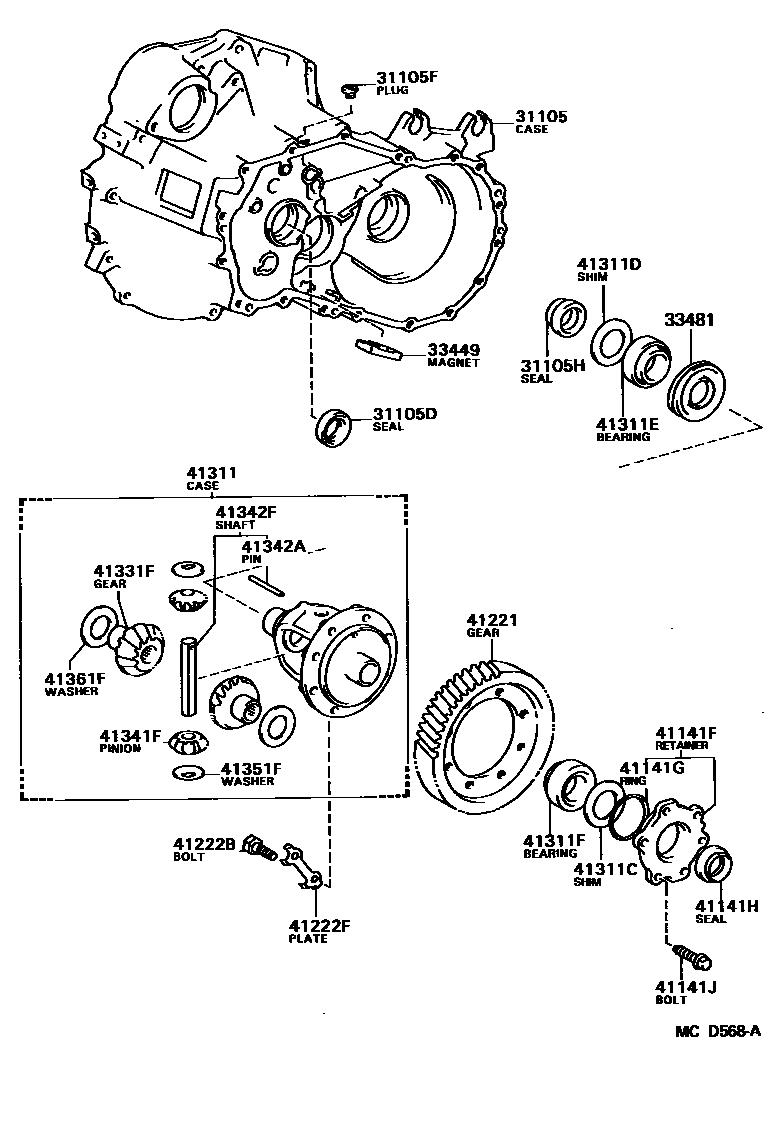

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1E56F2 0004 1E56F5 0005 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32014iCV20,SV20,25..5F198608-198808

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32020iSV21..5F..(VE,VX,ZT,ZX)198608-198808

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31115-20012iVZV20..5F198704-198804

sub31115-20013

sub90407-16017

main31115-20013iVZV20..5F198804-198808

sub31115-20014

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-30002iCV20,SV2#..5F198608-198808

sub90311-30006

main90311-30006iVZV20..5F198704-198808

sub90311-30017

31105FPLUG(FOR TRANSAXLE CASE)

main90341-10065iCV20,SV2#..5F198608-198808

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-35014iCV20,SV2#..5F198608-198808

sub90311-35026

33449MAGNET, TRANSMISSION

main33449-20010iSV25,VZV20..5F198704-198808

main33449-32010iCV20,SV20,21..5F198608-198808

sub33449-32020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-17010iVZV20..5F198704-198808

main33481-20120iSV25198710-198808

main33481-32010iCV20,SV20..5F198608-198808

main33481-32020iSV21..5F198608-198808

main33481-32030iSV25198710-198808

41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING

main41101-32010iCV20,SV2#..5F198608-198808

sub41101-32011

sub90311-35048

main41141-32020iCV20,SV2#..4FC198608-198703

sub41141-32040

main41141-32040iCV20,SV2#,VZV20..4FC198703-198709

main41141-32041iCV20,SV2#,VZV20..4FC198709-198808

41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90301-63004iCV20,SV2#..5F198608-198808

main90301-99018iCV20,SV2#,VZV20..4FC198608-198808

41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

main90311-35010iCV20,SV2#,VZV20..4FC198608-198709

sub90311-35019

main90311-35014iCV20,SV2#..5F198608-198808

sub90311-35026

main90311-35019iCV20,SV20,21,VZV20..4FC198709-198808

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08061iCV20,SV20,21..5F198608-198808

sub91511-C0825

main91611-60825iCV20,SV2#,VZV20..4FC198608-198808

sub91611-B0825

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12260iSV25198710-198808

main41221-20220iVZV20..4FC;SV21..5F..GT198608-198808

main41221-20240iVZV20..5F198704-198808

main41221-32030iSV21..4FC..(VE,VX,ZT,ZX)198608-198808

main41221-32040iSV21..4FC..GT198608-198808

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iVZV20..4FC198608-198808

main90105-12133iVZV20..5F198704-198705

sub90105-12154

main90105-12150iSV25198710-198808

main90105-12154iVZV20..5F198705-198808

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010iCV20,SV20,21198608-198808

41311CASE, FRONT DIFFERENTIAL

main41301-32010iCV20,SV2#..5F198608-198808

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iCV20,SV2#,VZV20..4FC198608-198709

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

main41301-32021iCV20,SV2#,VZV20..4FC198709-198808

sub41301-32022

main41302-17012iVZV20..5F198704-198808

sub41302-17013

sub33481-17011

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-45001iCV20,SV2#..5F198608-198710

main90564-45001iCV20,SV20,21..5F198710-198808

main90564-45002iCV20,SV20,21..5F198710-198808

main90564-45002iCV20,SV2#..5F198608-198710

main90564-45003iCV20,SV2#..5F198608-198710

main90564-45003iCV20,SV20,21..5F198710-198808

main90564-45004iCV20,SV2#..5F198608-198710

main90564-45004iCV20,SV20,21..5F198710-198808

main90564-45005iCV20,SV2#..5F198608-198710

main90564-45005iCV20,SV20,21..5F198710-198808

main90564-45006iCV20,SV20,21..5F198710-198808

main90564-45006iCV20,SV2#..5F198608-198710

main90564-45007iCV20,SV2#..5F198608-198710

main90564-45007iCV20,SV20,21..5F198710-198808

main90564-45008iCV20,SV20,21..5F198710-198808

main90564-45008iCV20,SV2#..5F198608-198710

main90564-45009iCV20,SV2#..5F198608-198710

main90564-45009iCV20,SV20,21..5F198710-198808

main90564-45010iCV20,SV20,21..5F198710-198808

main90564-45010iCV20,SV2#..5F198608-198710

main90564-45011iVZV20..4FC;CV20,SV20,21198710-198808

main90564-45011iCV20,SV2#,VZV20..4FC198608-198710

main90564-45012iCV20,SV2#..5F198608-198710

main90564-45012iCV20,SV20,21..5F198710-198808

main90564-45013iCV20,SV2#..5F198608-198710

main90564-45013iCV20,SV20,21..5F198710-198808

main90564-45014iCV20,SV2#..5F198608-198710

main90564-45014iCV20,SV20,21..5F198710-198808

main90564-45015iCV20,SV2#..5F198608-198710

main90564-45015iCV20,SV20,21..5F198710-198808

main90564-45016iCV20,SV2#..5F198608-198710

main90564-45016iCV20,SV20,21..5F198710-198808

main90564-45017iCV20,SV2#..5F198608-198710

main90564-45017iCV20,SV20,21..5F198710-198808

main90564-45018iCV20,SV2#..5F198608-198710

main90564-45018iCV20,SV20,21..5F198710-198808

main90564-45019iCV20,SV2#..5F198608-198710

main90564-45019iCV20,SV20,21..5F198710-198808

main90564-76001iSV25,VZV20..5F198710-198808

main90564-76001iVZV20..5F198704-198710

main90564-76002iSV25,VZV20..5F198710-198808

main90564-76002iVZV20..5F198704-198710

main90564-76003iVZV20..5F198704-198710

main90564-76003iSV25,VZV20..5F198710-198808

main90564-76004iSV25,VZV20..5F198710-198808

main90564-76004iVZV20..5F198704-198710

main90564-76005iVZV20..5F198704-198710

main90564-76005iSV25,VZV20..5F198710-198808

main90564-76006iSV25,VZV20..5F198710-198808

main90564-76006iVZV20..5F198704-198710

main90564-76007iVZV20..5F198704-198710

main90564-76007iSV25,VZV20..5F198710-198808

main90564-76008iVZV20..5F198704-198710

main90564-76008iSV25,VZV20..5F198710-198808

main90564-76009iVZV20..5F198704-198710

main90564-76009iSV25,VZV20..5F198710-198808

main90564-76010iVZV20..5F198704-198710

main90564-76010iSV25,VZV20..5F198710-198808

main90564-76011iVZV20..5F198704-198710

main90564-76011iSV25,VZV20..5F198710-198808

main90564-76012iSV25,VZV20..5F198710-198808

main90564-76012iVZV20..5F198704-198710

main90564-76013iSV25,VZV20..5F198710-198808

main90564-76013iVZV20..5F198704-198710

main90564-76014iSV25,VZV20..5F198710-198808

main90564-76014iVZV20..5F198704-198710

main90564-76015iSV25,VZV20..5F198710-198808

main90564-76015iVZV20..5F198704-198710

main90564-76016iVZV20..5F198704-198710

main90564-76016iSV25,VZV20..5F198710-198808

main90564-76017iSV25,VZV20..5F198710-198808

main90564-76017iVZV20..5F198704-198710

main90564-76018iVZV20..5F198704-198710

main90564-76018iSV25,VZV20..5F198710-198808

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90564-45001iCV20,SV2#,VZV20..4FC198608-198709

main90564-45002iCV20,SV2#,VZV20..4FC198608-198709

main90564-45003iCV20,SV2#,VZV20..4FC198608-198709

main90564-45004iCV20,SV2#,VZV20..4FC198608-198709

main90564-45005iCV20,SV2#,VZV20..4FC198608-198709

main90564-45006iCV20,SV2#,VZV20..4FC198608-198709

main90564-45007iCV20,SV2#,VZV20..4FC198608-198709

main90564-45008iCV20,SV2#,VZV20..4FC198608-198709

main90564-45009iCV20,SV2#,VZV20..4FC198608-198709

main90564-45010iCV20,SV2#,VZV20..4FC198608-198709

main90564-45011iCV20,SV2#..5F198608-198710

main90564-45011iCV20,SV20,21..5F198710-198808

main90564-45012iCV20,SV2#,VZV20..4FC198608-198709

main90564-45013iCV20,SV2#,VZV20..4FC198608-198709

main90564-45014iCV20,SV2#,VZV20..4FC198608-198709

main90564-45015iCV20,SV2#,VZV20..4FC198608-198709

main90564-45016iCV20,SV2#,VZV20..4FC198608-198709

main90564-45017iCV20,SV2#,VZV20..4FC198608-198709

main90564-45018iCV20,SV2#,VZV20..4FC198608-198709

main90564-45019iCV20,SV2#,VZV20..4FC198608-198709

main90564-49001iCV20,SV2#,VZV20..4FC198709-198710

main90564-49001iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49002iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49002iCV20,SV2#,VZV20..4FC198709-198710

main90564-49003iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49003iCV20,SV2#,VZV20..4FC198709-198710

main90564-49004iCV20,SV2#,VZV20..4FC198709-198710

main90564-49004iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49005iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49005iCV20,SV2#,VZV20..4FC198709-198710

main90564-49006iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49006iCV20,SV2#,VZV20..4FC198709-198710

main90564-49007iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49007iCV20,SV2#,VZV20..4FC198709-198710

main90564-49008iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49008iCV20,SV2#,VZV20..4FC198709-198710

main90564-49009iCV20,SV2#,VZV20..4FC198709-198710

main90564-49009iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49010iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49010iCV20,SV2#,VZV20..4FC198709-198710

main90564-49011iCV20,SV2#,VZV20..4FC198709-198710

main90564-49011iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49012iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49012iCV20,SV2#,VZV20..4FC198709-198710

main90564-49013iCV20,SV2#,VZV20..4FC198709-198710

main90564-49013iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49014iCV20,SV2#,VZV20..4FC198709-198710

main90564-49014iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49015iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49015iCV20,SV2#,VZV20..4FC198709-198710

main90564-49016iCV20,SV2#,VZV20..4FC198709-198710

main90564-49016iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49017iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49017iCV20,SV2#,VZV20..4FC198709-198710

main90564-49018iCV20,SV2#,VZV20..4FC198709-198710

main90564-49018iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49019iCV20,SV20,21,VZV20..4FC198710-198808

main90564-49019iCV20,SV2#,VZV20..4FC198709-198710

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iCV20,SV2#198608-198808

main90366-57001iVZV20..5F198704-198808

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iVZV20..4FC198608-198808

sub90366-40064

main90366-44001iCV20,SV2#198709-198808

main90366-50014iVZV20..5F198704-198808

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12030iSV25198710-198808

main41331-17010iVZV20..5F198704-198808

main41331-20020iSV25198710-198808

main41331-32010iVZV20..4FC198608-198808

41341FPINION, FRONT DIFFERENTIAL

main41341-20011iSV25198710-198808

main41341-20020iVZV20..5F198704-198808

main41341-20030iSV25198710-198808

main41341-30011iVZV20..4FC;CV20,SV20,21198608-198808

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-05028iSV25198710-198808

main90250-06058iCV20,SV2#198608-198808

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12040iSV25198710-198808

main41342-20040iSV25198710-198808

main41342-39025iCV20,SV2#198608-198805

sub41342-32010

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iSV25198710-198808

main41351-20010iVZV20..5F198704-198808

main41351-20020iSV25198710-198808

main41351-32010iVZV20..4FC198608-198808

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iSV25198710-198808

main41361-12340iSV25198710-198808

main41361-12350iSV25198710-198808

main41361-12360iSV25198710-198808

main41361-12370iSV25198710-198808

main41361-12380iSV25198710-198808

main41361-12390iSV25198710-198808

main41361-12400iSV25198710-198808

main41361-12410iSV25198710-198808

main41361-12420iSV25198710-198808

main41361-22020iCV20,SV2#198608-198710

main41361-22020iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22030iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22030iCV20,SV2#198608-198710

main41361-22040iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22040iVZV20..4FC198608-198710

main41361-22140iCV20,SV2#198608-198710

main41361-22140iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22150iVZV20..4FC198608-198710

main41361-22150iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22160iVZV20..4FC;CV20,SV20,21198710-198808

main41361-22160iCV20,SV2#198608-198710

main41362-17010iVZV20..5F198710-198808

main41362-17010iVZV20..5F198704-198710

main41362-17020iVZV20..5F198710-198808

main41362-17020iVZV20..5F198704-198710

main41362-17030iVZV20..5F198710-198808

main41362-17030iVZV20..5F198704-198710

main41362-17040iVZV20..5F198710-198808

main41362-17040iVZV20..5F198704-198710

main41362-17050iVZV20..5F198710-198808

main41362-17050iVZV20..5F198704-198710

main41362-17060iVZV20..5F198704-198710

main41362-17060iVZV20..5F198710-198808

main41362-17070iVZV20..5F198704-198710

main41362-17070iVZV20..5F198710-198808

24 parts on this diagram · 5 diagrams in section
