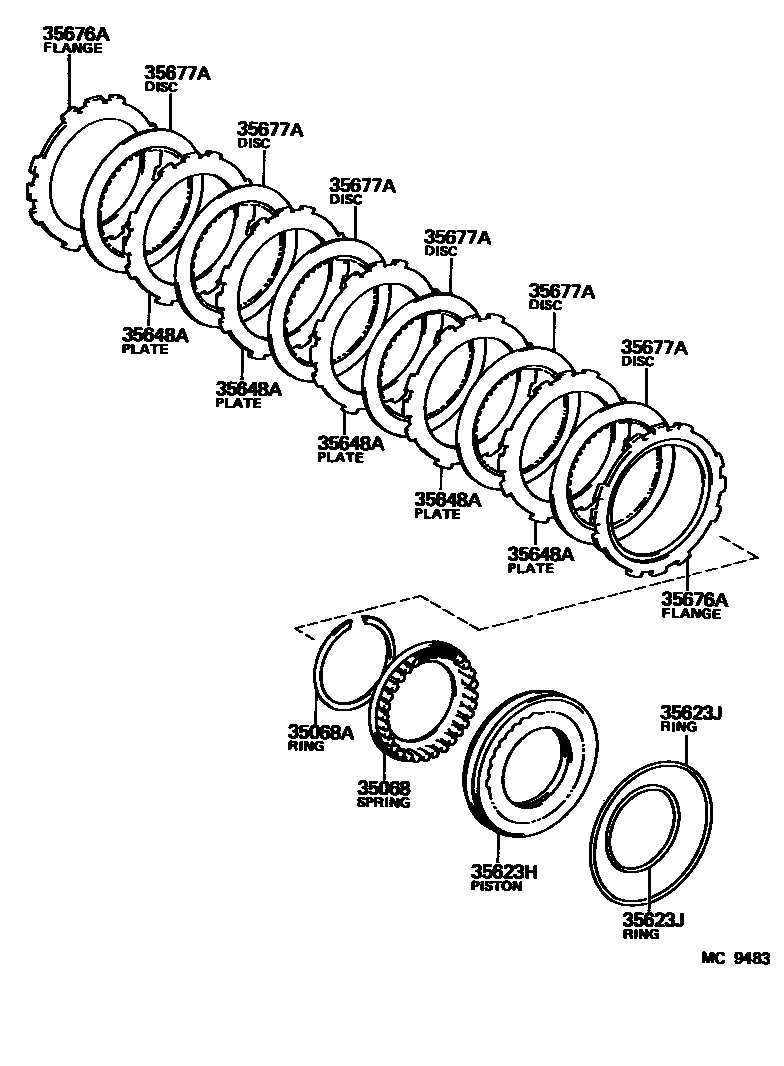

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iCV20,SV20,21,VZV20..4FC198608-198808

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iCV20,SV2#,VZV20..4FC198608-198808

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iSV21,VZV20..4FC198608-198808

main35623-32020iCV20,SV20..4FC198612-198808

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iCV20,SV2#,VZV20..4FC198608-198710

INNER

main90301-94001iCV20,SV20,21,VZV20..4FC198710-198808

main90301-99022iCV20,SV2#,VZV20..4FC198608-198710

OUTER

main90301-99022iCV20,SV20,21,VZV20..4FC198710-198808

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iCV20,SV2#,VZV20..4FC198608-198808

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iCV20,SV2#,VZV20..4FC198608-198808

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iCV20,SV2#,VZV20..4FC198608-198808

7 parts on this diagram · 1 diagram in section
