SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39096iCV20,SV20..4FC198608-198808

main33403-39155iSV21..4FC198608-198808

main33403-39156iVZV20..4FC198704-198808

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-32010iCV20,SV2#..4FC198608-198808

main33404-32020iVZV20..4FC198704-198808

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iCV20,SV20,21,VZV20..4FC198608-198808

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iCV20,SV2#..4FC198608-198808

main33485-32010iVZV20..4FC198704-198808

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCV20,SV2#,VZV20..4FC198608-198808

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCV20,SV2#,VZV20..4FC198608-198808

9161140612

main91611-40612

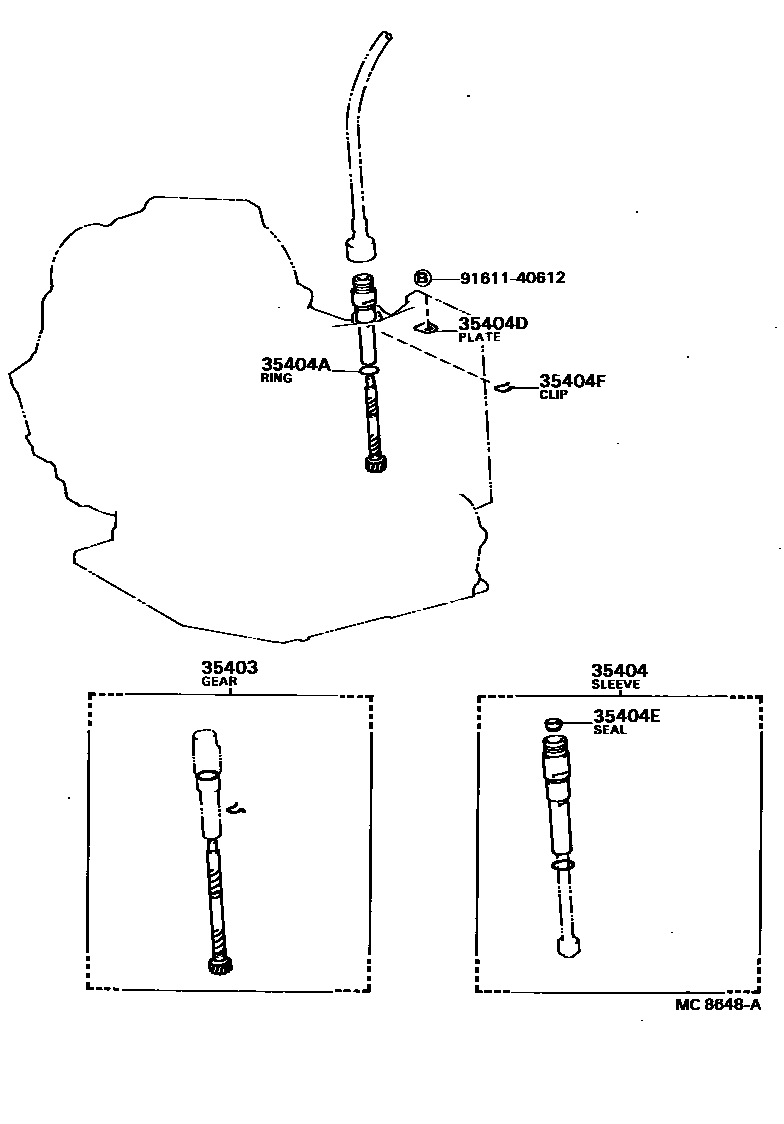

7 parts on this diagram · 1 diagram in section
