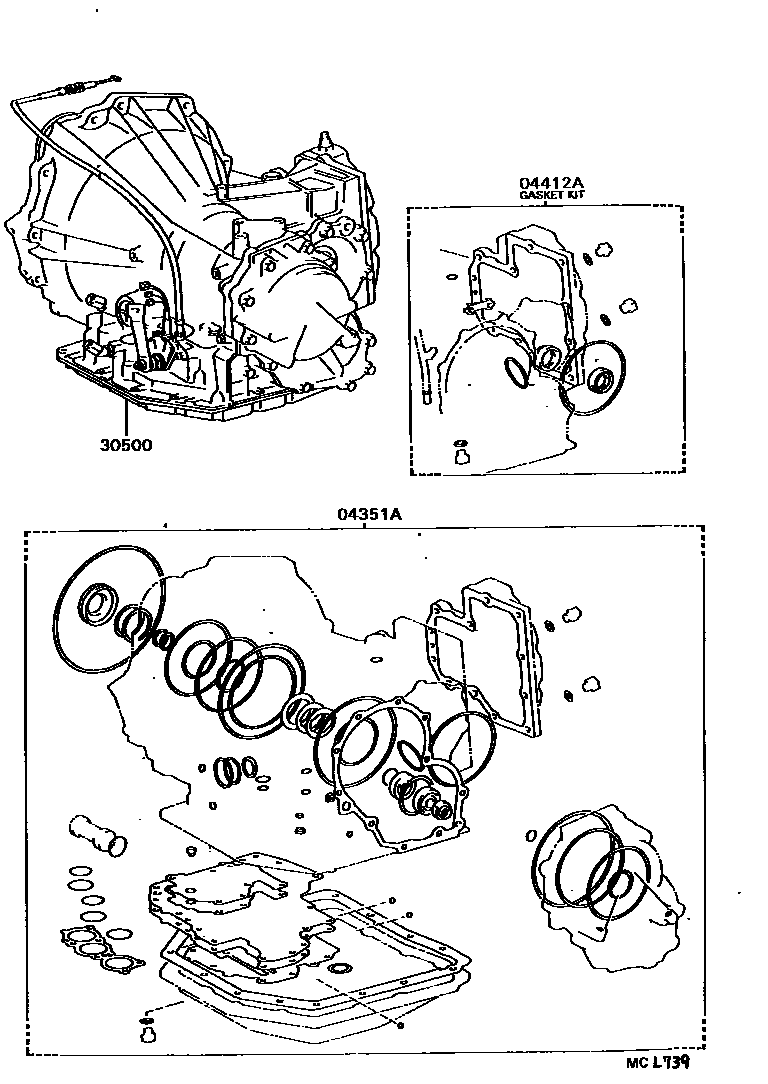

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iCV20,SV20..4FC198608-198808

main04351-20090iSV21,VZV20..4FC198608-198808

04412AGASKET KIT, DIFFERENTIAL CARRIER(ATM)

main04412-16020iCV20,SV20,21..4FC198710-198808

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32150iSV20..4FC198608-198708

main30500-32151iSV20..4FC198708-198808

sub30500-32152

sub91642-H0822

main30500-32200iCV20..4FC198608-198708

main30500-32201iCV20..4FC198708-198808

sub30500-32202

sub91642-H0822

main30500-32220iSV21..4FC..(VE,VX,ZT,ZX)198608-198704

main30500-32250iSV21..4FC..GT198608-198708

main30500-32251iSV21..4FC..GT198708-198808

sub30500-32252

sub90105-10203

sub91642-H0822

main30500-32260iVZV20..4FC198704-198708

main30500-32261iVZV20..4FC198708-198808

sub30500-32262

sub90105-10203

sub91642-H0822

main30500-32320iSV21..4FC..(VE,VX,ZT,ZX)198704-198808

sub30500-32321

sub90105-10203

sub91642-H0822

3 parts on this diagram · 1 diagram in section
