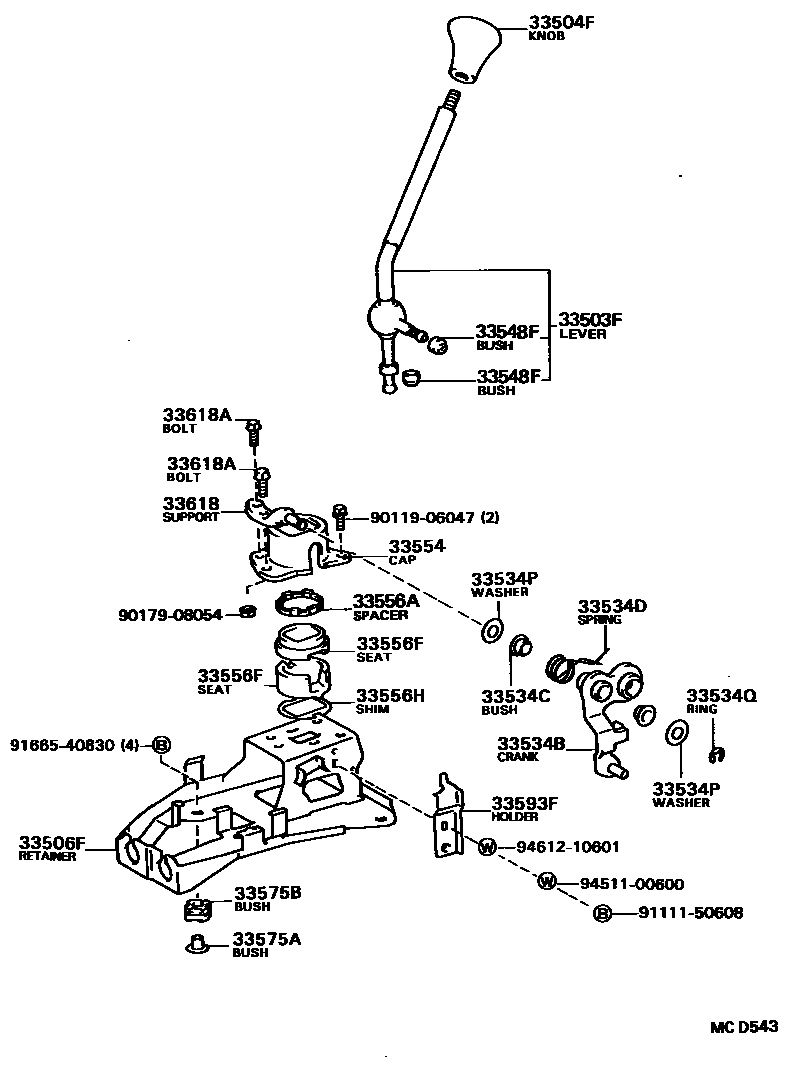

SHIFT LEVER & RETAINER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12231iCV20,SV2#,VZV20..5F198608-198808

main33503-32110iCV20,SV2#,VZV20..4FC198608-198808

main33503-32130iSV25198710-198804

main33503-32131iSV25,VZV20..5F198804-198808

sub33503-32132

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-02iSV21,VZV20..5F..(GT,PRO)198710-198808

MAROON,TRIM3#

sub33504-12150

sub33504-22140

main33504-12150-02iSV21,VZV20..5F..(GT,PRO)198608-198710

MAROON,MAROON,TRIM3#

sub33504-12150

sub33504-22140

main33504-12150-04iSV21,VZV20..5F..(GT,PRO)198710-198808

DARK BLUE,TRIM8#

sub33504-12150

sub33504-22140

main33504-12150-04iSV21,VZV20..5F..(GT,PRO)198608-198710

BLUE,DARK BLUE,TRIM8#

sub33504-12150

sub33504-22140

main33504-12150-05iSV21..5F..GT198710-198808

DARK BEIGE,TRIM4#

sub33504-12150

sub33504-22140

main33504-12150-05iSV21,VZV20..5F..(GT,PRO)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub33504-12150

sub33504-22140

main33504-14070-24iSV20..SED..5F..(LT,VC,VL,XT)198710-198808

DARK BLUE,TRIM8#

sub33504-14070

sub33504-14050

main33504-14070-24iSV20..SED..5F..(LT,VC,VL,XT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub33504-14070

sub33504-14050

main33504-14070-32iSV20..SED..5F..(LT,VC,VL,XT)198710-198808

MAROON,TRIM3#

sub33504-14070

sub33504-14050

main33504-14070-32iSV20..SED..5F..(LT,VC,VL,XT)198608-198710

MAROON,MAROON,TRIM3#

sub33504-14070

sub33504-14050

main33504-14070-35iSV20..SED..5F..(LT,VC,VL,XT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub33504-14070

sub33504-14050

main33504-14070-35iSV20..SED..5F..(LT,VC,VL,XT)198710-198808

DARK BEIGE,TRIM4#

sub33504-14070

sub33504-14050

main33504-24010-52iSV20..5F..XT198710-198807

sub33504-24010

main33504-24010-52iSV20..5F..XT198710-198807

sub33504-24010

main33504-24010-52iSV20..5F..XT198608-198710

MAROON,MAROON,TRIM3#

sub33504-24010

main33504-24010-52iSV20..SED..5F..VL198710-198710

sub33504-24010

main33504-24010-52iSV20..5F..XT198608-198710

SALOON,MAROON,MAROON,TRIM3#

sub33504-24010

main33504-24010-52iSV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198807

MAROON,TRIM3#

sub33504-24010

main33504-24010-52iSV20..5F..XT198608-198710

EXTRA,MAROON,MAROON,TRIM3#

sub33504-24010

main33504-24010-54iCV20..5F198608-198710

BLUE,DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-54iSV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198807

sub33504-24010

main33504-24010-54iSV20..5F..XT198710-198807

sub33504-24010

main33504-24010-54iSV20..5F..XT198710-198807

DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-54iSV20..SED..5F..VL198710-198710

sub33504-24010

main33504-24010-55iSV20..5F..XT198710-198808

sub33504-24010

main33504-24010-55iCV20..5F198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub33504-24010

main33504-24010-55iSV20..SED..5F..VL198710-198710

sub33504-24010

main33504-24010-55iSV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

DARK BEIGE,TRIM4#

sub33504-24010

main33504-24010-55iSV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub33504-24010

main33504-24010-D0iSV20..SED..5F..VL198807-198808

MAROON,TRIM3#

sub33504-24010

main33504-24010-D0iSV20..5F..XT198807-198808

sub33504-24010

main33504-24010-D0iSV20..5F..XT198807-198808

sub33504-24010

main33504-24010-J0iSV20..SED..5F..VL198807-198808

sub33504-24010

main33504-24010-J0iSV20..SED..5F..VL198807-198808

sub33504-24010

main33504-24010-J0iSV20..5F..XT198807-198808

DARK BLUE,TRIM8#

sub33504-24010

main33542-32040-12iCV20,SV20,21,VZV20..4FC198710-198808

MAROON,TRIM3#

sub33542-32040

main33542-32040-12iCV20,SV2#,VZV20..4FC198608-198710

MAROON,MAROON,TRIM3#

sub33542-32040

main33542-32040-15iCV20,SV20,21..4FC198710-198808

DARK BEIGE,TRIM4#

sub33542-32040

main33542-32040-15iCV20,SV2#,VZV20..4FC198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub33542-32040

main33542-32040-34iCV20,SV2#,VZV20..4FC198608-198710

BLUE,DARK BLUE,TRIM8#

sub33542-32040

main33542-32040-34iCV20,SV20,21,VZV20..4FC198710-198808

DARK BLUE,TRIM8#

sub33542-32040

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-32050iCV20,SV2#,VZV20..5F198608-198808

33534BCRANK, SELECTING BELL, NO.1

main33509-12050iCV20,SV2#,VZV20..5F198608-198808

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013iCV20,SV2#,VZV20..5F198608-198808

main90386-12034iSV25,VZV20..5F198804-198808

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20062iCV20,SV2#,VZV20..5F198608-198808

main90508-20084iSV25,VZV20..5F198804-198808

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12029iCV20,SV2#,VZV20..5F198608-198808

main90201-12052iSV25,VZV20..5F198804-198808

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iCV20,SV2#,VZV20..5F198608-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCV20,SV2#,VZV20..5F198608-198808

33554CAP, SHIFT LEVER

main33554-12040iCV20,SV2#,VZV20..5F198608-198808

33556ASPACER (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90561-35001iCV20,SV2#,VZV20..5F198608-198808

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-12020iCV20,SV2#,VZV20..5F198608-198710

LWR

main33556-12020iCV20,SV2#,VZV20..5F198710-198808

main33556-12030iCV20,SV2#,VZV20..5F198710-198808

main33556-12030iCV20,SV2#,VZV20..5F198608-198710

UPR

main33556-20020iSV25,VZV20..5F198804-198808

33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90564-30003iCV20,SV2#,VZV20..5F198608-198710

main90564-30003iCV20,SV2#,VZV20..5F198710-198808

main90564-30004iCV20,SV2#,VZV20..5F198710-198808

main90564-30004iCV20,SV2#,VZV20..5F198608-198710

main90564-30005iCV20,SV20,21..5F198710-198808

main90564-30005iCV20,SV2#,VZV20..5F198608-198710

main90564-30006iCV20,SV20,21..5F198710-198808

main90564-30006iCV20,SV2#,VZV20..5F198608-198710

main90564-30007iCV20,SV2#,VZV20..5F198608-198710

main90564-30007iCV20,SV2#,VZV20..5F198710-198808

main90564-30008iCV20,SV20,21..5F198710-198808

main90564-30008iCV20,SV2#,VZV20..5F198608-198710

main90564-30009iCV20,SV20,21..5F198710-198808

main90564-30009iCV20,SV2#,VZV20..5F198608-198710

main90564-30010iCV20,SV2#,VZV20..5F198710-198808

main90564-30010iCV20,SV2#,VZV20..5F198608-198710

main90564-30011iCV20,SV20,21..5F198710-198808

main90564-30011iCV20,SV2#,VZV20..5F198608-198710

main90564-30012iCV20,SV2#,VZV20..5F198710-198808

main90564-30012iCV20,SV2#,VZV20..5F198608-198710

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-32040iSV25,VZV20..5F198804-198808

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031iCV20,SV2#,VZV20..5F198608-198808

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10018iCV20,SV2#,VZV20..5F198608-198808

main90389-10020iSV25,VZV20..5F198805-198808

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-12020iCV20,SV2#,VZV20..5F198608-198808

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-12021iCV20,SV2#,VZV20..5F198608-198808

sub33618-12040

33618ABOLT (FOR SELECTING BELLCRANK SUPPORT)

main90105-08078iCV20,SV2#,VZV20..5F198608-198710

main90105-08078iCV20,SV20,21..5F198710-198808

main90119-06268iCV20,SV2#,VZV20..5F198710-198808

main90119-06268iCV20,SV2#,VZV20..5F198608-198710

9011906047

main90119-06047

9017908054

main90179-08054

9111150608

main91111-50608

9166540830

main91665-40830

9451100600

main94511-00600

9461210601

main94612-10601

25 parts on this diagram · 6 diagrams in section
