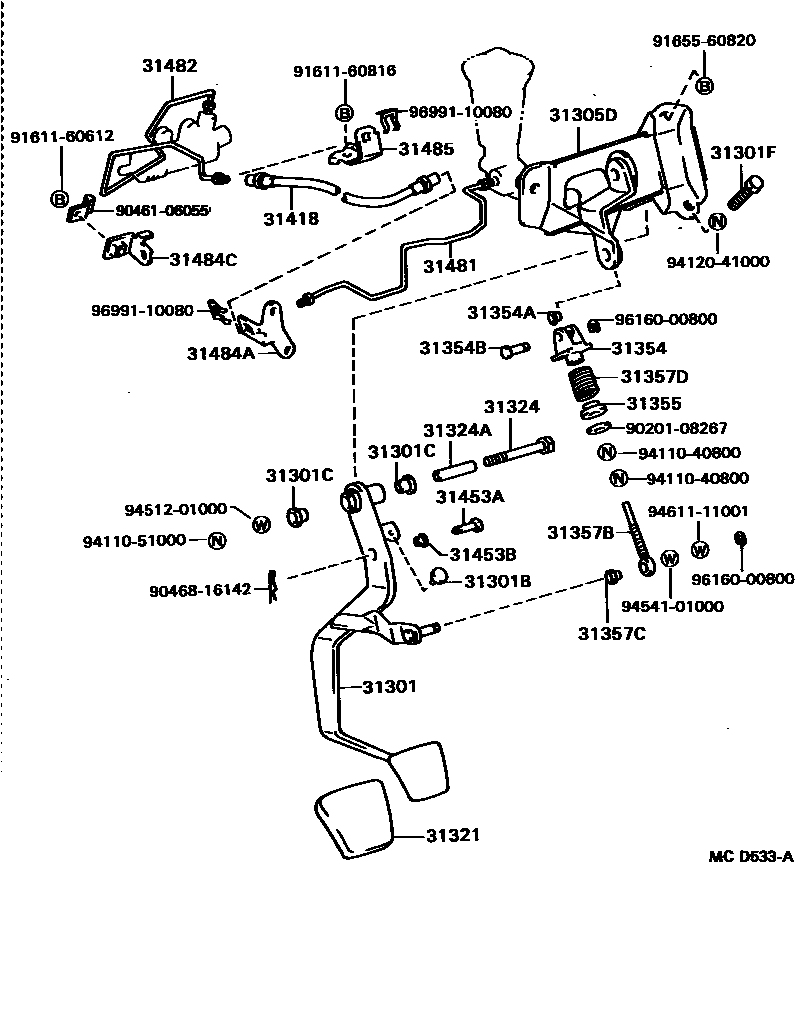

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-32050iCV20,SV20..5F198608-198808

main31301-32060iSV21,VZV20..5F198608-198808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iCV20,SV20..5F198608-198808

main90541-07020iSV21,VZV20..5F198608-198808

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCV20,SV2#,VZV20..5F198608-198808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCV20,SV2#,VZV20..5F198608-198808

31305DSUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-32050iCV20,SV2#..5F..(LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198808

main55107-32060iSV21,VZV20..5F..(GT,PRO)198608-198808

31321PAD, CLUTCH PEDAL

main31321-14020iCV20,SV2#,VZV20..5F198608-198808

31324SHAFT, CLUTCH PEDAL

main90101-10039iCV20,SV20..5F198608-198808

main90101-10273iSV21,VZV20..5F198608-198808

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCV20,SV2#,VZV20..5F198608-198808

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-12010iSV21,VZV20..5F198608-198808

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iSV21,VZV20..5F198608-198808

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iSV21,VZV20..5F198608-198808

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20020iSV21,VZV20..5F198608-198808

31357BROD, OVER CENTER ADJUSTING

main31357-32020iSV21,VZV20..5F198608-198808

31357CBUSH(FOR OVER CENTER ADJUSTING ROD)

main90386-10019iSV21,VZV20..5F198608-198808

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-40015iSV21,25,VZV20..5F198608-198808

31418HOSE, CLUTCH

main90931-01035iVZV20..5F198608-198808

main90931-01047iSV21,25,VZV20..5F..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198808-198808

main96816-50395iSV2#..5F198608-198808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iCV20,SV2#,VZV20..5F198608-198808

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iCV20,SV2#,VZV20..5F198608-198808

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-32050iCV20,SV2#,VZV20..5F198608-198711

main31481-32100iVZV20..5F198801-198808

main31481-32110iCV20,SV2#..5F198711-198808

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-32030iSV21..5F..GT;CV20,SV20..5F198608-198808

main31482-32040iSV21,25,VZV20..5F..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198808

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

main31484-32060iCV20,SV2#,VZV20..5F198608-198808

31484CBRACKET, CLUTCH TUBE, NO.1

main31484-20320iSV25,VZV20..5F198704-198808

main31484-32050iCV20,SV20,21..5F198608-198808

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31484-32070iCV20,SV2#,VZV20..5F198608-198710

main31484-32080iSV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198808-198808

9020108267

main90201-08267

9046106055

main90461-06055

9046816142

main90468-16142

9161160612

main91611-60612

9161160816

main91611-60816

9165560820

main91655-60820

9411040800

main94110-40800

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9454101000

main94541-01000

9461111001

main94611-11001

9616000800

main96160-00800

9699110080

main96991-10080

37 parts on this diagram · 3 diagrams in section
