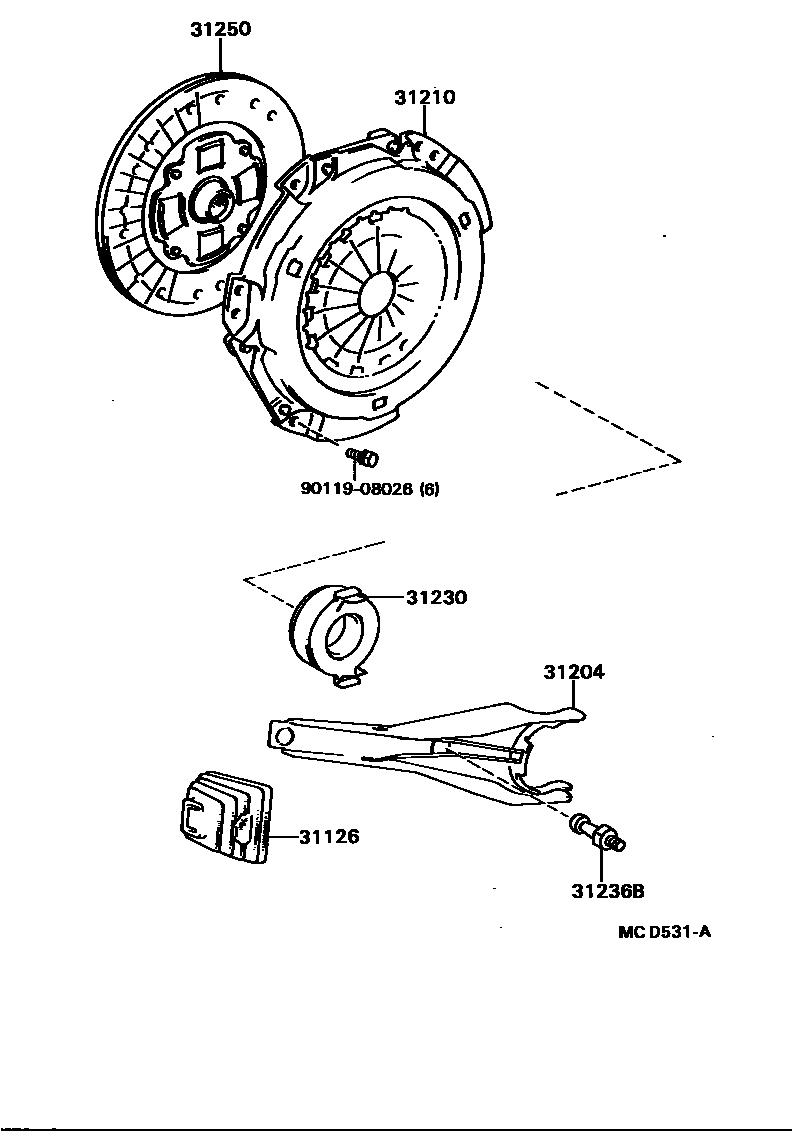

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iCV20,SV2#,VZV20..5F198608-198710

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iVZV20..5F198704-198710

main31204-32010iCV20,SV2#..5F198608-198710

31210COVER ASSY, CLUTCH

main31210-32030iSV20..5F198608-198712

main31210-32060iCV20..5F198608-198712

main31210-32061iCV20..5F198712-198808

sub31210-32062

main31210-32070iSV21,VZV20..5F198608-198712

main31210-32071iSV21,VZV20..5F198712-198808

sub31210-32072

main31210-32100iSV25198710-198808

sub31210-32101

main31210-32120iSV20..5F198712-198808

sub31210-32121

31230BEARING ASSY, CLUTCH RELEASE

main31230-20160iVZV20..5F198704-198710

main31230-20170iSV25,VZV20..5F198710-198808

main31230-32020iCV20,SV2#..5F198608-198710

sub31230-32100

31236BSUPPORT, RELEASE FORK

main31236-20060iVZV20..5F198704-198710

main31236-30030iCV20,SV2#..5F198608-198710

31250DISC ASSY, CLUTCH

main31250-20140iSV25198710-198808

sub31250-20141

main31250-32024iSV20..5F198608-198609

main31250-32025iSV20..5F198609-198712

main31250-32026iSV20..5F198712-198808

sub31250-32027

main31250-32041iSV21..5F198608-198808

sub31250-32042

main31250-32060iCV20..5F198608-198712

main31250-32061iCV20..5F198712-198808

sub31250-32051

main31250-32070iVZV20..5F198704-198808

sub31250-32110

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
