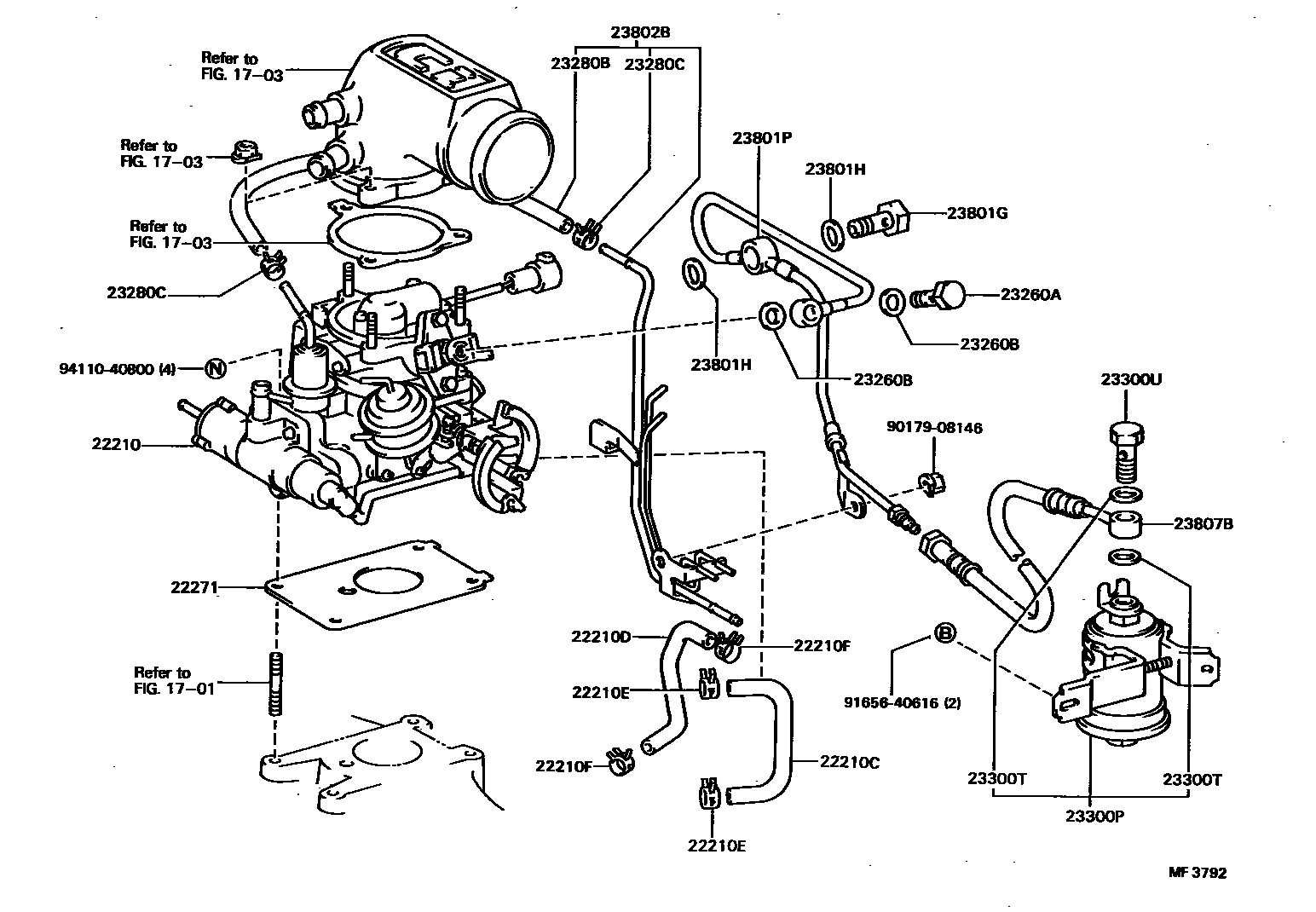

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

1703

22210BODY ASSY, THROTTLE

main22200-63070i1SI..SV20198608-198807

sub22200-63071

main22200-63071i1SI..SV20198807-198808

main22210-62010i1VZFE..VZV20198704-198808

main22210-74110i3SGE..SV21198608-198808

main22210-74190i3SFE..SV21..5F198608-198808

main22210-74201i3SFE..SV21..4FC198608-198808

22210CHOSE, WATER BY-PASS, NO.1

main16264-63030i1SI..SV20198608-198808

main16264-88360i3SGE..SV21198608-198808

main16282-74030i3SFE..SV21,25198712-198808

sub16283-74010

main99556-10280i3SFE..SV21,25198608-198712

sub99556-10300

22210DHOSE, WATER BY-PASS, NO.2

main16267-63020i1SI..SV20198608-198808

main16267-88360i3SGE..SV21198608-198808

main16282-74020i3SFE..SV21,25198712-198808

sub16282-74050

main99556-10230i3SFE..SV21198608-198712

sub99556-10300

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001i1SI,3S#..SV2#198608-198808

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13001i1SI,3S#..SV2#198608-198808

sub96135-51300

22271GASKET, THROTTLE BODY

main22271-62010i1VZFE..VZV20198704-198802

sub22271-62020

main22271-62020i1VZFE..VZV20198802-198808

sub22271-62030

main22271-63010i1SI..SV20198608-198808

sub22271-63011

main22271-74020i3SFE..SV21,25198608-198808

sub22271-74021

main22271-88360i3SGE..SV21198608-198808

23260INJECTOR ASSY, COLD START FUEL

main23260-69015i1VZFE..VZV20198704-198808

main23260-79055i1SI..SV20198608-198808

main23260-79065i3SGE..SV21198608-198808

main23260-79105i3SFE..SV21198608-198808

23260ABOLT, UNION

main90401-08003i1SI..SV20198704-198808

main90401-08004i1SI..SV20198608-198704

23260BGASKET

main90430-08009i1SI..SV20198608-198808

sub90430-08014

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62010i1VZFE..VZV20198704-198802

sub23280-62020

main23280-62020i1VZFE..VZV20198802-198808

main23280-63010i1SI..SV20198608-198808

main23280-74020i3SGE..SV21198608-198808

main23280-74030i3SFE..SV21198608-198708

main23280-74031i3SFE..SV21198708-198808

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main90447-12051i3SGE..SV21198608-198808

main95332-06030i1SI..SV20198608-198701

sub95333-06030

main95333-06030i1SI..SV20198710-198808

sub95338-06030

main95333-06030i1SI..SV20198701-198710

sub95338-06030

23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

main90467-11009i1SI,3SGE..SV2#198608-198802

sub96135-51100

main90467-11049i1SI,3SGE..SV20,21198802-198808

sub90467-11009

23300PFILTER, FUEL(FOR EFI)

main23030-79025i1SI,3S#..SV2#198608-198808

23300TGASKET(FOR FUEL FILTER)

main90430-12005i1VZFE..VZV20198608-198808

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1VZFE..VZV20198608-198808

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i3SGE..SV21198608-198704

*54

main90401-08003i3S#..SV21198704-198808

main90401-08004i3SGE..SV21198608-198704

*53

main90401-12018i1SI..SV20198608-198803

sub90401-12097

main90401-12097i1SI..SV20198803-198808

23801HGASKET(FOR FUEL PIPE)

main90430-08005i3SGE..SV21198608-198808

*54

main90430-08009i3SGE..SV21198608-198808

*53

sub90430-08014

main90430-12005i1SI..SV20198803-198808

main90430-12013i1SI..SV20198608-198803

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-74021i3SFE..SV21198608-198808

main23801-88360i3SGE..SV21198608-198808

main23811-63011i1SI..SV20198608-198808

sub23811-63020

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-62010i1VZFE..VZV20198704-198802

sub23812-62010

main23802-63012i1SI..SV20198608-198808

main23802-74020i3SFE..SV21198608-198708

main23802-74021i3SFE..SV21,25198708-198808

sub23802-74022

main23802-88361i3SGE..SV21198608-198808

main23812-62010i1VZFE..VZV20198802-198808

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-74030i3SFE..SV21,25198608-198808

main23814-62010i1VZFE..VZV20198704-198802

sub23814-62020

main23814-62020i1VZFE..VZV20198802-198808

main23814-88360i3SGE..SV21198608-198710

*53

sub23814-88361

main23814-88360i3SGE..SV21198710-198808

sub23814-88361

main23814-88361i3SGE..SV21198608-198710

*54

23807BHOSE, FUEL DELIVERY PIPE

main23271-63022i1SI..SV20198608-198804

sub23271-63023

main23271-63023i1SI..SV20198804-198808

main23271-74090i3SFE..SV21,25198608-198808

main90923-01311i3SGE..SV21198710-198807

sub90923-01356

main90923-01330i3SGE..SV21198708-198710

sub90923-01332

main90923-01356i3SGE..SV21198805-198808

sub90923-01378

9017908146

main90179-08146

9165640616

main91656-40616

9411040800

main94110-40800
