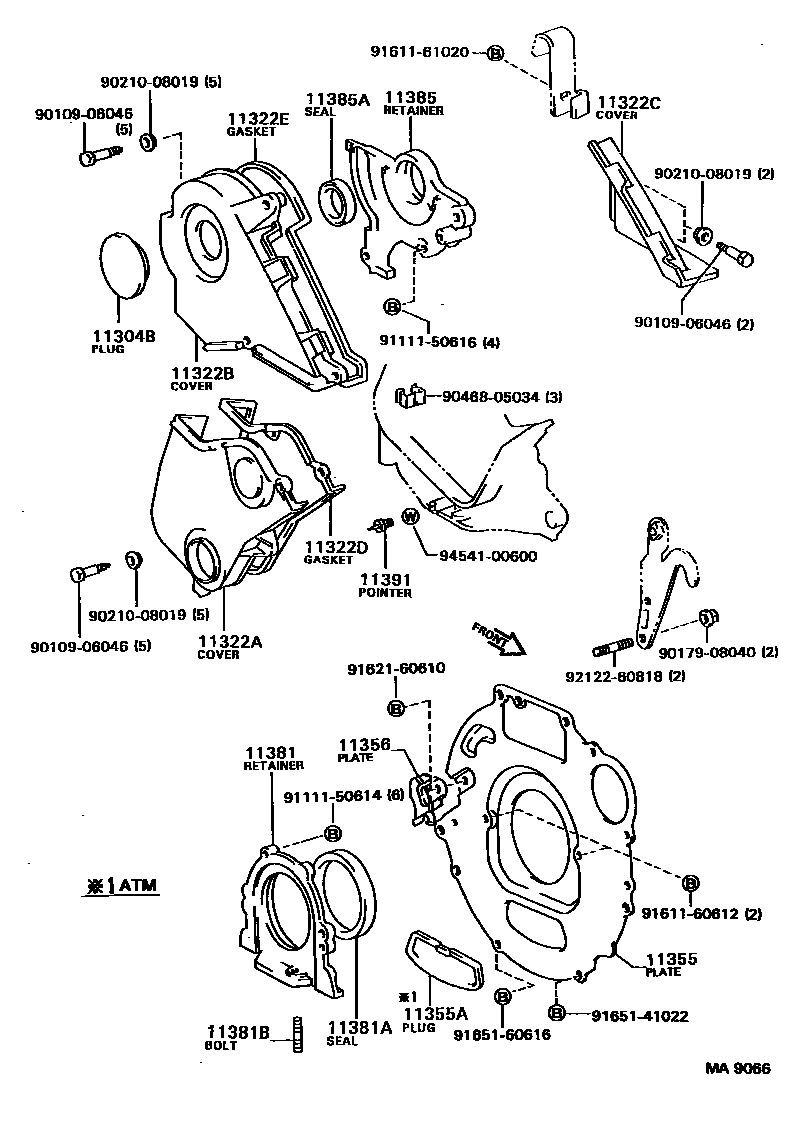

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-62010i1VZFE..VZV20198704-198808

main11303-63010i1SI..SV20198608-198808

main11303-74010i3SFE..SV21,25198608-198808

main11322-88361i3SGE..SV21198608-198808

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01334i1SI..SV20198608-198808

main90950-01357i2CT..CV20198608-198808

main90950-01390i3SFE..SV21198608-198611

OD=76

sub90950-01497

main90950-01489i3SFE..SV21198608-198808

main90950-01497i3SFE..SV21198611-198808

main90950-01554i1VZFE..VZV20198704-198808

sub90950-01497

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2CT..CV20198608-198808

sub11321-64011

11322BCOVER, TIMING BELT, NO.2

main11322-64010i2CT..CV20198608-198808

11322CCOVER, TIMING BELT, NO.3

main11304-62010i1VZFE..VZV20198704-198808

sub11304-62011

main11323-64011i2CT..CV20198608-198808

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2CT..CV20198608-198808

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i2CT..CV20198608-198808

11355PLATE, REAR END

main11355-62010i1VZFE..VZV20198704-198808

main11355-63021i1SI,3SGE..SV20,21198608-198808

main11355-64032i2CT..CV20..5F198608-198808

sub11355-64050

sub11356-64040

main11355-64042i2CT..CV20..4FC198608-198808

sub11355-64060

sub11356-64040

main11355-74010i3SFE..SV21198608-198808

main11355-74040i3SFE..SV25198710-198808

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i2CT..CV20..4FC198608-198808

11356PLATE, REAR END, NO.2

main11356-62010i1VZFE..VZV20198704-198808

main11356-63030i1SI,3S#..SV2#198608-198808

sub11356-63031

main11356-64010i2CT..CV20198608-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i1VZFE..VZV20198704-198808

main11381-63011i1SI,3S#..SV2#198608-198808

sub11381-63012

main11381-64012i2CT..CV20198608-198808

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-85003i1SI,3S#..SV2#198608-198808

sub90311-85006

main90311-90003i2CT..CV20198608-198808

sub90311-90005

main90311-92001i1VZFE..VZV20198704-198808

sub90311-92005

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06033i2CT..CV20198608-198808

11385RETAINER, CAMSHAFT OIL SEAL

main11382-63010i1SI..SV20198608-198808

main11382-64011i2CT..CV20198608-198808

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i3SGE..SV21198608-198808

sub90311-35022

main90311-38017i1SI..SV20198608-198808

sub90311-38046

main90311-38025i2CT..CV20198608-198808

11391POINTER, TIMING

main11391-64020i2CT..CV20198608-198808

9010906046

main90109-06046

9017908040

main90179-08040

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161161020

main91611-61020

9162160610

main91621-60610

9165141022

main91651-41022

9165160616

main91651-60616

9212260818

main92122-60818

9454100600

main94541-00600

29 parts on this diagram · 5 diagrams in section
