SHORT BLOCK ASSEMBLY

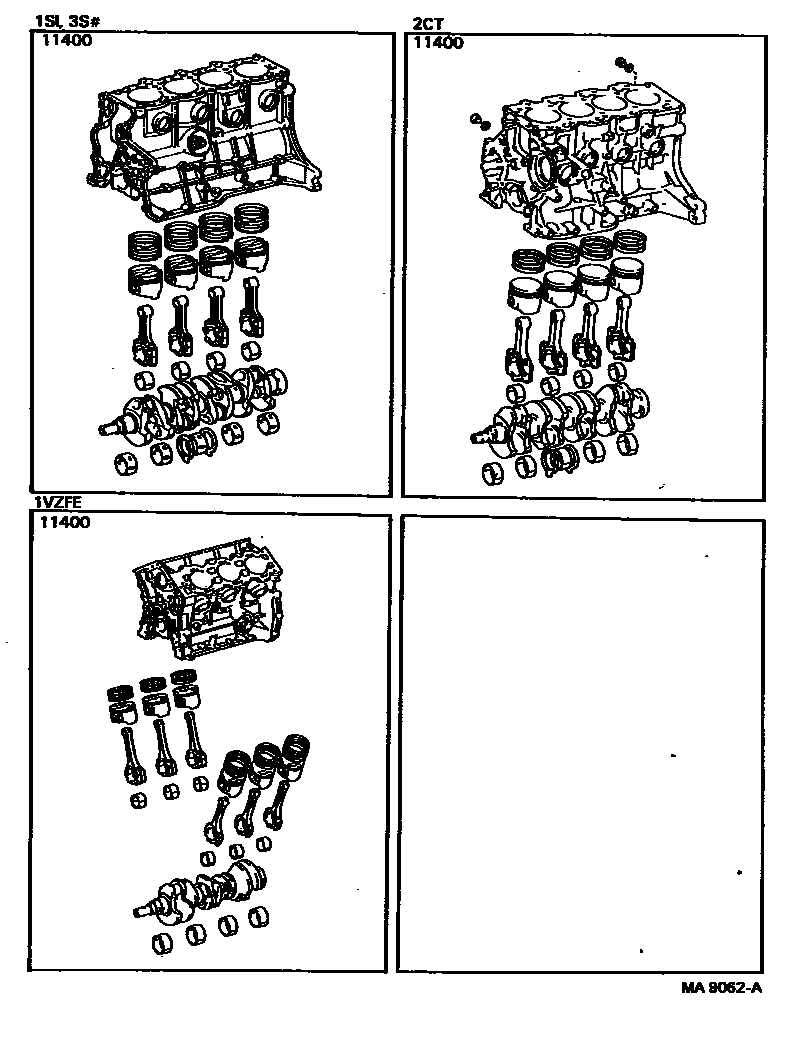

Parts diagram
11400BLOCK ASSY, SHORT
main11400-62010i198704-198808
sub11400-62040
main11400-63011i198608-198710
main11400-63012i198710-198808
main11400-64220i198608-198808
sub11400-64221
sub11115-64122
main11400-74050i198608-198808
sub11400-74055
sub90915-03001
main11400-74070i198710-198808
sub11400-74074
main11400-88360i198608-198808
sub11400-88370
sub11381-63011
sub12101-74022

1 parts on this diagram · 1 diagram in section
