PARTIAL ENGINE ASSEMBLY

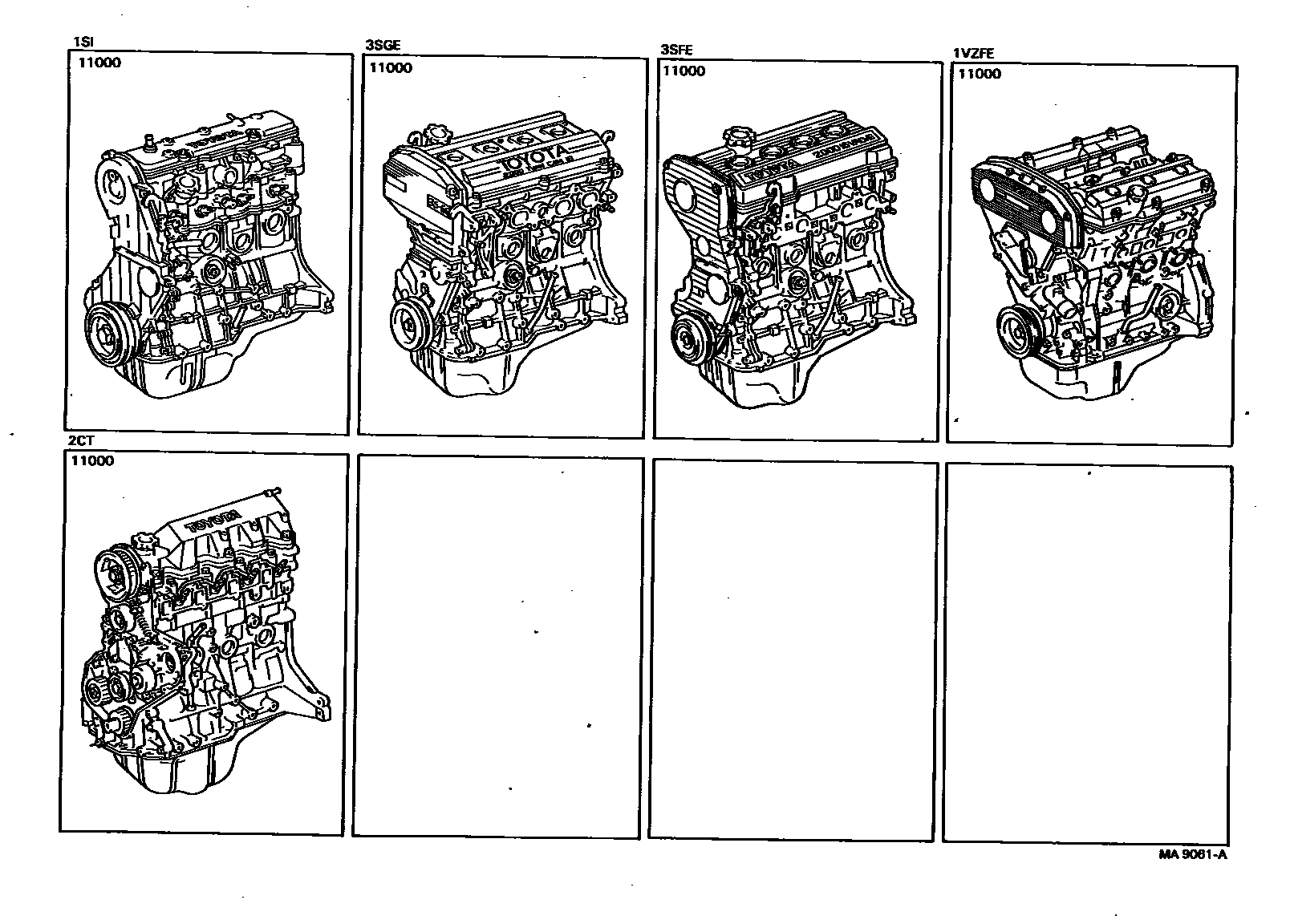

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-62010i198704-198808
main19000-63091i198608-198808
main19000-64360i198608-198808
sub19000-64361
sub90105-16064
sub90560-16025
main19000-74090i198608-198708
main19000-74091i198708-198808
sub19000-74096
sub90915-03001
main19000-74140i198710-198808
main19000-88360i198608-198710
sub16268-74040
main19000-88364i198710-198808
sub19000-88371

1 parts on this diagram · 1 diagram in section
