PARTIAL ENGINE ASSEMBLY

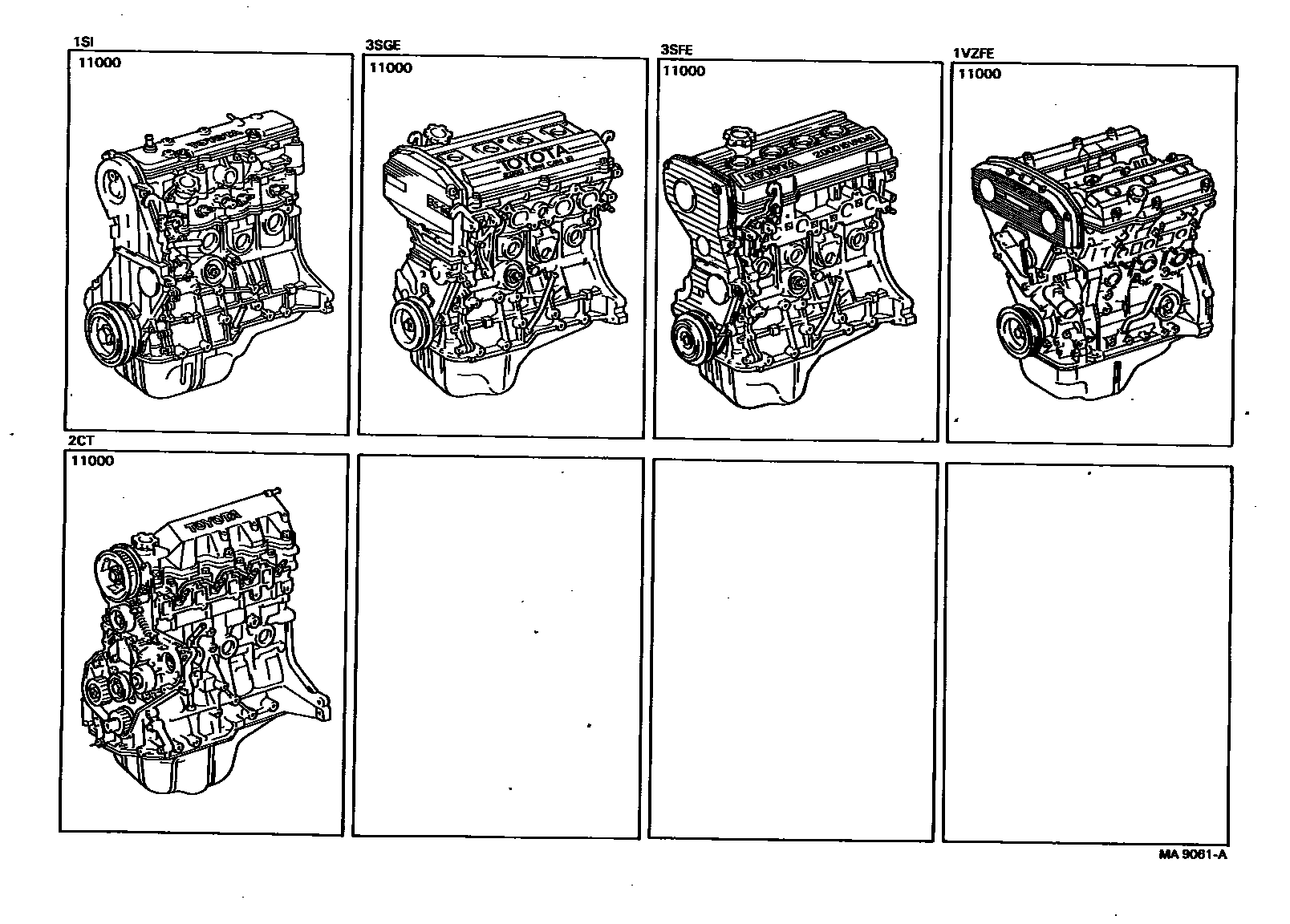

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-62010i198704-198808

main19000-63091i198608-198808

main19000-64360i198608-198808

main19000-74090i198608-198708

main19000-74091i198708-198808

main19000-74140i198710-198808

main19000-88360i198608-198710

main19000-88364i198710-198808

1 parts on this diagram · 1 diagram in section
