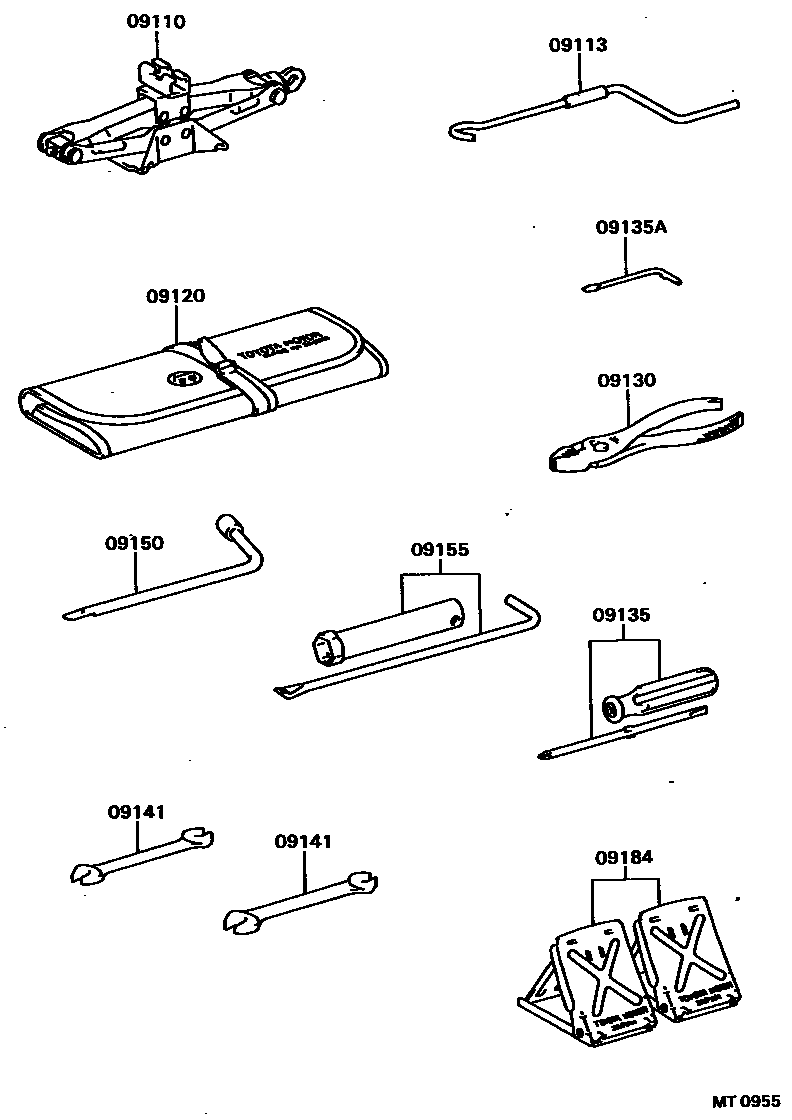

STANDARD TOOL

09110JACK ASSY

main09111-20060iCV20,SV2#,VZV20198608-198808

main09111-20070iSV25198710-198808

sub09111-17020

09113HANDLE, JACK

main09113-32010iCV20,SV2#,VZV20198608-198808

09120BAG, TOOL

main09120-10030iCV20,SV2#,VZV20198608-198808

09130PLIERS

main99913-11500iCV20,SV2#,VZV20198608-198808

09135DRIVER, SCREW

main99915-10700iCV20,SV2#,VZV20198608-198808

09135ABIT, SCREW DRIVER

main09135-00012iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

W/SUN ROOF

main09135-00012iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

09141SPANNER

main99914-10810iCV20,SV2#,VZV20198608-198710

main99914-10810iCV20,SV2#,VZV20198710-198808

main99914-11214iCV20,SV2#,VZV20198608-198710

main99914-11214iCV20,SV2#,VZV20198710-198808

09150WRENCH, HUB NUT BOX

main09150-40010iCV20,SV2#,VZV20198608-198808

09155WRENCH, SPARK PLUG

main09155-32020iSV21..GT198608-198808

sub09155-74010

main09155-41010iSV20198608-198808

main09155-74010iVZV20198608-198808

09184STOPPER, WHEEL

main09184-00010iCV20,SV2#,VZV20198608-198808

10 parts on this diagram · 1 diagram in section
