HEATING & AIR CONDITIONING - COMPRESSOR

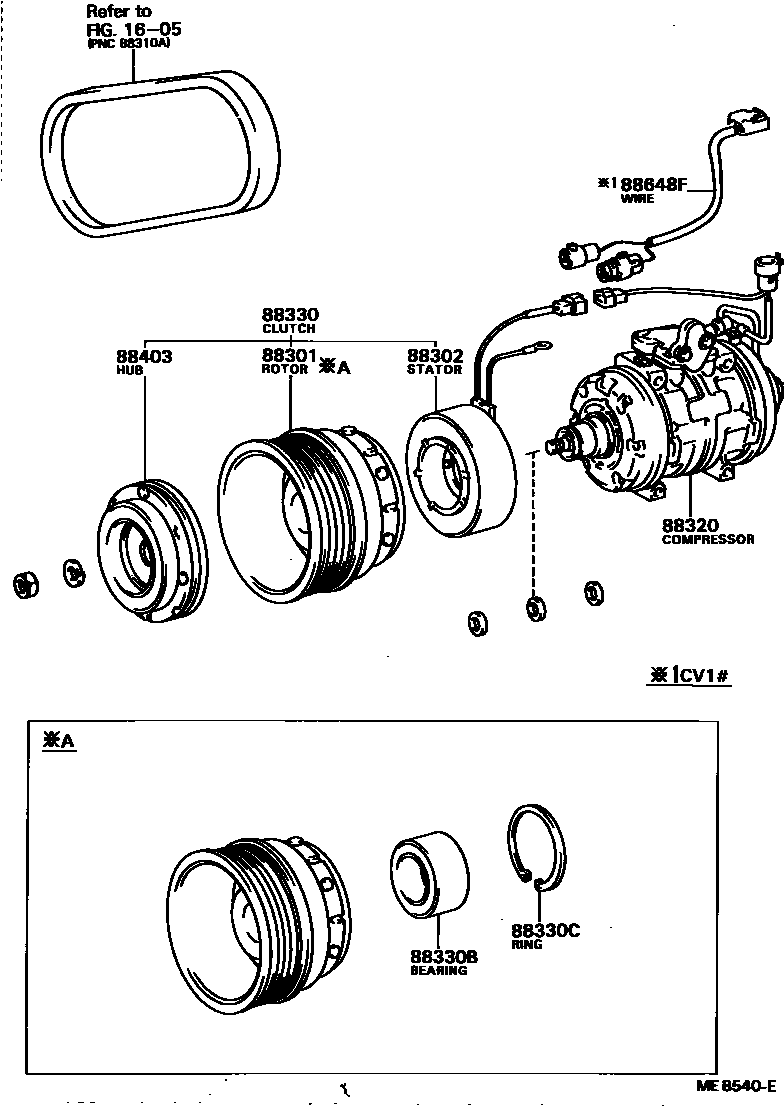

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32010i198203-198607

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32010i198203-198607

88320COMPRESSOR ASSY, COOLER

main88320-32010i198203-198412

main88320-32050i198412-198607

88330CLUTCH ASSY, MAGNET

main88410-32010i198203-198607

88330BBEARING, MAGNET CLUTCH

main90099-10133i198203-198607

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07118i198203-198607

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030i198203-198607

88648FWIRE, MAGNET CLUTCH

main88648-32040i198308-198607

9 parts on this diagram · 2 diagrams in section
