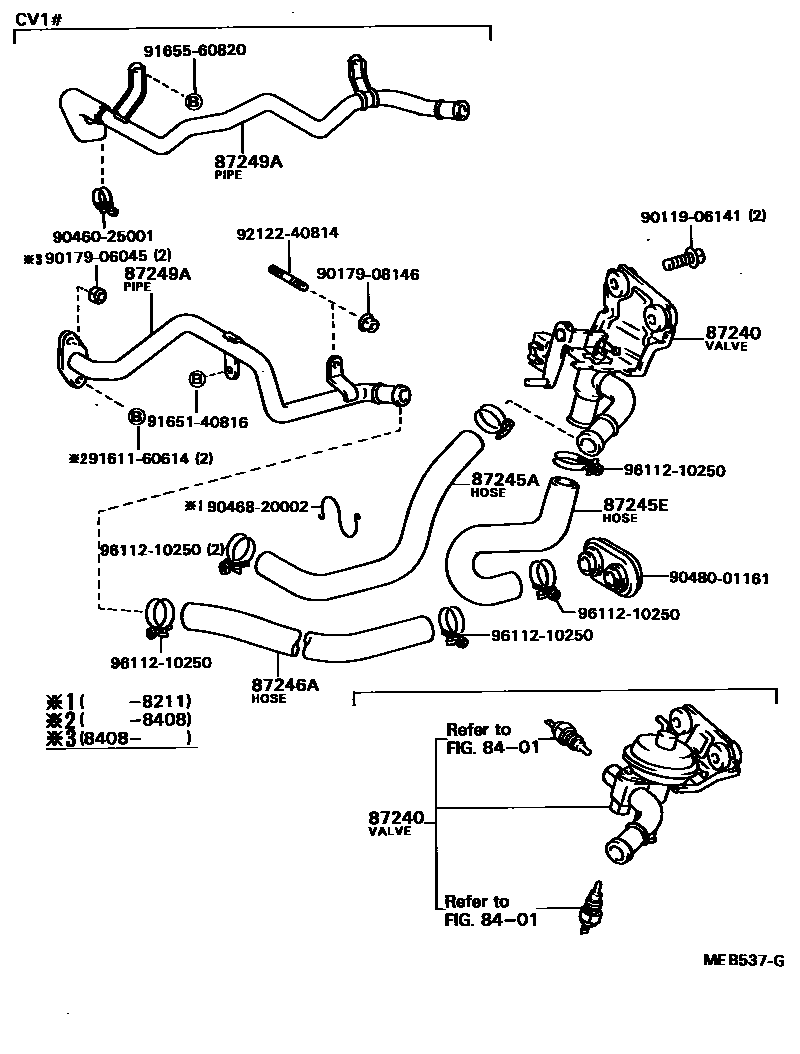

HEATING & AIR CONDITIONING - WATER PIPING

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87240VALVE ASSY, HEATER WATER

main87240-32010iCV1#,SV1#198203-198607

main88670-32010iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

W/AUTOMATIC AIR CONDITIONER

main88670-32030iCV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX198406-198607

W/AUTOMATIC AIR CONDITIONER

87245AHOSE, HEATER WATER, INLET A

main87245-32060iCV1#,SV12198308-198607

main99552-30700iSV1#198203-198306

*H,L=520

main99556-30520iSV10,11198306-198607

87245EHOSE, HEATER WATER, INLET E

main87245-32010iCV1#,SV1#198203-198607

87246AHOSE, HEATER WATER, OUTLET A

main87245-32050iCV1#198308-198607

main87245-32070iSV12198408-198607

main99552-30500iSV1#198203-198406

main99556-30400iSV1#198406-198408

87249APIPE, HEATER WATER OUTLET, A

main87208-20170iSV11198305-198607

main87208-20180iSV10198406-198607

main87208-32011iSV10198203-198304

main87208-32020iSV11198208-198305

main87209-12390iCV10198308-198508

main87209-12420iCV11198508-198607

9011906141

main90119-06141

9017906045

main90179-06045

9017908146

main90179-08146

9046025001

main90460-25001

9046820002

main90468-20002

9048001161

main90480-01161

9161160614

main91611-60614

9165140816

main91651-40816

9165560820

main91655-60820

9212240814

main92122-40814

9611210250

main96112-10250

17 parts on this diagram · 1 diagram in section
