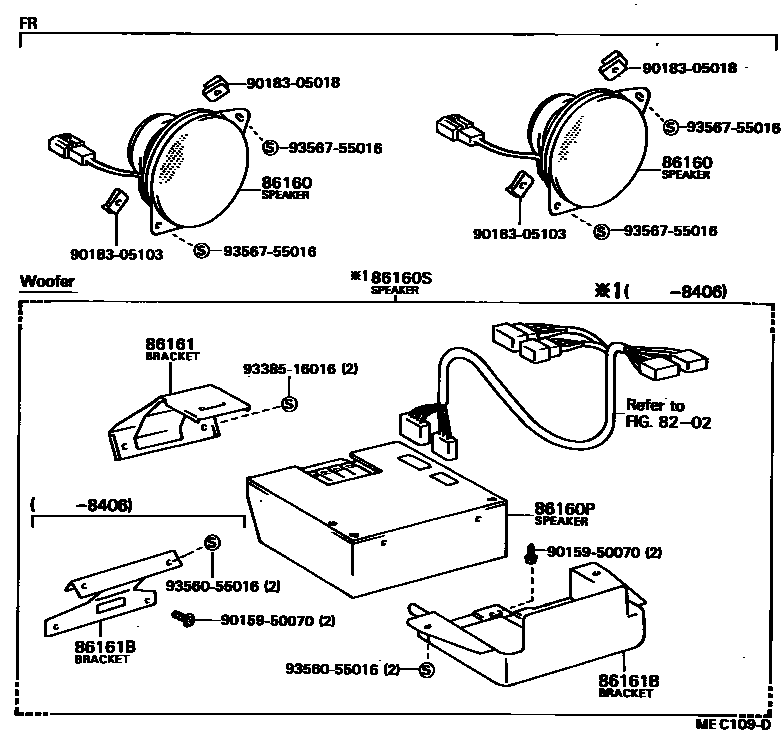

SPEAKER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-12170×2iCV1#,SV1#198406-198607

TEN

main86160-20230×2iCV1#,SV1#198406-198607

MATSUSHITA

main86160-32070×2iCV10,SV1#198203-198406

TEN

main86160-32080×2iCV10,SV1#198203-198406

MATSUSHITA

86160PSPEAKER ASSY, FRONT NO.2

main86150-32010iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

1-AMPLIFIER

main86150-32011iSV1#..VR,VX,ZE,ZX198406-198412

1-AMPLIFIER

main86150-32020iSV1#..VX,ZX198203-198406

5-AMPLIFIER

main86150-32021iSV1#..VR,VX,ZE,ZX198406-198412

5-AMPLIFIER

86160SSPEAKER SET

main86150-39015iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

1-AMPLIFIER

main86150-39025iSV1#..VX,ZX198203-198406

5-AMPLIFIER

86161BRACKET, SPEAKER, FRONT NO.1

main86219-32010iSV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX198203-198412

86161BBRACKET, SPEAKER, FRONT NO.2

main86219-32020iCV10,SV1#..SE,VE,VF,VX,XE,ZX198203-198406

main86219-32050iSV1#..VR,VX,ZE,ZX198406-198412

9015950070

main90159-50070

9018305018

main90183-05018

9018305103

main90183-05103

9338516016

main93385-16016

9356055016

main93560-55016

9356755016

main93567-55016

12 parts on this diagram · 2 diagrams in section
