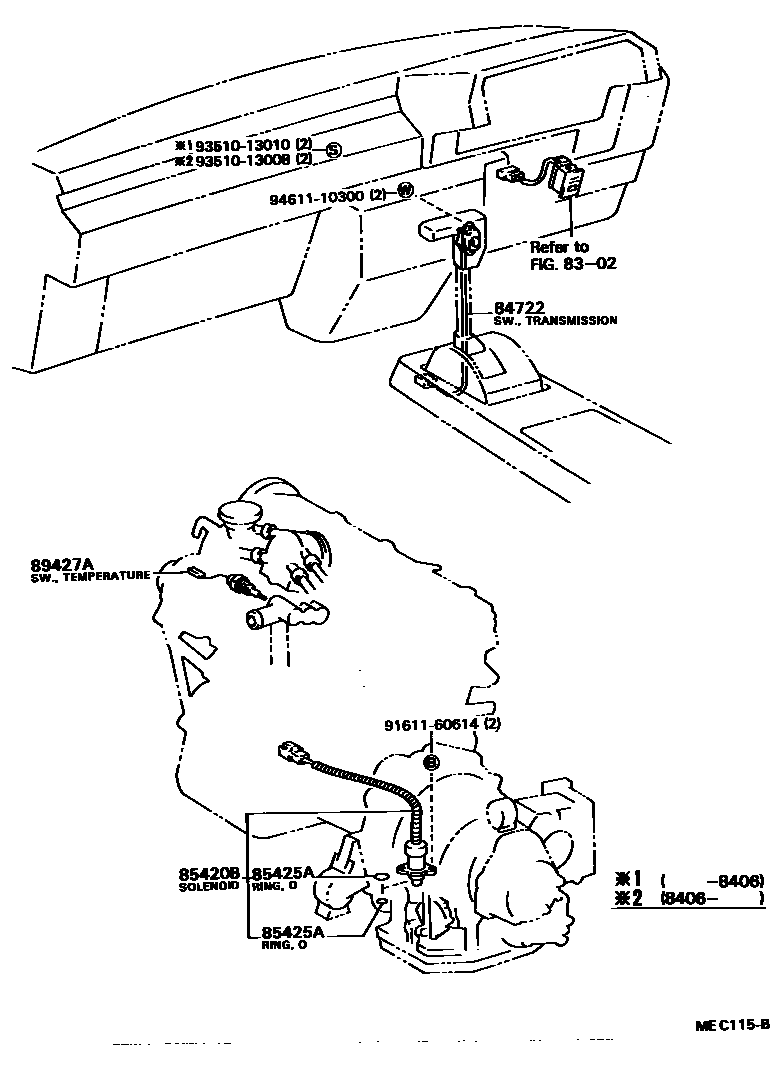

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302INDICATOR

→ Go to FIG 83-02

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iCV1#,SV10..4FC198406-198607

SHADOW GRAY,GRAY,TRIM1#

main84722-20040-04iCV1#,SV10..4FC198406-198607

BLUE,BLUE,TRIM8#

main84722-20040-05iCV1#,SV10..4FC198408-198607

BEIGE,BEIGE,TRIM4#

main84722-32010iCV10,SV10..4FC198207-198406

85420BSOLENOID ASSY, TRANSMISSION

main85420-32010iCV1#,SV10..4FC198207-198605

main85420-32011iCV11,SV10..4FC198605-198607

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iCV11,SV10..4FC198605-198607

ID=7

main96721-19007iCV1#,SV10..4FC198207-198605

ID=7

main96721-19017iCV1#,SV10..4FC198207-198607

ID=17

89427ASWITCH, TEMPERATURE

main89427-32010iSV10..4FC198207-198607

9161160614

main91611-60614

9351013008

main93510-13008

9351013010

main93510-13010

9461110300

main94611-10300

9 parts on this diagram · 1 diagram in section
