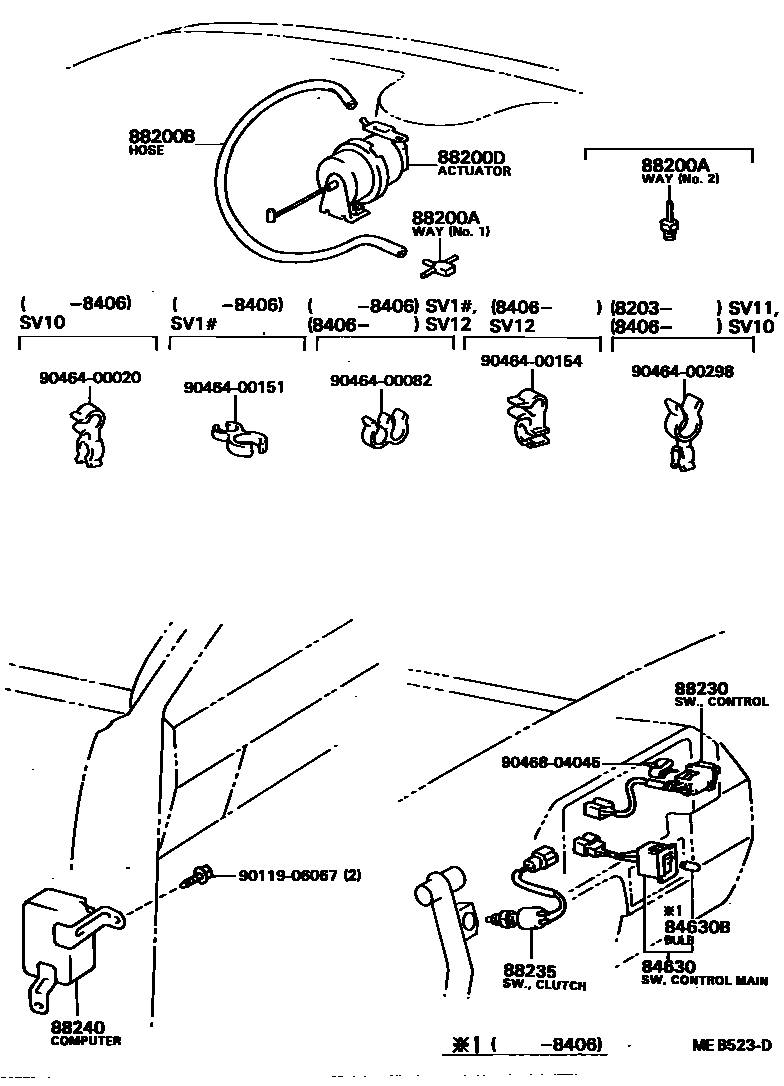

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-32010iSV1#..VX,ZX198203-198406

main84630-32030iSV1#..VR,VX,ZE,ZX198406-198607

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10110iSV1#..VX,ZX198203-198406

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iSV10..VR,ZE198406-198607

NO.2

main90413-04005iSV12..VX,ZX198406-198607

NO.1

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19960iSV1#..VX,ZX198203-198304

main95411-19995iSV1#..VR,VX,ZE,ZX198304-198607

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32010iSV1#..VX,ZX198203-198406

main88200-32030iSV1#..VR,VX,ZE,ZX198406-198607

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-32010-01iSV1#..VX,ZX198203-198305

BLACK,BLACK,TRIM1#,8#

main88230-32010-03iSV1#..VX,ZX198305-198406

DARK GRAY,GRAY,TRIM1#

main88230-32010-04iSV1#..VX,ZX198305-198406

BLUE,BLUE,TRIM8#

main88230-32010-06iSV1#..VX,ZX198203-198305

DEEP BROWN,BROWN,TRIM4#

main88230-32010-16iSV1#..VX,ZX198305-198406

DARK BROWN,BROWN,TRIM4#

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iSV1#..5F..(VR,VX,ZE,ZX)198203-198607

88240COMPUTER ASSY, CRUISE CONTROL

main88240-32010iSV1#..VX,ZX198203-198308

main88240-32011iSV1#..VX,ZX198308-198406

main88240-32040iSV1#..VR,VX,ZE,ZX198406-198607

9011906067

main90119-06067

9046400020

main90464-00020

9046400082

main90464-00082

9046400151

main90464-00151

9046400154

main90464-00154

9046400298

main90464-00298

9046804045

main90468-04045

15 parts on this diagram · 1 diagram in section
