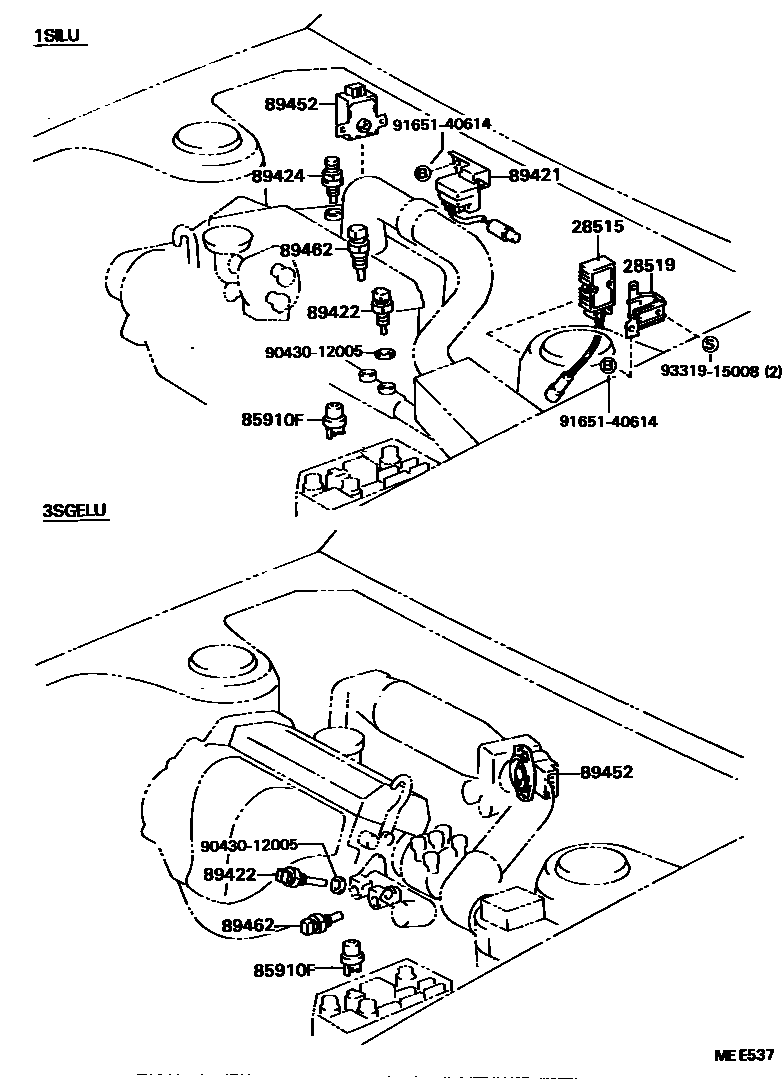

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-52010i2SELU..SV11198208-198607

main28515-63010i1SILU..SV10198406-198607

28519BRACKET, SOLENOID RESISTOR

main28519-32010i2SELU..SV11198208-198406

main28519-63010i1SILU,2SELU..SV10,11198406-198508

main28519-74010i1SILU,2SELU..SV10,11198508-198607

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iSV11198208-198406

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-32010iSV10198406-198607

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iSV11198208-198406

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iSV10198406-198607

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iSV11..5F198208-198607

main89452-20030iSV10198406-198607

main89452-20060iSV12198506-198607

main89452-28010iSV12198406-198506

main89452-32010iSV11..4FC198208-198607

89462SWITCH, START INJECTOR TIME

main89462-30011iSV11198208-198308

main89462-40010iSV1#198406-198607

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section
