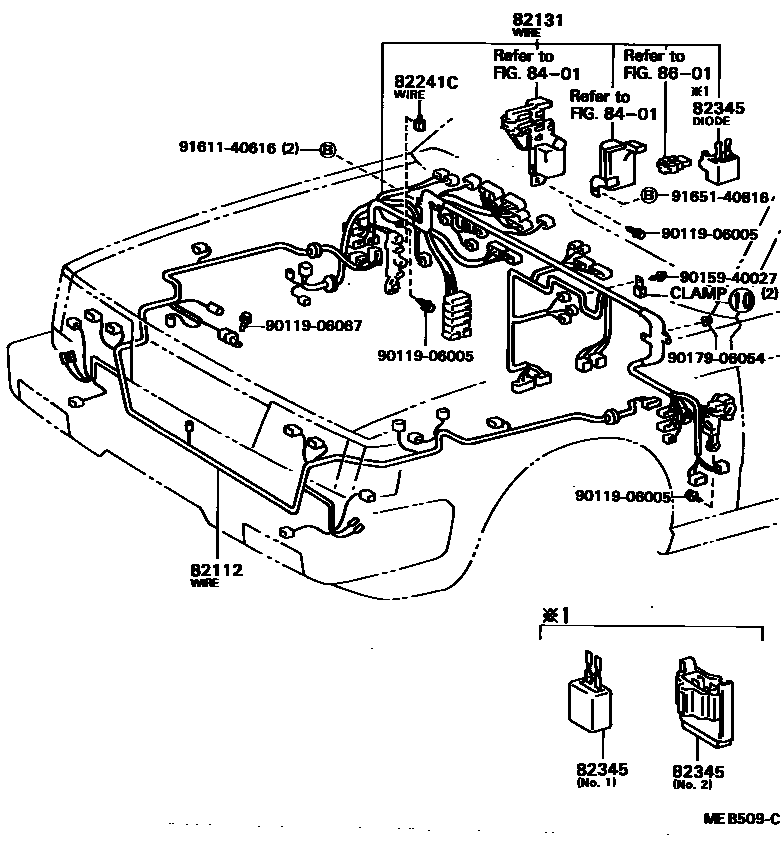

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82112WIRE, ENGINE ROOM, NO.2

main82112-32010iSV1#..VX,ZX198207-198406

W/*AD

main82112-32010iSV10198203-198207

main82112-32100iSV1#198207-198406

main82112-32120iCV10198308-198406

main82112-32160iSV11,12198406-198607

main82112-32170iCV1#198406-198607

main82112-32200iSV11,12..VX,ZX198406-198607

W/*AD

main82112-32280iSV10..LT,VC,VL,XT198406-198607

main82112-32290iSV10..VF,VR,XE,ZE198406-198607

W/FENDER *RCM

82131WIRE, COWL

main82131-32010iSV10..VL,XT198203-198207

main82131-32020iSV10..SE,VE198203-198207

main82131-32030iSV10..SE,VE198203-198207

W/POWER WINDOW OR *SNR

main82131-32040iSV10..VX,ZX198203-198207

W/*AD OR CRUISE PILOT

main82131-32050iSV10..VX198203-198207

main82131-32070iSV10..LT,VC198203-198209

main82131-32071iSV10..LT,VC198209-198406

main82131-32080iSV10..4D..(VL,XT)198207-198209

main82131-32081iSV10..4D..(VL,XT)198209-198305

main82131-32082iSV10..4D..(VL,XT)198305-198406

main82131-32090iSV10..4D..(SE,VE)198207-198209

main82131-32091iSV10..4D..(SE,VE)198209-198305

main82131-32092iSV10..4D..(SE,VE)198305-198406

main82131-32100iSV11..4D..(VL,XT)198208-198305

main82131-32101iSV11..4D..(VL,XT)198305-198406

main82131-32110iSV10..4D..(VX,ZX)198207-198209

main82131-32111iSV10..4D..(VX,ZX)198209-198305

main82131-32112iSV10..4D..(VX,ZX)198305-198406

main82131-32160iSV11..4D..(SE,VE)198208-198305

main82131-32161iSV11..4D..(SE,VE)198305-198406

main82131-32180iSV11..4D..(VX,ZX)198208-198305

main82131-32181iSV11..4D..(VX,ZX)198305-198406

main82131-32230iSV1#..5D..VL198208-198305

main82131-32231iSV1#..5D..VL198305-198406

main82131-32280iSV1#..5D..VX198208-198305

main82131-32281iSV1#..5D..VX198305-198406

main82131-32290iSV1#..SE,VE,VF,XE198207-198210

W/POWER WINDOW OR *SNR

main82131-32291iSV1#..SE,VE,VF,XE198210-198305

W/POWER WINDOW OR *SNR

main82131-32291iSV1#..SE,XE198301-198303

SALOON

main82131-32292iSV1#..SE,VE,VF,XE198305-198406

W/POWER WINDOW OR *SNR

main82131-32300iSV1#..VX,ZX198207-198210

W/*AD OR CRUISE PILOT

main82131-32301iSV1#..VX,ZX198210-198305

W/*AD OR CRUISE PILOT

main82131-32303iSV1#..VX,ZX198305-198406

W/*AD OR CRUISE PILOT

main82131-32310iSV1#..5D..(VE,VF)198208-198305

main82131-32311iSV1#..5D..(VE,VF)198305-198406

main82131-32320iSV10..XT198210-198303

EXTRA

main82131-32320iSV10..4D..VL198301-198303

SALOON

main82131-32321iSV10..4D..VL198305-198406

EXTRA

main82131-32321iSV10..4D..VL198305-198406

SALOON

main82131-32340iCV10..VL,XT198308-198406

main82131-32350iCV10..SE,VE198308-198406

main82131-32390iSV10..5D..VL198301-198303

SALOON

main82131-32390iSV10..5D..VL198301-198303

EXTRA

main82131-32391iSV11..XT198305-198406

EXTRA

main82131-32391iSV10..5D..VL198305-198406

SALOON

main82131-32480iCV10..VL198308-198406

EXTRA

main82131-32480iCV10..VL198308-198406

SALOON

main82131-32550iSV10..4D..5F..(LT,VC,VL,XT)198406-198607

main82131-32570iSV10..VR,ZE198406-198607

W/*AS & *AD

main82131-32620iSV11,12..VF,VS,XE,XS198406-198408

main82131-32630iSV11,12..VX,ZX198406-198408

W/DIGITAL SPEEDOMETER

main82131-32640iSV11,12..VX,ZX198406-198408

W/*AS & *SNR;W/*AS & *AD;W/*AS & *SMD

main82131-32660iSV10..5D..VL198406-198607

W/TACHOMETER

main82131-32670iSV10..VR,ZE198406-198607

main82131-32680iSV11,12..VX,ZX198406-198408

W/*AS

main82131-32690iCV10..VL198501-198504

EXTRA

main82131-32690iCV10..SE,VE198406-198607

main82131-32700iCV11..5F..(VL,XT)198406-198607

main82131-32710iSV10..VL198501-198504

EXTRA

main82131-32710iSV10..VF,XE198406-198607

main82131-32720iSV10..VR,ZE198406-198412

W/DIGITAL SPEEDOMETER

main82131-32790iSV12..VS,XS198406-198412

W/DIGITAL SPEEDOMETER

main82131-32800iSV11,12..VF,VS,XE,XS198408-198607

main82131-32810iSV11,12..VX,ZX198408-198607

W/DIGITAL SPEEDOMETER

main82131-32820iSV11,12..VX,ZX198408-198607

W/*AS & *SNR;W/*AS & *AD;W/*AS & *SMD

main82131-32830iSV11,12..VX,ZX198408-198607

W/*AS

main82131-32860iCV11..4FC..(VL,XT)198508-198607

main82131-32880iCV11..4FC..(VF,XE)198508-198607

main82131-3H100iSV10..VL198512-198603

GRAND EXTRA

main82131-3H110iCV11..4FC..XT198605-198607

SALOON

main82131-3H110iCV11..4FC..VL198512-198607

GRAND EXTRA

main82131-3H120iCV11..5F..XT198605-198607

SALOON

main82131-3H120iCV11..5F..VL198512-198607

GRAND EXTRA

82241CWIRE, RELAY

main82241-32010iSV10198203-198208

COLD SPEC

main82241-32010iSV1#198208-198209

82345DIODE

main82345-12050iSV10..5F..(VF,VR,XE,ZE)198406-198607

NO.1

main82345-22010iSV11,12198406-198607

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9011906005

main90119-06005

9011906067

main90119-06067

9015940027

main90159-40027

9017906054

main90179-06054

9161140616

main91611-40616

9165140816

main91651-40816

12 parts on this diagram · 9 diagrams in section
