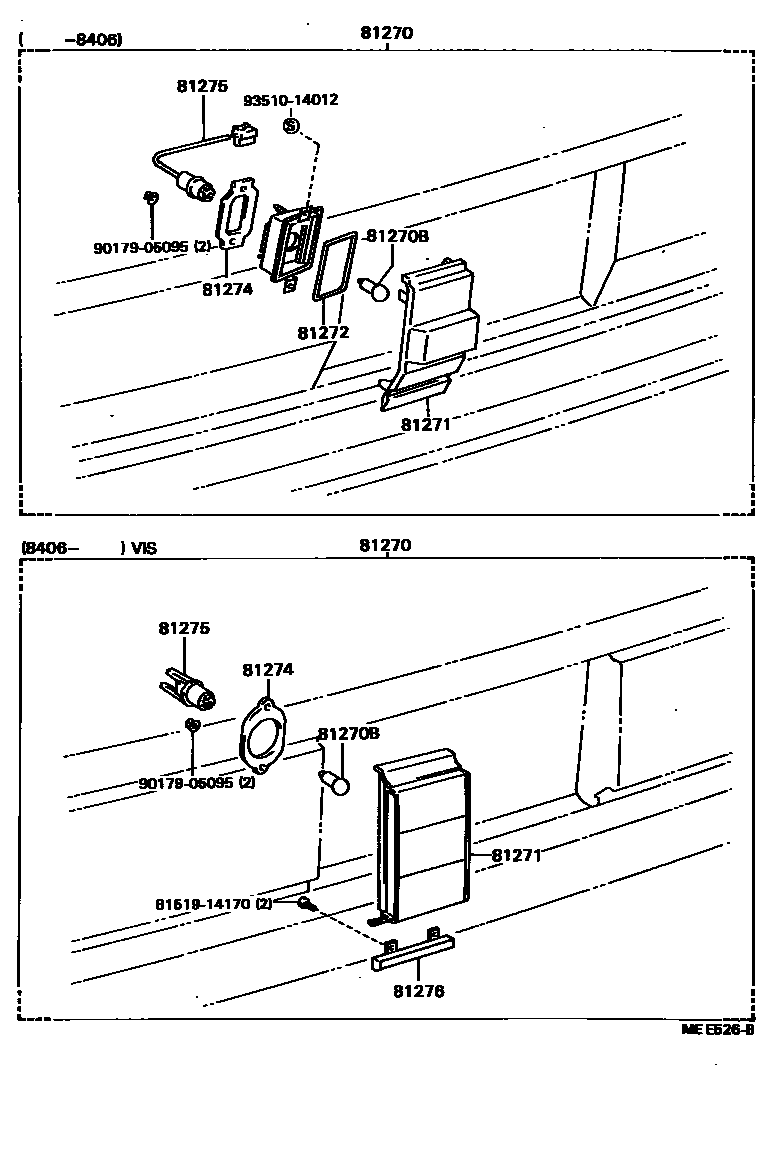

REAR LICENSE PLATE LAMP

0001 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-39315iCV10,SV1#..4D..(VC,VL)198203-198406

RH

main81270-39316iCV1#,SV1#..VIS..4D198406-198607

RH

main81270-39325iCV10,SV1#..4D..(VE,VF,VX)198203-198406

RH

main81270-39335×2iCV10,SV1#..5D198208-198406

main81270-39336×2iCV1#,SV1#..5D198406-198607

main81270-39345iCV10,SV1#..LT,XT198203-198406

RH

main81270-39355iCV10,SV1#..SE,XE,ZX198203-198406

RH

main81690-39025iCV10,SV1#..4D..(VC,VL)198203-198406

LH

main81690-39026iCV1#,SV1#..VIS..4D198406-198607

LH

main81690-39035iCV10,SV1#..4D..(VE,VF,VX)198203-198406

LH

main81690-39045iCV10,SV1#..LT,XT198203-198406

LH

main81690-39055iCV10,SV1#..SE,XE,ZX198203-198406

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iCV10,SV1#198203-198406

81271LENS, LICENSE PLATE LAMP

main81271-14220×2iCV1#,SV1#..5D198406-198607

main81271-16151×2iCV10,SV1#..5D198402-198406

main81271-32010iCV10,SV1#..4D..(VC,VL)198203-198406

RH

main81271-32011iCV1#,SV1#..VIS..4D198406-198607

RH

main81271-32020iCV10,SV1#..4D..(VE,VF,VX)198203-198406

RH

main81271-32030×2iCV10,SV1#..5D198208-198402

main81271-32040iCV10,SV1#..LT,XT198203-198406

RH

main81271-32050iCV10,SV1#..SE,XE,ZX198203-198406

RH

main81691-32010iCV10,SV1#..4D..(VC,VL)198203-198406

LH

main81691-32011iCV1#,SV1#..VIS..4D198406-198607

LH

main81691-32020iCV10,SV1#..4D..(VE,VF,VX)198203-198406

LH

main81691-32040iCV10,SV1#..LT,XT198203-198406

LH

main81691-32050iCV10,SV1#..SE,XE,ZX198203-198406

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iCV1#,SV1#..5D198208-198607

main81272-32010×2iCV10,SV1#..4D198203-198406

81274GASKET, LICENSE PLATE LAMP BODY

main81274-32010×2iCV10,SV1#..4D198203-198406

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12240×2iCV1#,SV1#..VIS..4D198406-198607

main81275-32010×2iCV10,SV1#..4D198203-198406

81276RIM, LICENSE PLATE LAMP

main81276-32011×2iCV1#,SV1#..VIS..4D198406-198607

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

9017905095

main90179-05095

9351014012

main93510-14012

10 parts on this diagram · 2 diagrams in section
